  • Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio
Part #275-092

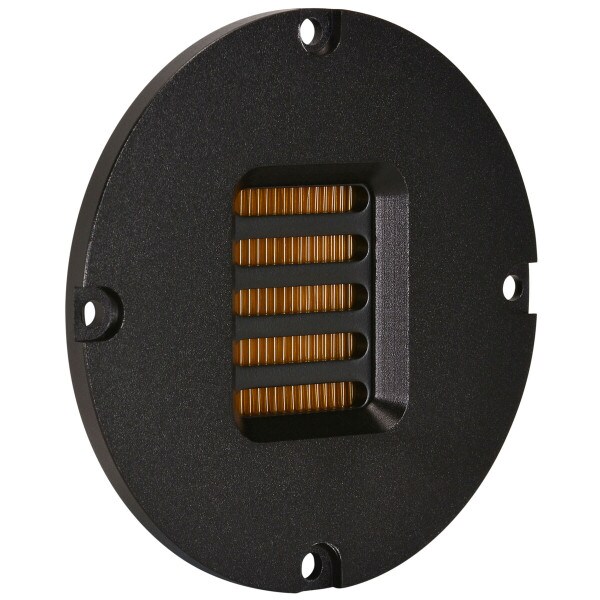

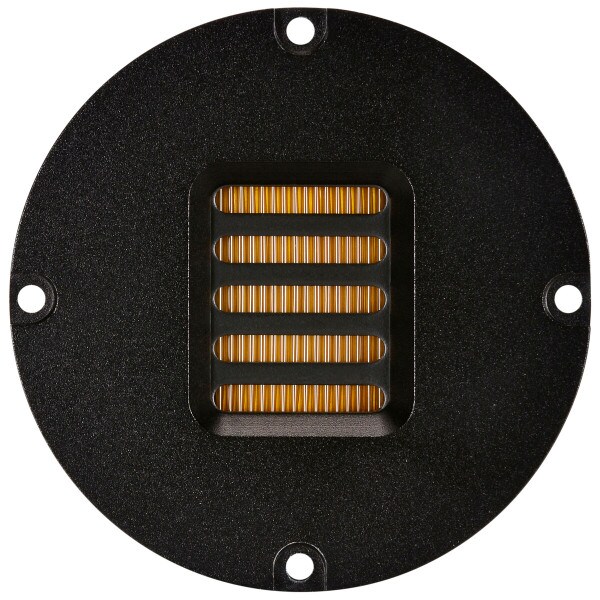

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio
Part #275-092
Model: AMT2-4
The Dayton Audio AMT2-4 Air Motion Transformer tweeter brings clarity, transient speed, and musical finesse to your design. The tweeter's round faceplate flush mounts into baffles easily, and groundbreaking AMT technology enables high output from such a compact driver.
Key Features
  • Advanced Air Motion Transformer design "squeezes" air molecules instead of shoving or crushing them
  • Folded Kapton ribbon diaphragm delivers detailed dynamic output
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Sonically similar to the best metal ribbon and planar tweeters
Your Price: $59.98
MSRP: $103.99
Save $44.01 (42%)
Bulk Pricing
Quantity:Qty: 1-3 $59.98/ea
Quantity:Qty: 4+$54.98/ea
Order in the next 0 hr 0 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

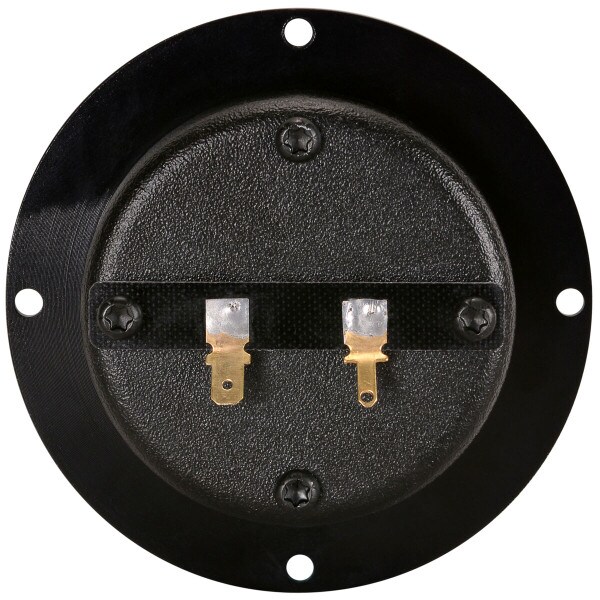

The Dayton Audio AMT2-4 features a round faceplate and compact AMT element, for wide dispersion and overall performance that easily replace dome tweeters in retrofit or new design applications. The sealed rear chamber design of the AMT2-4 eliminates the need for a separate internal chamber in the loudspeaker enclosure.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

Product Details

BrandDayton Audio
ModelAMT2-4
Part Number275-092
UPC848791000621
Unit of MeasureEach
Weight0.75

Product Specifications

Cutout Diameter2.56
Tweeter TypeAMT Air Motion Transformer
Power Handling (RMS)15 Watts
Impedance4Ω
Frequency Response2,500 to 22,000Hz
Sensitivity92.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)2300Hz
DC Resistance (Re)3.5Ω
Mechanical Q (Qms)2.92
Total Q (Qts)2.86

Mounting Information

Overall Outside Diameter3.54"
Depth1.12"
