DS18 ZR12.2D 12" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18
Part #294-8070

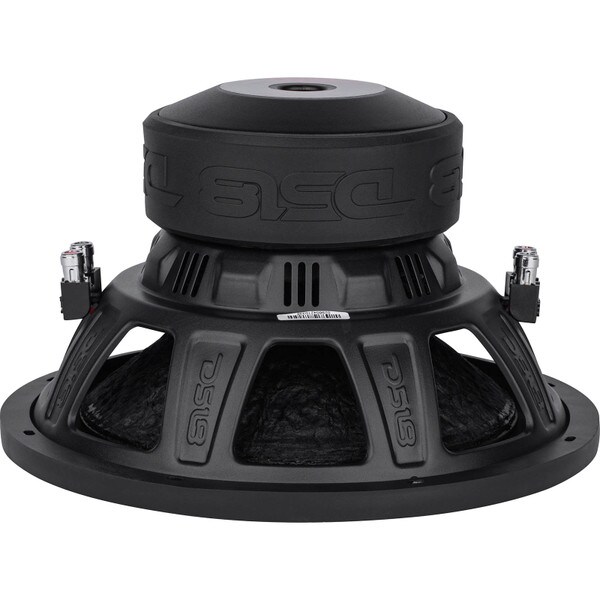

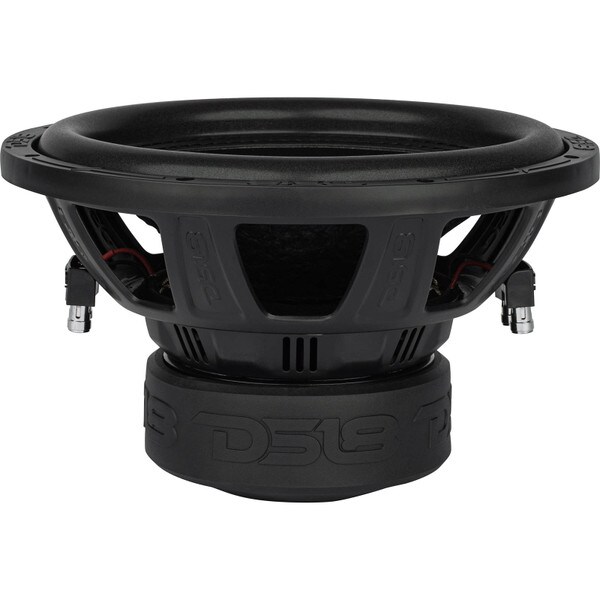

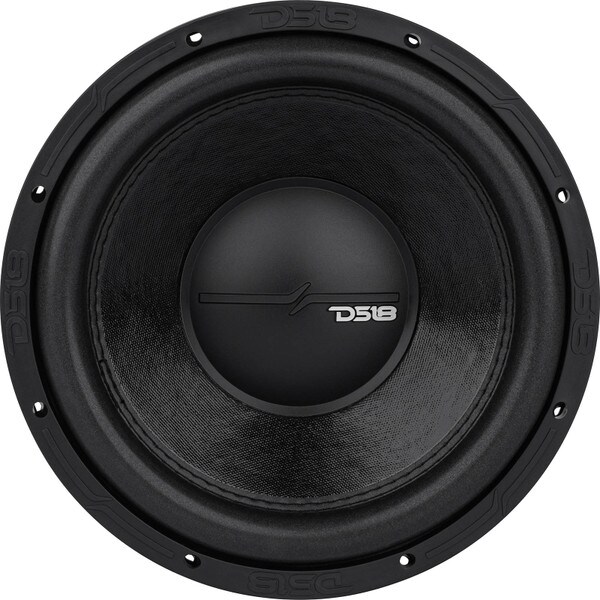

DS18 ZR12.2D 12" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18
Part #294-8070
Model: ZR12.2D
The ZR12.2D 12” Elite-Z dual voice coil subwoofer from DS18 combines high power handling with incredible displacement for excellent output capability. With dual 2-ohm voice coils, this driver gives you multiple wiring option to get the most out of any amplifier. All ZR series subwoofers feature a large foam surround, non-pressed paper cone, extensive venting, and powerful ferrite magnets to deliver clean bass with reliable performance.
Key Features
  • Flexible specifications that are suitable for use in both sealed and vented enclosures
  • Large foam surround ensures keeping great cone control when pushed to its limit
  • 2.5” voice coil on aluminum former to handle up to 750 watts RMS
  • Under spider and pole venting dissipates excess heat for improved power handling and reliability
Similar items that may interest you:
Your Price: $164.95
+ FREE SHIPPING
Bulk Pricing

Out of Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

DS18 ZR12.2D 12" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18’s ZR12.2D 12” Elite-Z dual voice coil subwoofer is built to deliver excellent low frequency performance from an entry level price. With of 25 mm of excursion this driver is capable of ample displacement required to produce deep bass at high SPL. The large foam surround is stitched to the non-pressed paper cone to ensure linear operation and reliability even when pushed to the limit. A 2-1/2” copper voice coil wound on an aluminum former includes extensive venting to dissipate enough heat to safely handle up to 750 watts RMS for incredible output capability. In addition, dual 2-ohm voice coils allow multiple wiring options to ensure you are getting the most out of your amplifier for optimal performance. The ZR12.2D is the perfect subwoofer choice if you are looking for premium performance from a modest budget.

Note: This is a dual voice coil with 2-ohm voice coils. Specs listed below are with the voice coils wired is series for a 4-ohm load.

Product Details

BrandDS18
ModelZR12.2D
Part Number294-8070
UPC663593058751
Unit of MeasureEach
Weight18.5

Product Specifications

Nominal Diameter12"
Speaker Size4"
Power Handling (RMS)750 Watts
Power Handling (MAX)1500 Watts
Impedance
Frequency Response25 to 200Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)26Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.88mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.84
Total Q (Qts)0.71
Compliance Equivalent Volume (Vas)0.75ft³
Mechanical Compliance of Suspension (Cms)0.125mm/N
BL Product (BL)14.5T·m
Diaphragm Mass Inc. Airload (Mms)299.7g
Maximum Linear Excursion (Xmax)25mm
Surface Area of Cone (Sd)345.5cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.44"
Baffle Cutout Diameter11"
Depth7.7"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F329.6Hz
Vented Volume1.88ft³
Vented F321.4Hz
