  • DS18 PRO-ZT6 6-1/2" Professional Water Resistant Coaxial Speaker 4 Ohm

DS18 PRO-ZT6 6-1/2" Professional Water Resistant Coaxial Speaker 4 Ohm

DS18
Part #294-8044

DS18 PRO-ZT6 6-1/2" Professional Water Resistant Coaxial Speaker 4 Ohm

DS18
Part #294-8044
Model: PRO-ZT6
The unique PRO-ZT6 from DS18 combines a high efficiency 6-1/2" midrange with a coaxially mounted bullet tweeter to create a driver that can produce remarkably powerful output from 80 to 22,000 Hz while taking up minimal space. With a water-resistant cone, this driver is a great choice for use on motorcycles and ATVs. The included red metal mesh grill gives the PRO-ZT6 a great look while protecting it from damage.
Key Features
  • 96 dB efficiency for high output capability even with moderately powered systems
  • Handles up to 225 watts RMS to deliver extreme overall SPL
  • Water-resistant treatment makes this driver perfect for use in damp locations
  • Coaxially mounted bullet tweeter ensures accurate and detailed response up to 22,000 Hz

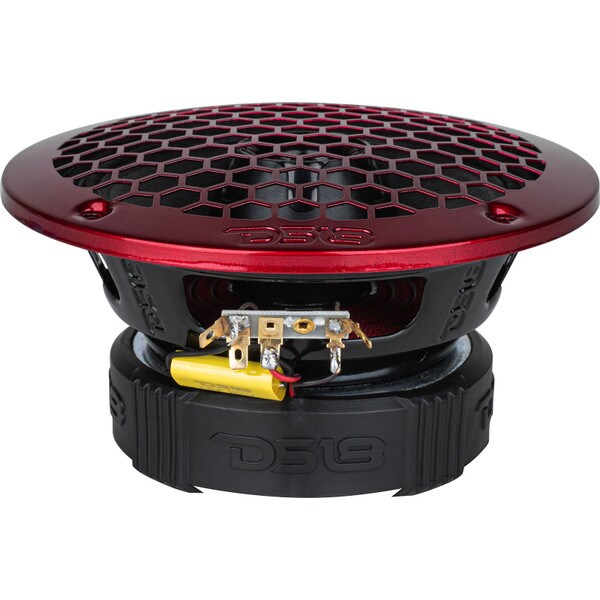

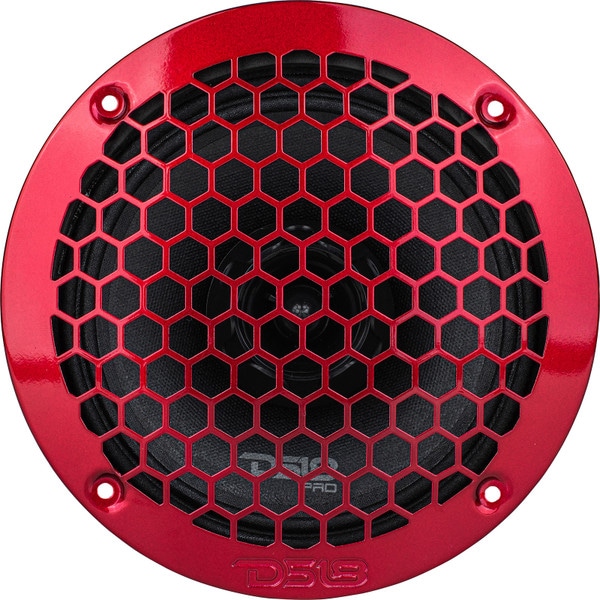

  • Rugged red metal mesh grill looks great and protects driver from foreign objects
Your Price: $79.95
Bulk Pricing
Order in the next 1 hr 56 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 PRO-ZT6 6-1/2" Professional Water Resistant Coaxial Speaker 4 Ohm

Capable of high SPL midrange and high frequency response, DS18's PRO-ZT6 6-1/2" professional water-resistant coaxial speaker is the perfect choice to provide music at levels that can cut through the wind and engine noise from motorcycles or ATVs. The foundation of the PRO-ZT6 is a high efficiency 6-1/2" treated paper cone midrange that has a powerful motor with a non-resonant diaphragm. With a 1-1/2" voice coil on a Kapton former this driver can handle up to 225 watts RMS (with recommended crossover of 120 Hz) for incredible output capability. The high frequencies are handled by a coaxially mounted 1" aluminum bullet tweeter that can put the sound right where you want it thanks to its controlled dispersion. For an extra level of protection, a rugged metal mesh grill is included to keep foreign objects away from any fragile parts. All of this makes the unique PRO-ZT6 an excellent choice when you need high SPL but have limited installation space.

Overall Specifications:
• Nominal diameter: 6-1/2"
• Impeance: 4 ohms
• Power handling: 225 watts RMS/450 watts max
• Sensitivity: 96 dB 1W/1m
• Frequency response: 80-22,000 Hz
• Recommended crossover: 120 Hz high pass

Specifications (midrange):
• Voice coil diameter: 1-1/2"
• Voice coil former: Kapton
• Voice coil wire: CCAW
• Basket material: Steel

Specifications (tweeter):
• Voice coil diameter: 1"
• Voice coil former: Kapton
• Voice coil wire: CCAW
• Diaphragm material: Aluminum alloy
• Magnet: 0.44 oz neodymium

Dimensions:
• Outside diameter: 7"
• Cutout diameter: 5.67"
• Mounting depth: 3.03"
• Overall depth: 3.81"

Product Details

BrandDS18
ModelPRO-ZT6
Part Number294-8044
UPC810005180757
Unit of MeasureEach
Weight5

Product Specifications

Speaker Size6"
Power Handling (RMS)225 Watts
