CLEARANCE Classix II MT Bookshelf Speaker Kit with Baffle Only

Parts Express
Part #300-7110

CLEARANCE Classix II MT Bookshelf Speaker Kit with Baffle Only

Parts Express
Part #300-7110
Model: Classix II
If you desire a small speaker that can put the fun back into music without taking a chunk out of your wallet then look no further than the Classix II speaker kit. Designed by Paul Carmody, this 2-way kit is designed for woodworkers who want an easy way to build a rocking speaker. This kit includes parts to build a single speaker: a pre-cut front baffle, drivers, crossover components, and damping material.
Key Features
  • Compact speaker that can provide a big sound in small to medium sized space
  • CNC cut MDF front baffle, you just build the enclosure
  • Designed and fine-tuned by expert designer Paul Carmody
  • The Classix II is known for its ability to make even bad recordings sound good
60 Day No Hassle Return Policy

Overview

Classix II MT Bookshelf Speaker Kit with Baffle Only

Classix II MT Bookshelf Speaker Kit with Baffle Only

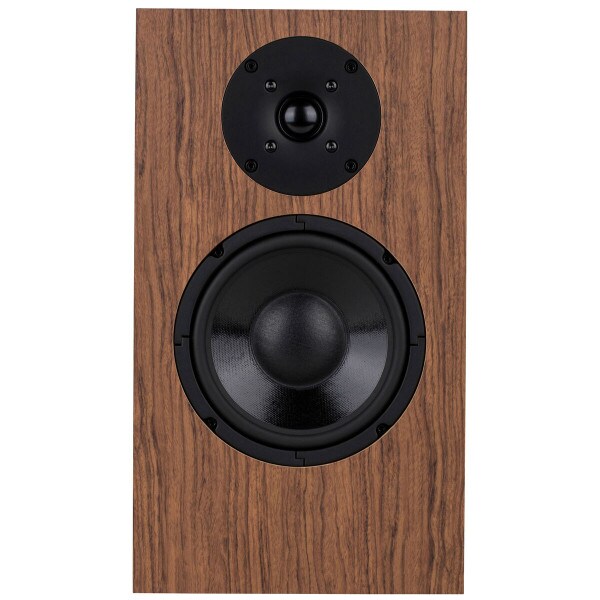

The Classix II kit is a 2-way bookshelf speaker that provides a big sound from a small package. With powerful bass response, relaxed midrange, and natural high end this speaker has the ability to make even poor recordings sound great. This kit includes nearly everything you need to build a top-notch speaker in no time flat, including: a precut baffle, drivers, port, damping material, and crossover components.

Features:

  • Compact speaker that can provide a big sound in small to medium sized space
  • CNC cut MDF front baffle, you just build the enclosure
  • Designed and fine-tuned by expert designer Paul Carmody
  • The Classix II is known for its ability to make even bad recordings sound good

Customer Comments:

"I built a set for my brother and he loves them." - Michael J  ⋆⋆⋆⋆⋆
"Bottom line: If you are looking for a DIY bookshelf speaker kit to enjoy listening to rock, and/or other popular music genres, these are going to be hard to beat and will sound better than most commercial speakers that cost $500/pair." - Ryan C   ⋆⋆⋆⋆⋆
"I would consider myself an amateur audiophile. I have a good ear for quality sound, and I'm very pleasantly surprised by the sound that these speakers put out." -Bradley S  ⋆⋆⋆⋆⋆

Meet the Designer:

Paul Carmody

According to Paul Carmody," I know you'll think I'm kidding, but of all the speaker designs I've done, if I could only keep a handful, these would be near the top of my list…the Classix II have a "euphonic" quality about them. They "gloss over" many of the problematic details of popular music (that an "audiophile" speaker would glare at you with), but at the same time are engineered to be revealing enough that most people would be surprised to hear new things in favorite old recordings."

Customer Projects:

                 The Baffle

This kit is ideal for anyone capable of simple woodworking. The enclosure is very easy to build, you only need to create a 8.5" W x 15" H x 11" D box and attach the baffle. The solid 3/4" MDF baffle is CNC milled to tight tolerances. Recesses for flush mounting the drivers are precut making assembly a snap.

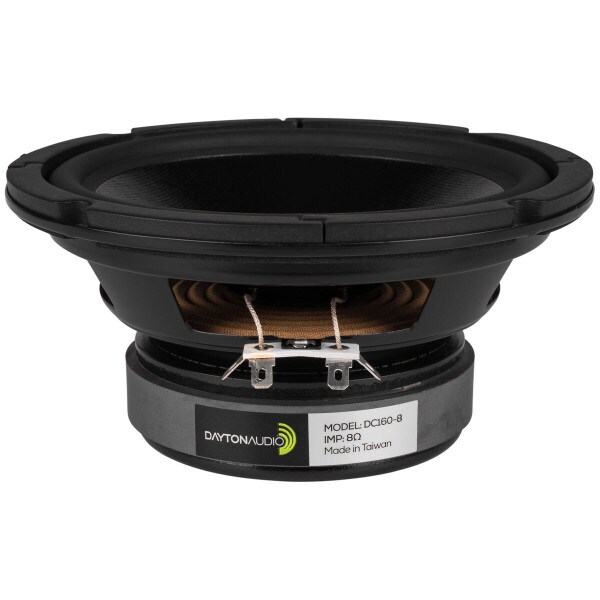

                                                  The Woofer

With the exceptional low frequency ability of the popular Dayton Audio DC160-8 6-1/2" woofer the Classix II delivers plenty of bass for most small to medium sized rooms.

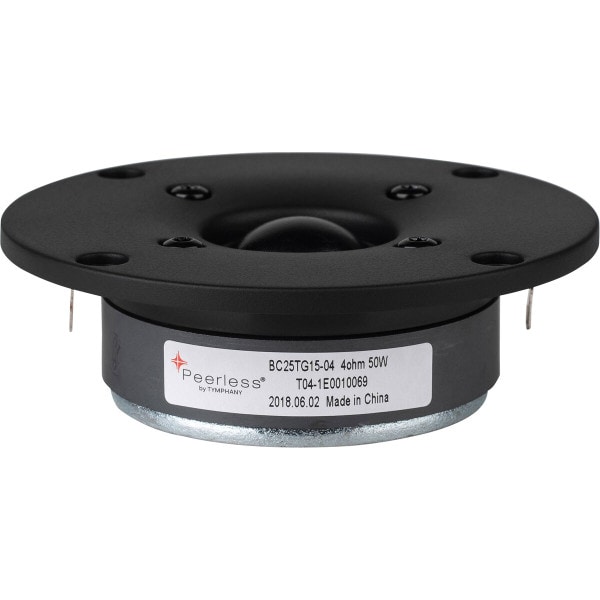

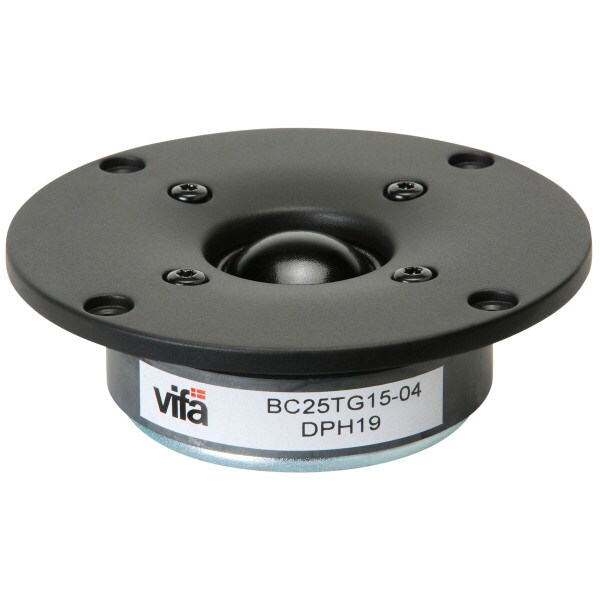

The Tweeter

For the upper frequencies this kit uses the Peerless by Tymphany BC25TG15-4 1" silk dome tweeter which is known for natural, non-fatiguing response making this speaker ideal for long listening sessions.

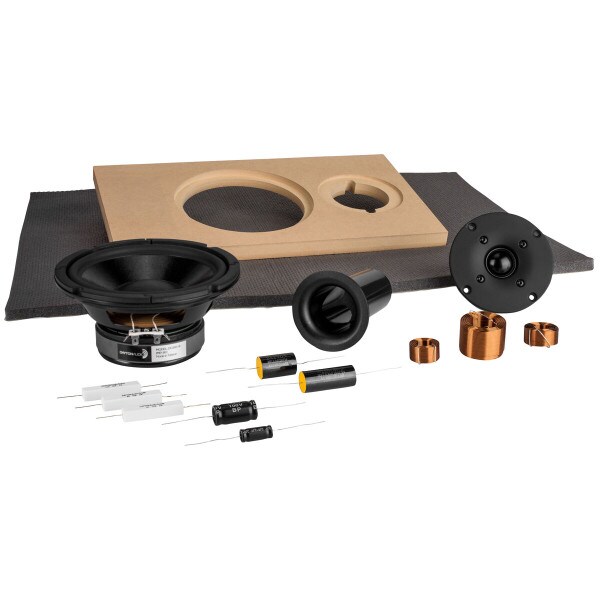

Kit Components:

Part #QTY.Description
027-4241Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor
027-4221Dayton Audio DMPC-4.7 4.7uF 250V Polypropylene Capacitor
027-340110uF 100V Non-Polarized Capacitor
027-3601100uF 100V Non-Polarized Capacitor
255-0261Jantzen 1528 0.25mH 20 AWG Air Core Inductor
255-0361Jantzen 1034 0.50mH 20 AWG Air Core Inductor
255-2541Jantzen 1901 1.2mH 18 AWG Air Core Inductor
004-41Dayton Audio DNR-4.0 4 Ohm 10W Precision Audio Grade Resistor
004-61Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor
004-101Dayton Audio DNR-10.0 10 Ohm 10W Precision Audio Grade Resistor
264-10401Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter
295-3051Dayton Audio DC160-8 6-1/2" Classic Woofer
260-4021Port Tube 1-1/2" ID x 4" L Flared
260-5201Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
-1Classix II Bookshelf Speaker Pre-Cut Baffle

Specifications:

  • Power: 60 watts RMS/100 watts max
  • Frequency response: 35-20,000 Hz
  • Impedance: 8 Ohm
  • Sensitivity: 86 dB 1W/1m
  • Dimensions: 15" H x 8.5" W x 11-3/4" D

Product Details

BrandParts Express
ModelClassix II
Part Number300-7110
UPC848864034669
Weight8.08

Product Specifications

Cabinet Dimensions (HxWxD)15" x 8.5" x 11.75
Cabinet OptionsWithout Cabinet
ColorUnfinished
Configuration2-way
Input Rating8 ohm
Speaker TypeBookshelf
Woofer Diameter6.5"
