Celestion FTX0617 6-1/2" Coaxial Full-Range Professional Driver

Celestion
Part #294-2094

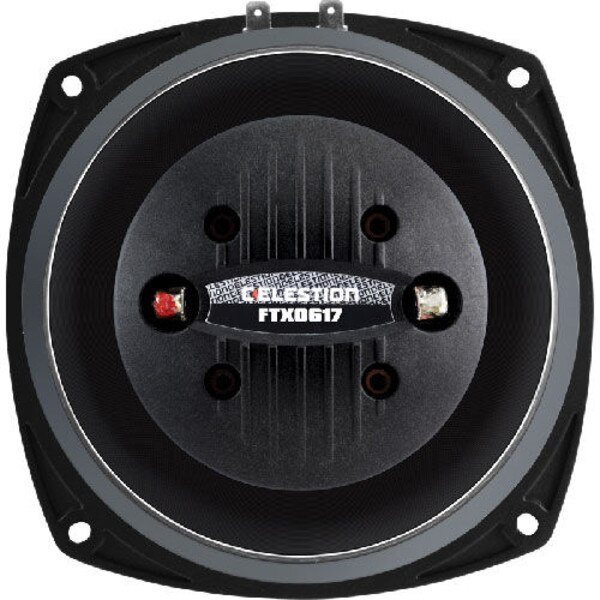

Celestion FTX0617 6-1/2" Coaxial Full-Range Professional Driver

Celestion
Part #294-2094
Model: FTX0617
Celestion's unique FTX0617 coaxial full-range driver uses a single FEA optimized magnet as the common motor for both the 6.5" low frequency and 1.4" compression driver resulting in enhanced coherence and minimal distortion.
Key Features
  • Coaxially mounted 1.4" Polyimide compression driver delivers predictable off axis response
  • Capable of true full range frequency response from 110 to 20,000 Hz
  • Demodulation ring lowers inductance and improves damping for lower distortion
  • Rugged cast aluminum frame is designed to minimize unwanted reflections
  • Can be used with both passive and active crossovers (not included)
Your Price: $165.00
+ FREE SHIPPING
MSRP: $247.50
Save $82.50 (33%)
Bulk Pricing
Ships next business day. Details

Only 1 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion FTX0617 6-1/2" Coaxial Full-Range Professional Driver

Perfect for ultra-compact high output speakers systems, Celestion's FTX0167 6.5" coaxial full-range features fully integrated low and high frequency drivers which are powered by a common motor assembly. Bringing the acoustic centers of the two drivers closer together improves both time alignment and signal coherence for more natural and predictable response. Other features include an aluminum demodulation ring, edgewound voice coils (woofer and compression driver), and a cast aluminum frame with integrated voice coil vents.

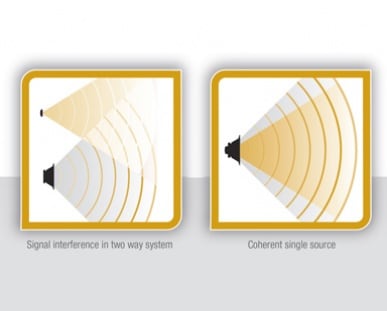

By concentrically aligning low and high frequency drivers, coaxial loudspeakers act as a single source, often providing improvements in signal alignment when compared to a traditional two-way system. Powered by a common magnet motor assembly (same magnet for both elements) Celestion's FTX coaxial range features fully combined LF and HF components in a single chassis. This brings the voice coils and hence the acoustic centers of the two drivers closer together, delivering further improvements in signal coherence for a more natural sounding audio reproduction.

Specifications (Woofer): • Power Handling: 150 watts RMS/ 300 watts continuous program • VC dia: 1.75" • Le: 0.28 mH • Impedance: 8 ohms • Re: 5.57 ohms • Frequency response: 110 – 4,000 Hz • Fs: 105.3 Hz • SPL: 92 dB 1W/1m • Vas: 0.25 cu. ft. • Qms: 3.85 • Qes: 1.02 • Qts: 0.80 • Xmax: 2 mm

Specifications (Compression driver): • Power handling: 40 watts RMS/ 60 watts continuous program (with recommended crossover of 2,200 Hz/12 dB slope) • VCdia: 1.4" • Impedance: 8 ohms • Frequency response: 1,500 – 20,000 Hz • SPL: 103 dB 1W/1m

Dimensions: • Outside diameter: 6.83" • Cutout diameter: 5.9" • Depth: 3.66"

Product Details

BrandCelestion
ModelFTX0617
Part Number294-2094
UPC739894593151
Unit of MeasureEach
Weight5.7

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.5
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response110 to 20,000Hz

Thiele-Small Parameters

DC Resistance (Re)5.57Ω
Voice Coil Inductance (Le)0.28mH
Mechanical Q (Qms)3.85
Electromagnetic Q (Qes)1.02
Total Q (Qts)0.8
Compliance Equivalent Volume (Vas)0.25ft³
Mechanical Compliance of Suspension (Cms)0.21mm/N
BL Product (BL)6.28T·m
Diaphragm Mass Inc. Airload (Mms)10.94g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)154.1cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.83"
Baffle Cutout Diameter5.9"
Depth3.66"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3110.4Hz
Vented Volume0.5ft³
Vented F374.1Hz
