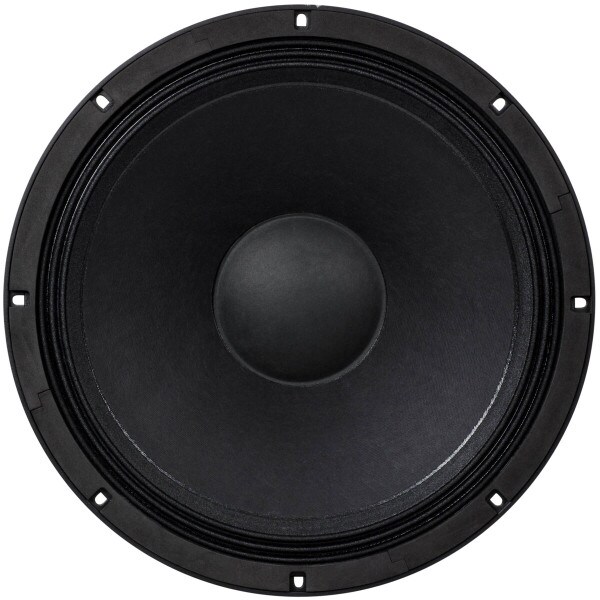

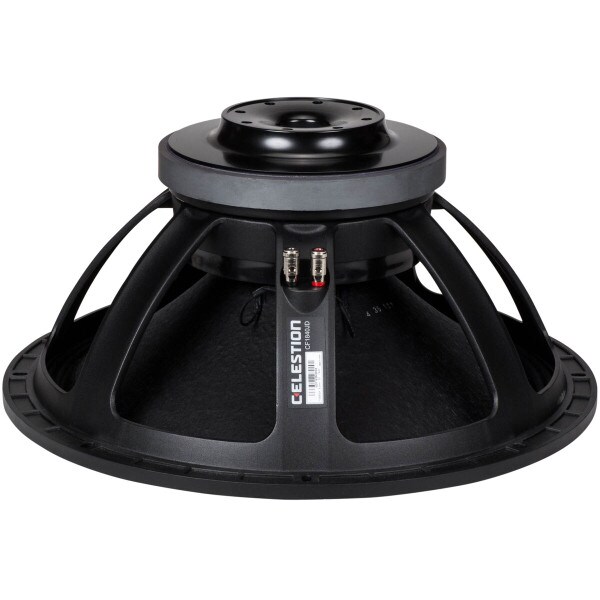

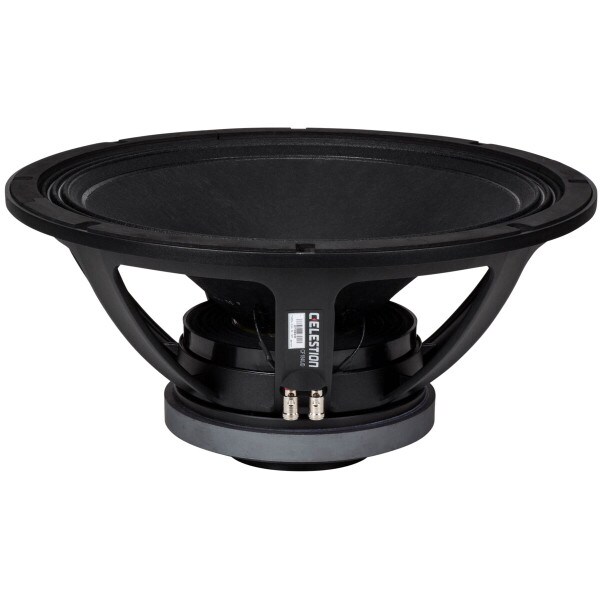

Celestion CF1840JD 18" 1200 Watt Professional Woofer 8 Ohm

4 Questions, 7 Answers or
Celestion
Part #294-2102

Celestion CF1840JD 18" 1200 Watt Professional Woofer 8 Ohm

Celestion
Part #294-2102
Model: CF1840JD
4 Questions, 7 Answers or
For maximum low frequency performance, look no further than Celestion's 18" CF1840JD 8 ohm woofer. This driver is capable of incredible output levels with 98 dB sensitivity, 10 mm xmax, and 1200 watt RMS power handling.
Key Features
  • 4" high temperature, inside/outside voice coil for higher efficiency, reducing thermal compression
  • Multi-roll surround and double spider provides near perfect linearity to the limits of excursion
  • FEA optimized magnet assembly and suspension deliver symmetrical cone movement,and low distortion
  • Vented magnet assembly increases airflow to provide enhanced cooling
  • Twin demodulation rings reduce flux modulation, minimizing electromagnetic distortion
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $310.00
+ FREE SHIPPING
MSRP: $465.00
Save $155.00 (33%)
Bulk Pricing

Back-Ordered

Estimated back in stock 2/28/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion CF1840JD 18" 1200 Watt Professional Woofer 8 Ohm

The CF1840JD 18" woofer, from Celestion's flagship CF Series, features an advanced, FEA optimized motor for maximum output and symmetrical cone movement, which results in low harmonic distortion. The pole piece also includes two demodulation rings for low electromagnetic distortion and low inductance.

With a 4" inside/outside wound fiberglass voice coil and Balanced Airflow Venting for enhanced heat dissipation, this driver can handle a whopping 1200 watts RMS while practically eliminating thermal compression. Cone movement in kept linear by a multi roll surround and twin spider suspension. With 10 mm of xmax this driver can move impressive amounts of air for fantastic bass response. The lightweight rigid Kevlar loaded paper cone ensures tight, accurate, and extremely efficient response.

Product Details

BrandCelestion
ModelCF1840JD
Part Number294-2102
UPC739894586351
Unit of MeasureEach
Weight29.85

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.25
Power Handling (RMS)1200 Watts
Power Handling (MAX)2400 Watts
Impedance8Ω
Frequency Response30 to 2,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter8"

Thiele-Small Parameters

Resonant Frequency (Fs)37Hz
DC Resistance (Re)5.29Ω
Voice Coil Inductance (Le)1.16mH
Mechanical Q (Qms)4.37
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)5.47ft³
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)24.76T·m
Diaphragm Mass Inc. Airload (Mms)217.4g
Maximum Linear Excursion (Xmax)10mm
Surface Area of Cone (Sd)1134cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.11"
Baffle Cutout Diameter16.24"
Depth8.68"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F373.7Hz
Vented Volume5.63ft³
Vented F336.9Hz
