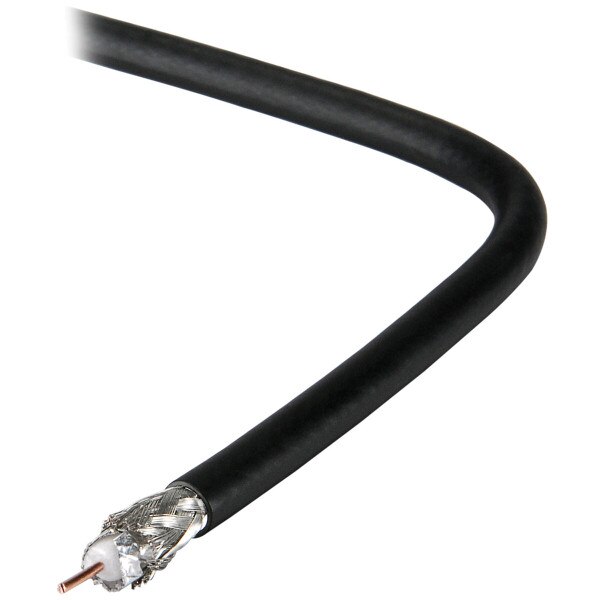

Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 100 ft. USA

Belden
Part #102-1392

Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 100 ft. USA

Belden
Part #102-1392
Model: 1694A 010100
The Belden 1694A 100 ft. RG-6/U coaxial cable's upgraded quality results in improved power transfer, reduced noise, and extended system reliability. A popular choice for custom audio interconnects.
Key Features
  • 95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield
  • 75 ohm nominal impedance is ideal for audio and video
  • 18 AWG 0.040" bare copper conductor
  • Popular choice for custom audio interconnects
Your Price: $99.98
+ FREE SHIPPING
MSRP: $146.99
Save $47.01 (32%)
Bulk Pricing
Ships next business day. Details

1In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 100 ft. USA

Belden's 1694A RG-/U coaxial cable is a popular choice for custom audio interconnects. It has an 18 AWG 0.040" bare copper conductor. The 95% coverage tinned copper braid shield is combined with Belden's exclusive Duofoil aluminum foil/polyester/aluminum foil 100% coverage shield for excellent noise rejection. 75 ohms nominal impedance, ideal for audio and video. PVC outer jacket for durability and long-term protection.

Specifications: • Center conductor: 0.40" dia. bare copper • Dielectric: 0.180" dia. foamed PE • Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 16.2 pF/ft. • Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz • Overall diameter: 0.274".

Product Details

BrandBelden
Model1694A 010100
Part Number102-1392
UPC848864005867
Unit of MeasureEach
Weight5.15

Product Specifications

Cable RatingCMR Rated|UL Approved
Coaxial Cable TypeRG-6/U
Jacket ColorBlack
