  • Belden 1532A RG-6 Direct Burial Underground Coaxial Cable 18 AWG Copper-Clad Conductor 100 ft. USA

Belden 1532A RG-6 Direct Burial Underground Coaxial Cable 18 AWG Copper-Clad Conductor 100 ft. USA

1 Question, 1 Answer or
Belden
Part #102-1372

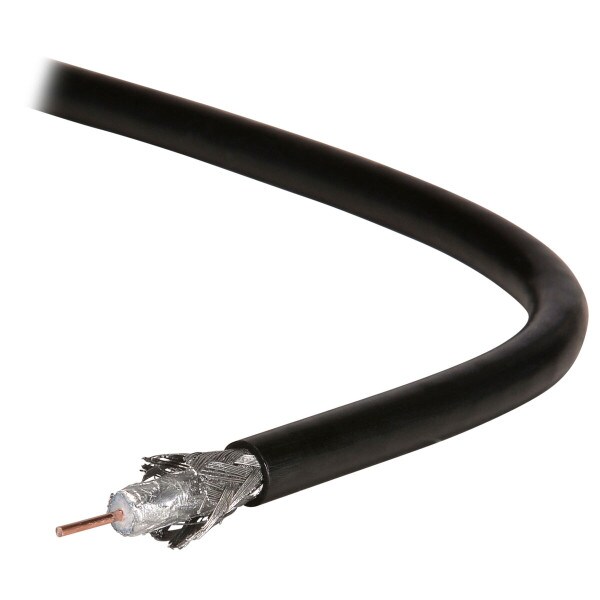

Belden 1532A RG-6 Direct Burial Underground Coaxial Cable 18 AWG Copper-Clad Conductor 100 ft. USA

Belden
Part #102-1372
Model: 1532A 010100
1 Question, 1 Answer or
The Belden 1532A RG-6 coaxial cable's materials and construction make it excel in audio/video direct burial installations.
Key Features
  • Optimized for outdoor or direct burial applications
  • Signal purity is maintained via low capacitance construction
  • 18 AWG 0.040" bare copper-covered steel conductor
  • Duobond® II + aluminum braid shield (90% coverage) resists interference
  • 75 ohm nominal impedance is ideal for audio and video
  • Polyethylene outer jacket resists corrosive effects of long-term burial
Your Price: $28.98
MSRP: $34.99
Save $6.01 (17%)
Bulk Pricing
Ships next business day. Details

9In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Belden 1532A RG-6 Direct Burial Underground Coaxial Cable 18 AWG Copper-Clad Conductor 100 ft. USA

Belden's 1532A RG-6 coaxial cable has an 18 AWG 0.040" bare copper-covered steel conductor. The 90% coverage aluminum braid shield is combined with Belden's exclusive Duobond® II foil/poly/foil 100% shield for excellent noise rejection. 75 ohms nominal impedance, ideal for audio and video. Polyethylene outer jacket for durability and long-term protection.

Specifications: • Conductors: (1) 18 AWG bare copper covered steel • Insulation material: Gas-injected FPE - foam polyethylene • Shield: 100% aluminum foil/polyester tape/aluminum foil and 90% coverage aluminum • Jacket color: Black • Jacket material: PE - polyethylene • Nominal impedance: 75 ohms • Temperature rating: 80° C • Voltage rating: 350V AC • Velocity of propagation: 83% • Capacitance: 16.2 pF/ft. • Nominal attenuation: 0.67 dB/100 ft. @ 1 MHz • Overall diameter: 0.270".

Product Details

BrandBelden
Model1532A 010100
Part Number102-1372
UPC848864005775
Unit of MeasureEach
Weight3.5

Product Specifications

Coaxial Cable TypeRG-6/U
Jacket ColorBlack
Special FeaturesDirect Burial
