  • B&C DCM50 2" Neodymium Midrange Compression Driver 8 Ohm 4-Bolt

B&C DCM50 2" Neodymium Midrange Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-5907

B&C DCM50 2" Neodymium Midrange Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-5907
Model: DCM50

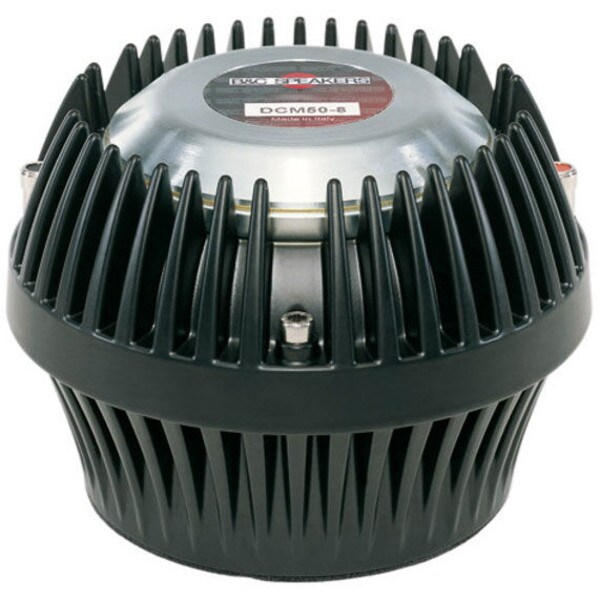

The B&C DCM50 2" neodymium midrange driver features a unique composite diaphragm and the ability to operate reliably as low as 400 Hz.
Key Features
  • 2" horn throat diameter, 4-bolt mounting
  • Powerful, lightweight neodymium magnet
  • Highly damped 5" paper/composite cone diaphragm with 2" voice coil
  • Full performance to 400 Hz
  • Natural sound and exceptional vocal range clarity
  • Distinctive chassis casting acts as a heat sink for maximum thermal efficiency
Your Price: $492.72
+ FREE SHIPPING
MSRP: $821.20
Save $328.48 (40%)
Bulk Pricing
Ships next business day. Details

Only 4 In Stock

More due any day

Free Shipping available on orders over $99.00 in the US. Details

Overview

B&C DCM50 2" Neodymium Midrange Compression Driver 8 Ohm 4-Bolt

The B&C DCM50 2" exit midrange compression driver represents a new level of high quality, high performance drive units. B&C's patent pending design utilizes a neodymium magnetic assembly and an extended-winding 2" diameter voice coil that is coupled to a 5" paper/composite cone. The cone's carefully engineered construction offers superior damping properties, which contribute to the DCM50's neutral, non-fatiguing tonal character -- even at extreme sound pressure levels.

Specifications: • Power handling: 80 watts RMS/160 watts program above recommended crossover of 0.4 kHz/12 dB slope • VCdia: 2.0" • Impedance: 8 ohms • Frequency response: 400-10,000 Hz • SPL: 108.5 dB 1W/1m • Dimensions: 6.0" diameter x 4.25" depth • Net weight: 7.5 lb.

Product Details

BrandB&C Speakers
ModelDCM50
Part Number294-5907
UPC848864009414
Unit of MeasureEach
Weight7.3

Product Specifications

Diaphragm MaterialPaper / Composite
Exit Diameter2"
Mounting Type4-Bolt
Power Handling (RMS)80 Watts
Impedance
