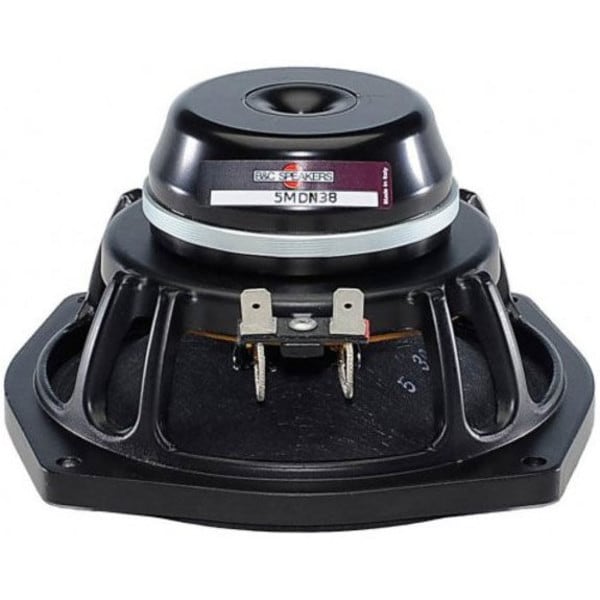

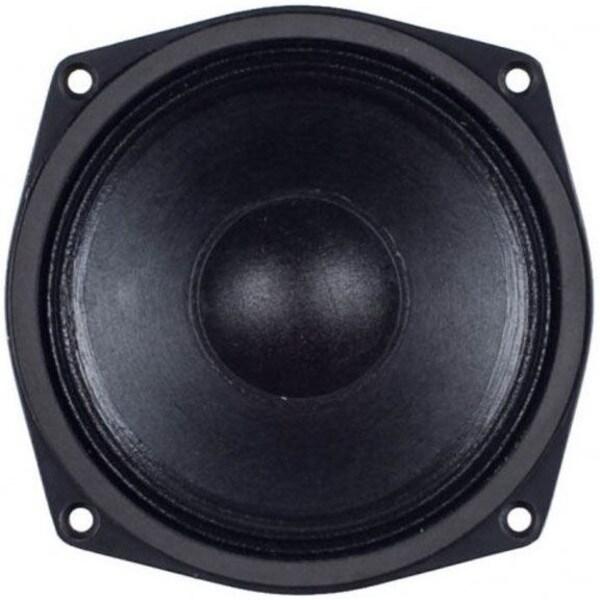

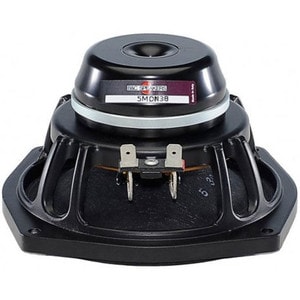

B&C 5MDN38 5" Professional Neodymium Midrange Speaker 8 Ohm

B&C Speakers
Part #294-5900

B&C 5MDN38 5" Professional Neodymium Midrange Speaker 8 Ohm

B&C Speakers
Part #294-5900
Model: 5MDN38
The B&C Speakers 5MDN38 5" neodymium midrange driver is a great choice for high output, multi-way loudspeaker systems.
Key Features
  • Designed for midrange applications
  • High-energy neodymium motor
  • Copper shorting cap on pole piece extends HF response
  • 1.5" aluminum voice coil on a fiberglass former
  • 200 watt continuous program power
  • 96.0 dB 1w/1m sensitivity
Your Price: $126.12
+ FREE SHIPPING
MSRP: $210.19
Save $84.07 (40%)
Bulk Pricing

Back-Ordered

Estimated back in stock 3/14/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 5MDN38 5" Professional Neodymium Midrange Speaker 8 Ohm

B&C's 5MDN38 5" speaker was designed for professional midrange applications that require high output and low distortion. The 5MDN38's powerful neodymium magnet reduces driver weight while maintaining superb efficiency, complemented by a short, low-mass aluminum voice coil.

Product Details

BrandB&C Speakers
Model5MDN38
Part Number294-5900
UPC848864009346
Unit of MeasureEach
Weight2.65

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.6
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response240 to 10,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)240Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)2.6
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.02ft³
BL Product (BL)11.5T·m
Diaphragm Mass Inc. Airload (Mms)9g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.9"
Baffle Cutout Diameter4.8"
Depth2.95"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3447.1Hz
Vented Volume0.02ft³
Vented F3232.7Hz
