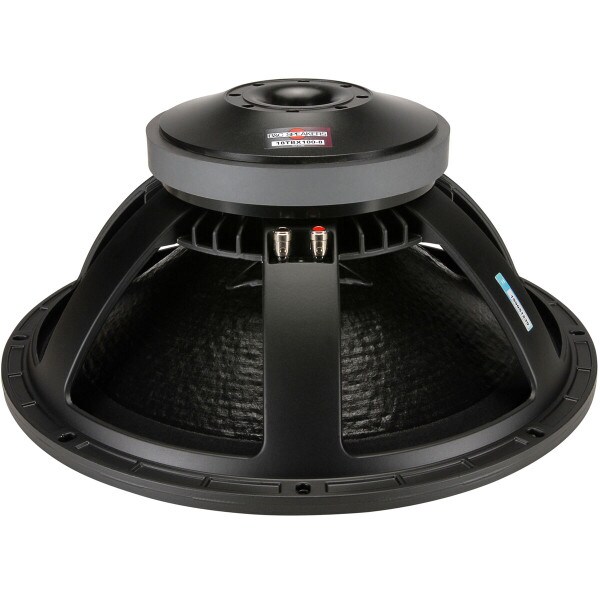

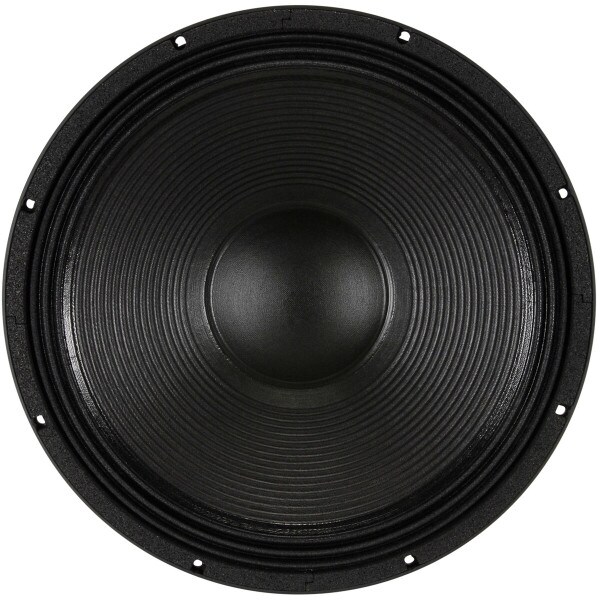

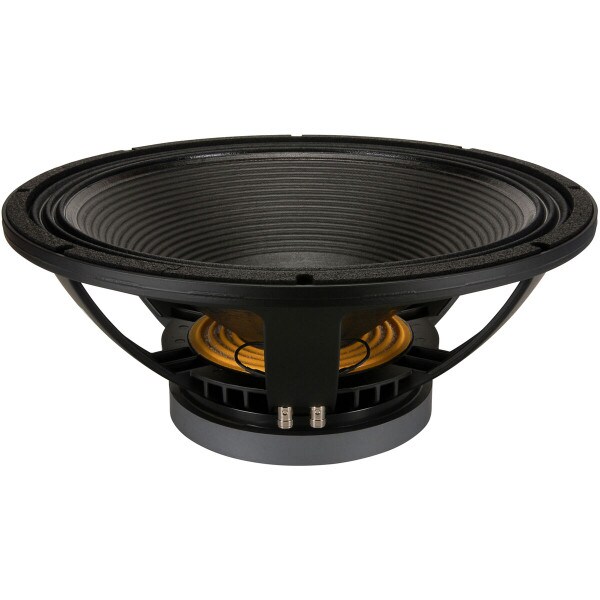

B&C 18TBX100 18" Woofer

B&C Speakers
Part #294-676

B&C 18TBX100 18" Woofer

B&C Speakers
Part #294-676
Model: 18TBX100
The most powerful 18" in the B&C ceramic product range with its 1,200 watts RMS power handling, the 18TBX100 defines the low frequency reproduction "state of the art".
Key Features
  • Dual demodulation rings in the magnet system
  • 4" copper wire voice coil wound inside-outside on fiberglass former
  • Double spider suspension system maintains linearity
  • Very low distortion—nothing but deep, clean bass
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $353.94
+ FREE SHIPPING
MSRP: $589.91
Save $235.97 (40%)
Bulk Pricing
Order in the next 0 hr 0 min to ship today. Details

18In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 18TBX100 18" Woofer

The industry-standard B&C Speakers 18TBX100 features a 1" long/4" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path. The 18TBX100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers' well-established loudspeaker enclosures.

Product Details

BrandB&C Speakers
Model18TBX100
Part Number294-676
UPC844632002229
Unit of MeasureEach
Weight32.6

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.3
Power Handling (RMS)1200 Watts
Power Handling (MAX)2400 Watts
Impedance8Ω
Frequency Response35 to 1,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)34Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)7.2
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)7.5ft³
BL Product (BL)25.5T·m
Diaphragm Mass Inc. Airload (Mms)209g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)1210cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18"
Baffle Cutout Diameter16.6"
Depth8.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F377.5Hz
Vented Volume6.13ft³
Vented F338Hz
