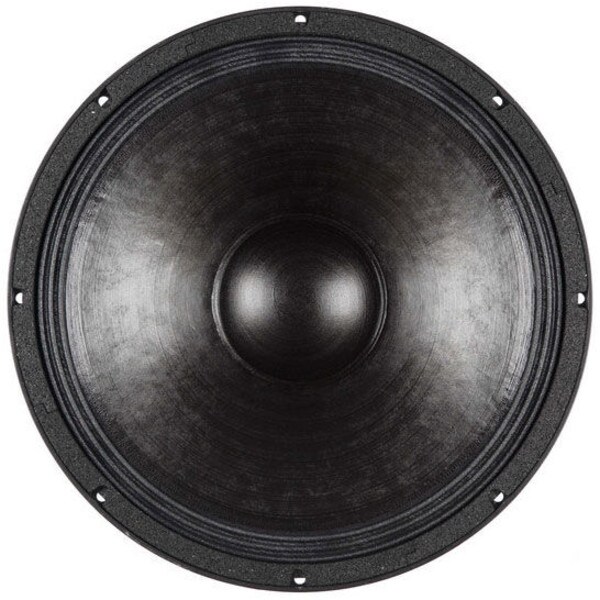

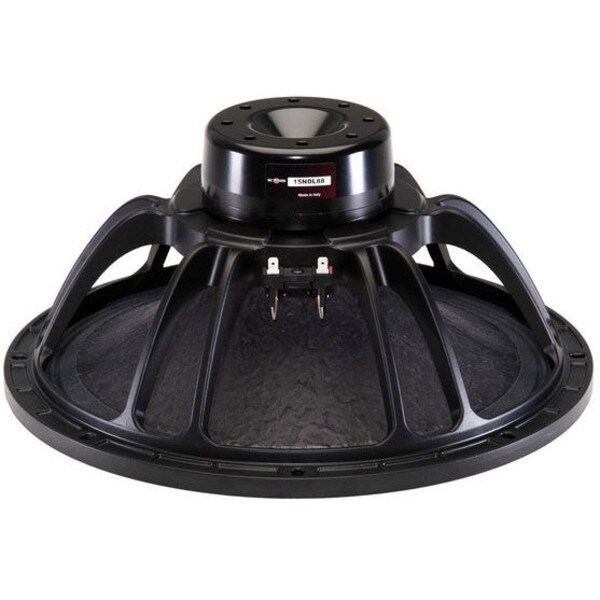

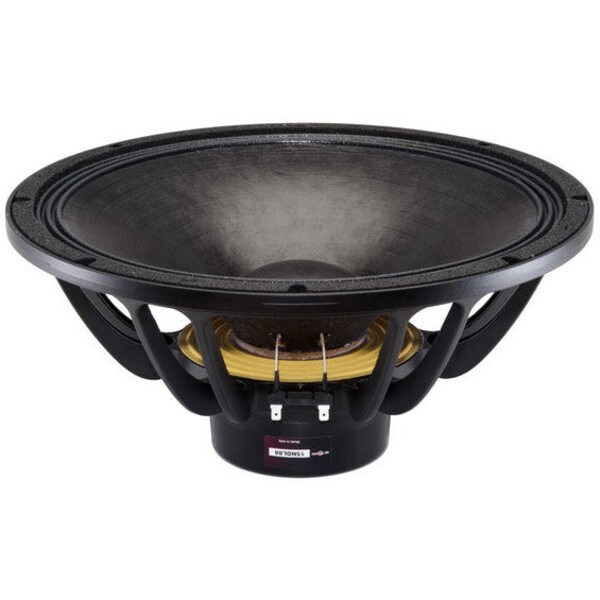

B&C 15NDL88 15" Neodymium Woofer

B&C Speakers
Part #294-5996

B&C 15NDL88 15" Neodymium Woofer

B&C Speakers
Part #294-5996
Model: 15NDL88
The 15NDL88 15" woofer from B&C is an excellent pro driver for use in the most demanding high output speaker systems. It can handle 1,400 watts of continuous power and has 8 mm Xmax capabilities, thanks to an advanced neodymium motor complemented by a carefully optimized, double spider suspension.
Key Features
  • Aluminum demodulating ring limits distortion for natural response at all levels
  • Waterproof treated paper cone stands up to the harshest conditions
  • Ventilated voice coil gap reduces power compression and increases power handling
  • 99 dB sensitivity with 1,400 watt continuous program power for extremely dynamic output levels
  • 3.5" aluminum voice coil on a glass fiber former
Your Price: $341.74
+ FREE SHIPPING
MSRP: $569.57
Save $227.83 (40%)
Bulk Pricing
Order in the next 6 hr 49 min to ship today. Details

Only 2 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15NDL88 15" Neodymium Woofer

B&C's 15NDL88 15" woofer combines cutting edge technology with brute force design, creating a highly versatile driver ideally suited to the pro audio environment. A newly-tooled 3.5" voice achieves the perfect balance of efficiency, motor strength, and extended response. With features such as a weatherproof treated paper cone, 1,400 watt continuous power handling, and rigid cast aluminum frame, this driver will handle the most extreme conditions.

The ventilated magnet assembly helps keep the motor cool even after hours of high power use. B&C's NDL motor works with a high-energy neodymium magnet mounted inside the voice coil, precisely focusing the magnetic field. The 15NDL88 offers tremendous weight savings yet is extremely powerful and durable, easily handling the demanding requirements of the pro sound market.

Product Details

BrandB&C Speakers
Model15NDL88
Part Number294-5996
UPC848864021201
Unit of MeasureEach
Weight15.45

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.72
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response45 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3.5"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)1.25mH
Mechanical Q (Qms)6.1
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)4.45ft³
BL Product (BL)20.1T·m
Diaphragm Mass Inc. Airload (Mms)102g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.47"
Baffle Cutout Diameter13.94"
Depth6.97"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3105.3Hz
Vented Volume4ft³
Vented F348.2Hz
