  • B&C 14NDL88 14" Neodymium Woofer

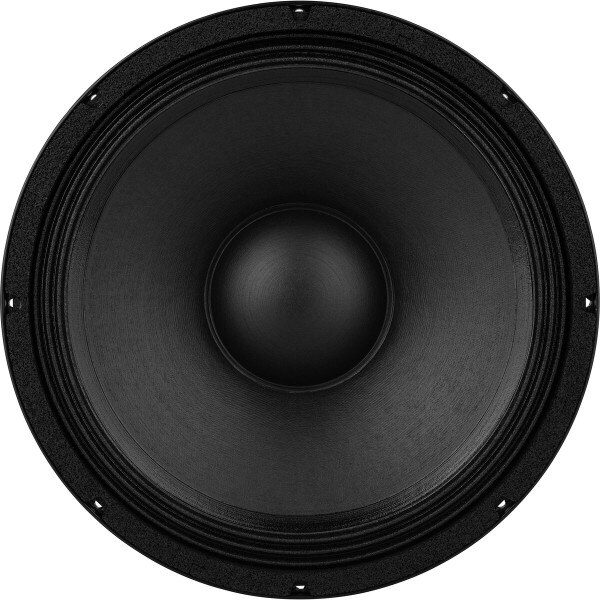

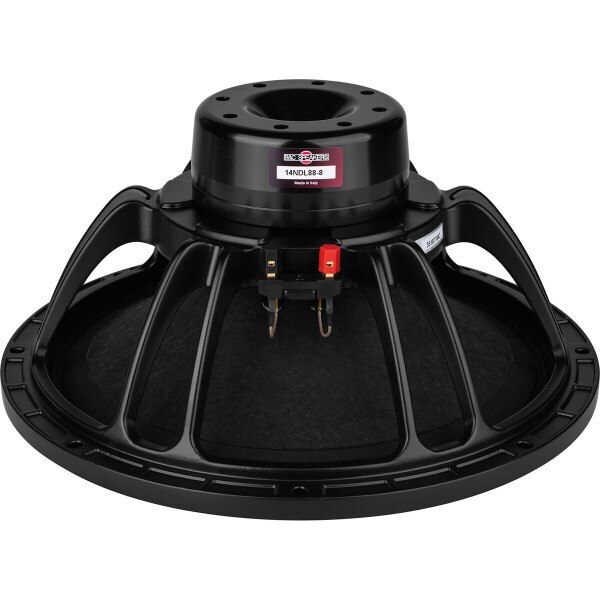

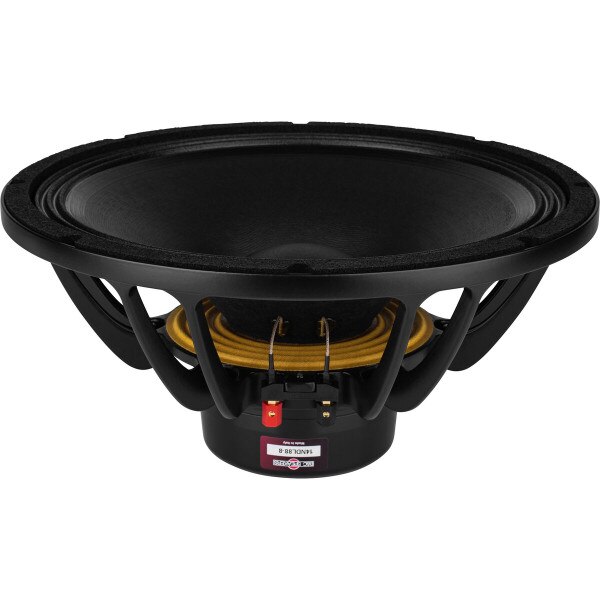

B&C 14NDL88 14" Neodymium Woofer

B&C Speakers
Part #294-5995

B&C 14NDL88 14" Neodymium Woofer

B&C Speakers
Part #294-5995
Model: 14NDL88
The uniquely-sized B&C Speakers 14NDL88 14" woofer delivers supreme audio performance in the most demanding professional loudspeaker systems. This driver can handle 1,400 watts of continuous power and has 8 mm Xmax capabilities, thanks to an advanced neodymium motor complemented by a carefully optimized, double spider suspension.
Key Features
  • Unique 14" nominal diameter is the "just right" size for compact, high-output speaker systems
  • Aluminum demodulating ring limits distortion for natural response at all levels
  • Ventilated voice coil gap reduces power compression and increases power handling
  • 99 dB sensitivity with 1,400 watt continuous program power for extremely dynamic output levels
  • 3.5" aluminum voice coil on glass fiber former
  • Waterproof treated paper cone stands up to the harshest conditions
Your Price: $328.50
+ FREE SHIPPING
MSRP: $547.50
Save $219.00 (40%)
Bulk Pricing

Out of Stock

Special Order Items ships in 20-30 days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 14NDL88 14" Neodymium Woofer

B&C's 14NDL88 14" woofer combines cutting edge technology with brute force design, creating a highly versatile driver ideally suited to the pro audio environment. A newly-tooled 3.5" voice achieves the perfect balance of efficiency, motor strength, and extended response. With features such as a weatherproof treated paper cone, 1,400 watt continuous power handling, and rigid cast aluminum frame, this driver will handle the most extreme conditions.

The ventilated magnet assembly helps keep the motor cool even after hours of high power use. B&C's NDL motor works with a high-energy neodymium magnet mounted inside the voice coil, precisely focusing the magnetic field. The 14NDL88 offers tremendous weight savings yet is extremely powerful and durable, easily handling the demanding requirements of the pro sound market.

Product Details

BrandB&C Speakers
Model14NDL88
Part Number294-5995
UPC848864021195
Unit of MeasureEach
Weight14.7

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter13.5
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response45 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3.5"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)7.8
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)3.6ft³
BL Product (BL)19.9T·m
Diaphragm Mass Inc. Airload (Mms)86g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)707cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter14.1"
Baffle Cutout Diameter12.72"
Depth6.61"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F3119.1Hz
Vented Volume2.13ft³
Vented F348.3Hz
