B&C 12PE32 12" Midbass Speaker

B&C Speakers
Part #294-660

B&C 12PE32 12" Midbass Speaker

B&C Speakers
Part #294-660
Model: 12PE32

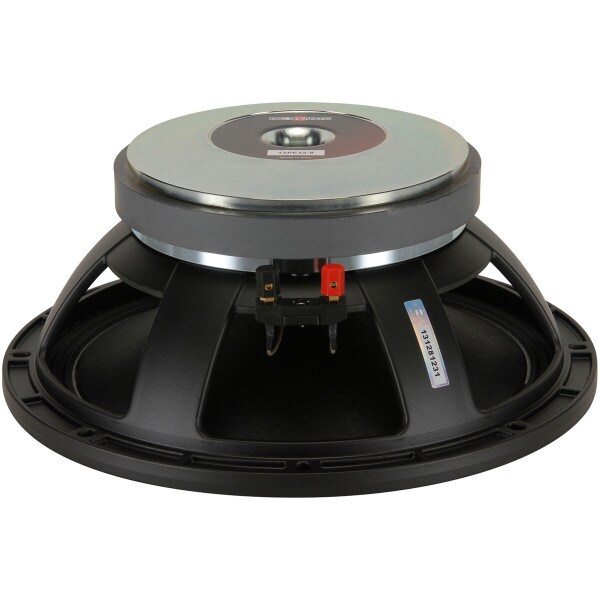

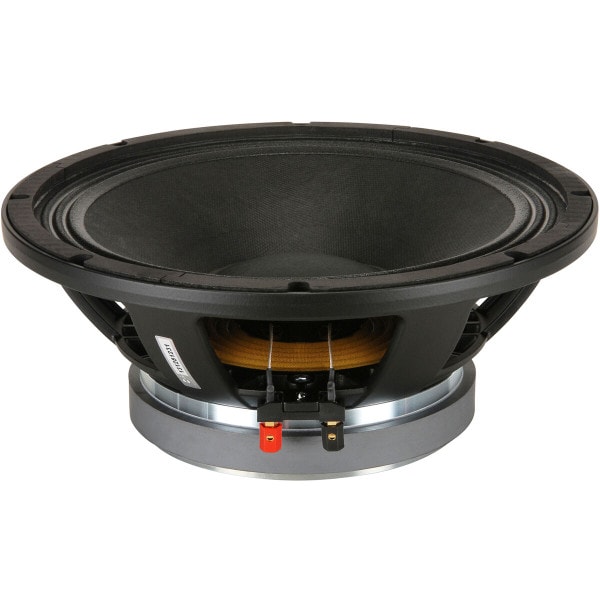

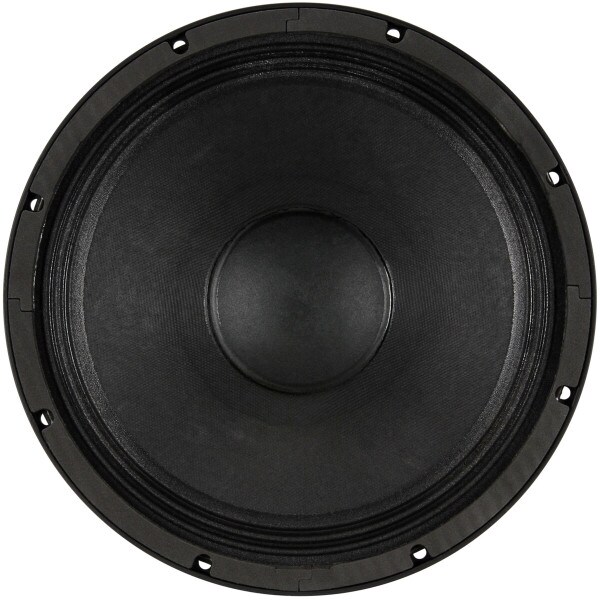

The B&C Speakers 12PE32 12" midbass delivers excellent results in vented and horn loaded loudspeaker enclosures, and exhibits very good linearity up to 2 kHz.
Key Features
  • Very high efficiency
  • Great in vented and horn loaded enclosures
  • 2.5" aluminum voice coil
  • Detailed, accurate sound reproduction
Your Price: $200.17
+ FREE SHIPPING
MSRP: $333.62
Save $133.45 (40%)
Bulk Pricing

Back-Ordered

Estimated back in stock 12/6/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12PE32 12" Midbass Speaker

B&C's 12PE32 is a very high efficiency 12" driver for professional woofer and midbass speaker applications. The 12PE32's 2.5" aluminum voice coil and a low-mass yet stiff cone help provide clean, detailed, high-impact sound reproduction. This Italian-made 12" pro PA speaker resolves fine details in audio program material and reproduces them accurately at concert-level volume.

Product Details

BrandB&C Speakers
Model12PE32
Part Number294-660
UPC844632002083
Unit of MeasureEach
Weight18.7

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.6
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity101dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)51Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)7.6
Electromagnetic Q (Qes)0.19
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)3.56ft³
BL Product (BL)19.1T·m
Diaphragm Mass Inc. Airload (Mms)37g
Maximum Linear Excursion (Xmax)2.8mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.3"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1.5ft³
Vented F370.7Hz
