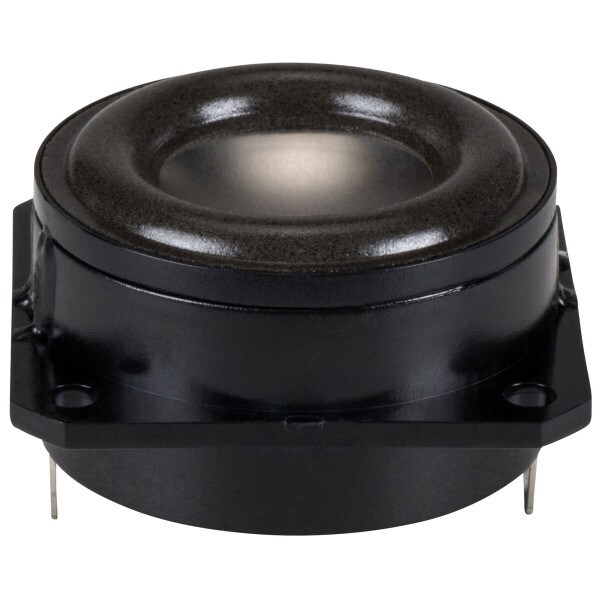

CLEARANCE Aurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

AuraSound
Part #296-250

CLEARANCE Aurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

AuraSound
Part #296-250
Model: NSW1-205-8A
Aurasound designed the 1" extended range "Cougar" driver with bleeding edge loudspeaker technology for the highest quality, full-range sound, in the smallest possible package. Great for modern applications such as speaker bars, desktop computer speakers, thin tower speakers, and line arrays.
Key Features
  • NRT radial neodymium motor for extremely low distortion
  • Full-range, 1" underhung driver with 4.5 mm of Xmax
  • Small frame size for reduced center-to-center distance and reduced comb filtering when used in arrays
  • Extreme ventilation for great power handling
  • Great for modern audio applications including sound bars and ultra-thin tower speakers
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
CLEARANCE $17.90
MSRP: $23.99
Save $6.09 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $17.90/ea
Quantity:Qty: 4-9 $16.99/ea
Quantity:Qty: 10+$16.11/ea
Order in the next 13 hr 53 min to ship today. Details

464In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Aurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

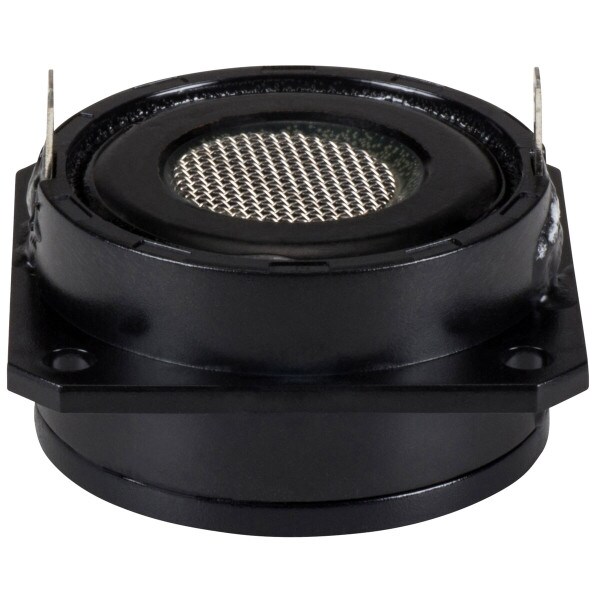

The Aurasound "Cougar" NSW1-205-8A 1" extended range driver is packed with next-gen speaker technology. An NRT™ neodymium radial magnet motor submerses the 20 mm, underhung voice coil in magnetic flux for supreme control, low distortion, high output (for its size), and wide frequency range without stray magnetic fields that could potentially damage sensitive electronics, while the extreme venting provided by a capless pole piece evacuates air that would otherwise be compressed (in a driver this size).

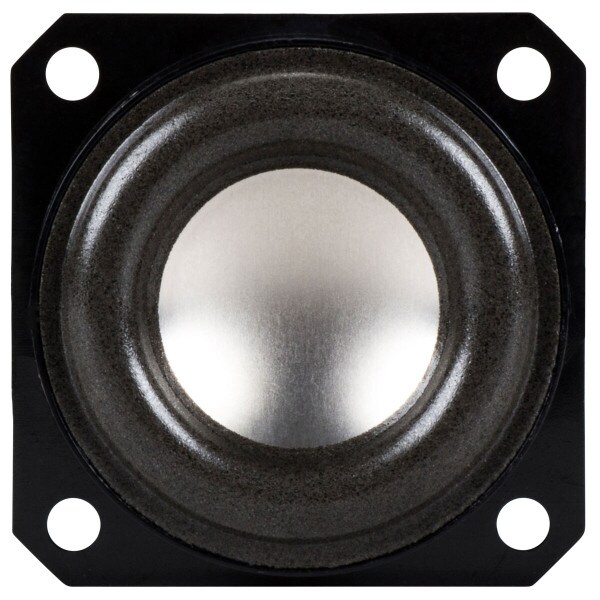

A titanium cone is mated to a foam surround to reduce cone breakup, for an extremely linear frequency response from 250 to 20,000 Hz. The low, 220 Hz free air resonance combines with 4.5 mm of Xmax (9 mm maximum peak-to-peak excursion) to allow for low crossover points, meaning you can pair the Cougar with nearly any woofer up to 5 feet away (2-1/2 ft. is the recommended maximum) seamlessly.

Aurasound built the NSW1-205-8A with a non-resonant, minimalistic, rear-mount frame for close center-to-center placement which is especially important in line arrays to minimize comb filtering. When used in series-parallel groups of four, the Cougar's output is increased from 78 dB 1W/1m to roughly 84 dB 1W/1m, with power handling increased to 20 watts RMS. Grouping eight together, and wiring for 4 ohms, yields roughly 90 dB of output at 1W/1m with power handling increased to 40 watts RMS.

Adding a series 80 microfarad capacitor creates a 250 Hz, 1st-order high pass and increases power handling. When wired in pairs or groups for a 4 ohm load, use a series 160 microfarad capacitor for the same effect.

Product Details

BrandAuraSound
ModelNSW1-205-8A
Part Number296-250
UPC848864016214
Unit of MeasureEach
Weight0.14

Product Specifications

Nominal Diameter1"
Bolt Circle Diameter1.69
Power Handling (RMS)5 Watts
Power Handling (MAX)20 Watts
Impedance8Ω
Frequency Response220 to 20,000Hz
Sensitivity78dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)220Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.28mH
Mechanical Q (Qms)2.1
Electromagnetic Q (Qes)1.1
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)0.01ft³
Diaphragm Mass Inc. Airload (Mms)0.07g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)5.31cm²

Materials of Construction

Cone MaterialTitanium
Surround MaterialFoam
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.17", across flats 1.54"
Baffle Cutout DiameterRear mount 1.42"
Depth0.49"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0197ft³
Sealed F3261.1Hz
Vented Volume0.0316ft³
Vented F3127.4Hz
