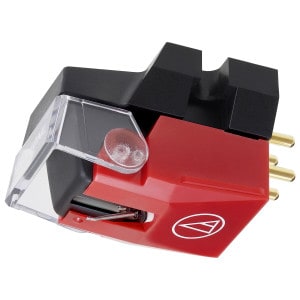

Audio-Technica VM540ML Turntable Phono Dual Moving Magnet Cartridge 1/2" Mount 2.2 x 0.12 mil

Read 4 Reviews or
Audio-Technica
Part #240-5658

Audio-Technica VM540ML Turntable Phono Dual Moving Magnet Cartridge 1/2" Mount 2.2 x 0.12 mil

Audio-Technica
Part #240-5658
Model: VM540ML
Read 4 Reviews or
The VM540ML MicroLine stylus cartridge is the premier 500 Series model in Audio-Technica’s VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology.
Key Features
  • VM dual magnet cartridge with MicroLine® stylus
  • Aluminum cantilever
  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer cartridge housing
Your Price: $279.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 0 hr 21 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio-Technica VM540ML Turntable Phono Dual Moving Magnet Cartridge 1/2" Mount 2.2 x 0.12 mil

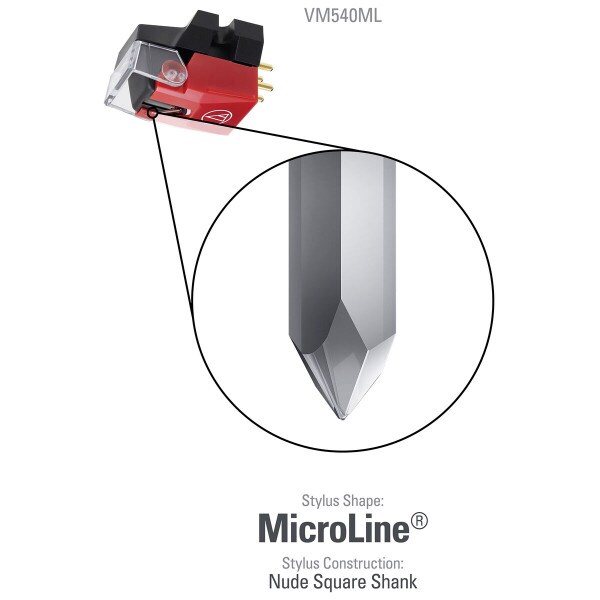

Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

Specifications: • Frequency response: 20-27,000 Hz • Channel separation: 28 dB (1 kHz) • Vertical tracking force: 1.8-2.2 g (2.0 g standard) • Stylus construction: Nude square shank • Recommended load impedance: 47,000 ohms • Output: 4.0 mV (at 1 kHz, 5 cm/sec) • Channel balance: 1.0 dB (1 kHz) • Stylus shape: 2.2 x 0.12 mil MicroLine • Cantilever: Aluminum tapered pipe • Mount: Half-inch • Coil impedance: 2,700 ohms (1 kHz) • DC resistance: 800 ohms • Load capacitance: 100-200 pF • Coil inductance: 460 mH (1 kHz) • Static compliance: 40 x 10-6 cm/dyne • Dynamic compliance: 10 x 10-6 cm/dyne (100 Hz) • Vertical tracking angle: 23° Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D • Accessories included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set.

Product Details

BrandAudio-Technica
ModelVM540ML
Part Number240-5658
Unit of MeasureEach
Weight0.2
