Audio-Technica AT-VM95EN/H Elliptical Nude Stereo Cartridge with Premounted Headshell

Read 1 Review or
Audio-Technica
Part #240-5635

Audio-Technica AT-VM95EN/H Elliptical Nude Stereo Cartridge with Premounted Headshell

Audio-Technica
Part #240-5635
Model: AT-VM95EN/H
Read 1 Review or
The Audio-Technica VM95EN/H dual moving magnet cartridge produces excellent channel separation with low distortion for great sonic performance. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws with no nuts required. The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Key Features
  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal 1/2" mount headshell for 4-pin turntable cartridges
Your Price: $149.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 13 hr 23 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio-Technica AT-VM95EN/H Elliptical Nude Stereo Cartridge with Premounted Headshell

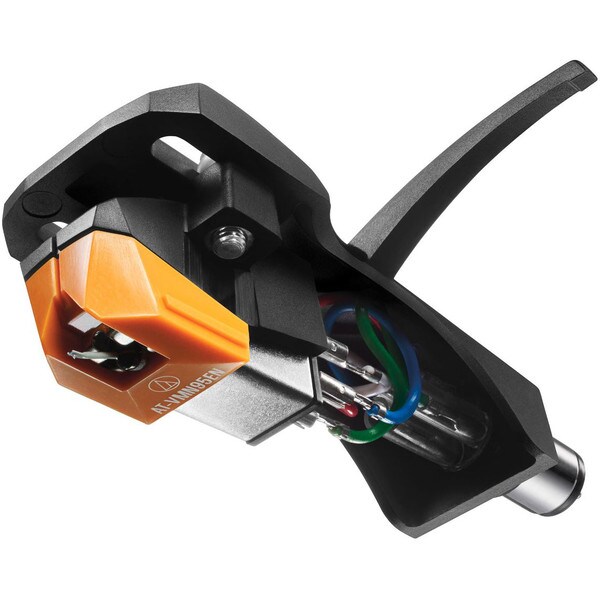

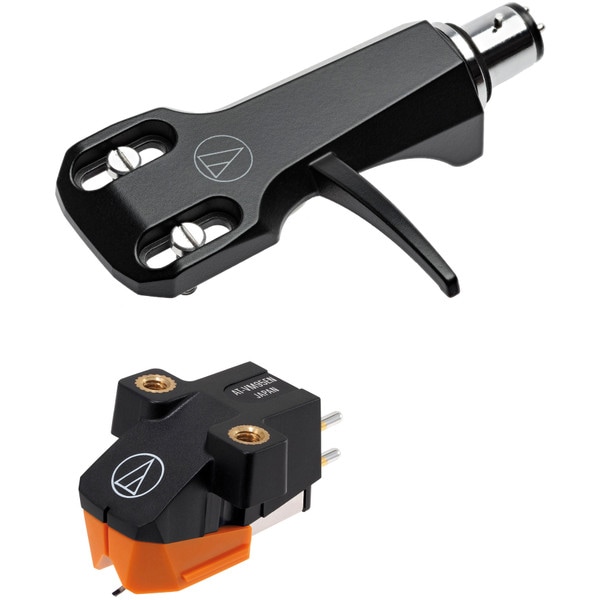

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

The AT-HS6 is a universal 1/2"-mount headshell for 4-pin turntable cartridges. It features an ultra-lightweight (9 g) aluminum die-cast body to keep vibration to a minimum for accurate playback both for DJs and causal listeners. A finger lift enables simple, precise stylus placement. The headshell is also equipped with gold-plated lead wires for lossless signal transmission and comes with mounting screws for connecting the headshell to a cartridge.

Specifications:


•Frequency response: 20-23,000 Hz
•Channel separation: 22 (dB at 1 kHz)
•Vertical tracking angle: 23°
•Vertical tracking force: 1.8-2.2 g (2.0 g standard)
•Stylus construction: Nude round shank
•Recommended load impedance: 47 kohms
•Coil impedance: 3.3 kohms (1 kHz)
•DC resistance: 485 ohms
•Coil inductance: 550 mH (1 kHz)
•Load capacitance: 100 to 200 pF
•Output: 3.5 mV (1 kHz, 5 cm/sec.)
•Channel balance: 2.0 dB (1 kHz)

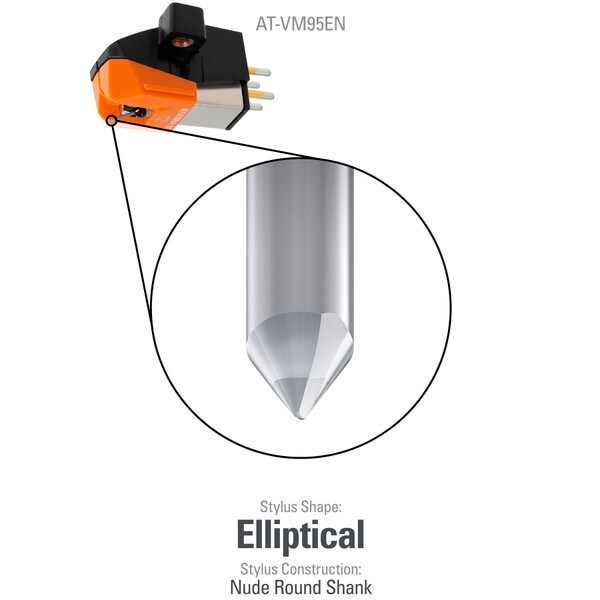

•Stylus shape: 0.3 x 0.7 mil elliptical
•Cantilever: Aluminum pipe
•Mount: Half-inch
•Replacement stylus: AT-VMN95EN
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
• Dimensions: 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
• Weight: 15.5 g (0.55 oz)

Product Details

BrandAudio-Technica
ModelAT-VM95EN/H
Part Number240-5635
Unit of MeasureEach
Weight0.15
