CLEARANCE Atlas Sound SBMS 8" Square Ceiling Mount System

1 Question, 2 Answers or
Atlas Sound
Part #242-9410

CLEARANCE Atlas Sound SBMS 8" Square Ceiling Mount System

Atlas Sound
Part #242-9410
Model: SBMS
1 Question, 2 Answers or
The SBMS is ideal for "big box" retail stores whose special design calls for an open beam ceiling.
Key Features
  • Convenient lead wire extensions assure expedited field connection
  • Durable white powder coat finish
  • Easy-to-install loudspeaker package includes provisions for fast clamp-mount installation to I-beam
  • Includes an 8" dual-cone loudspeaker with a pre-mounted transformer, baffle and enclosure
CLEARANCE $100.99
+ FREE SHIPPING
MSRP: $123.99
Save $23.00 (19%)
Bulk Pricing
Ships next business day. Details

1In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

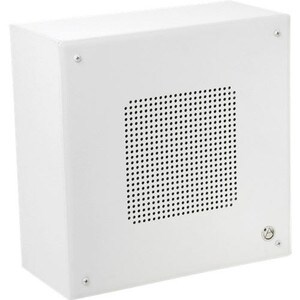

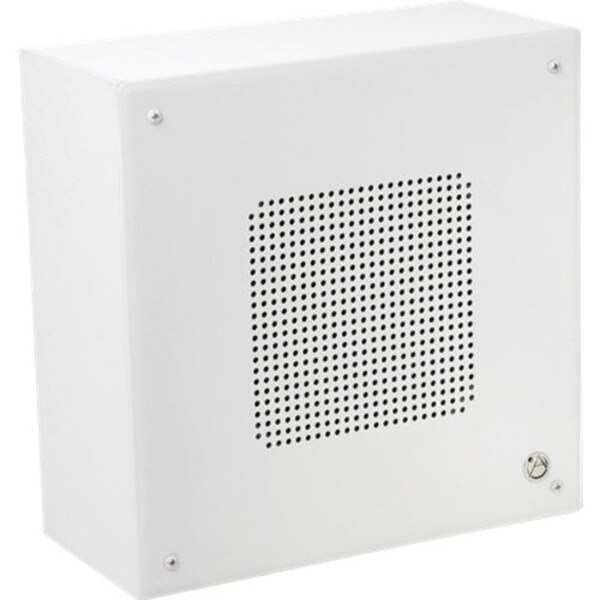

Atlas Sound SBMS 8" Square Ceiling Mount System

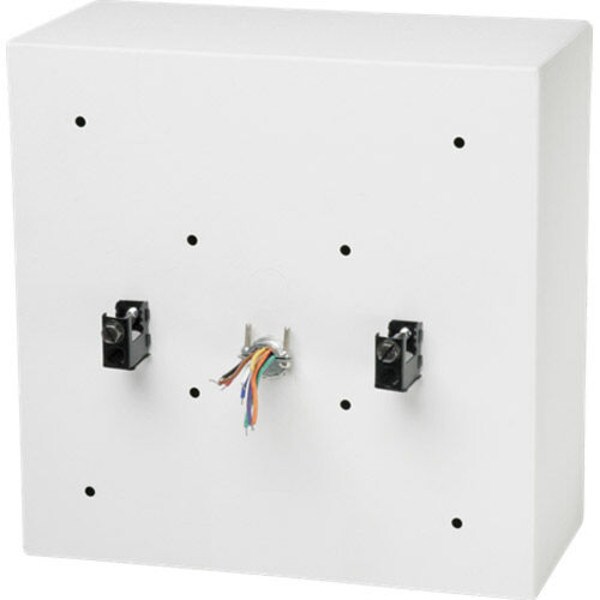

The SBMS is ideal for "big box" retail stores whose special design calls for an open beam ceiling. To get customers to pay attention to the announcements of specials and the employees to respond to general paging—intelligibility is a top design goal. The high efficiency of the specially designed 8" speaker included in the SBMS package fills this requirement. The SBMS a square design, which blends in with the overall aesthetic of an open beam ceilings. The SBMS is infinitely flexible, complying with a variety of conduit requirements. Integral knockouts facilitate 1/2" and 3/4" conduit where required by code while integral "romex" style connector simplifies installation for applications where conduit is not required at all. The SBMS also includes a 25V/70.7V internal transformer and is finished in neutral white epoxy for simplified stocking and ordering.

Specifications: • Height: 11-1/2" (29.21 cm) • UL listed/standard: 1480 • Width: 11-1/2" (29.21 cm) • Depth: 5-1/2" (13.97 cm) • Shipping weight: 10.50 lbs. (4.76 kg) • Frequency response: 85 Hz - 20 kHz • Power taps: .25, .5, 1, 2, 4 • Speaker type: 8" Dual cone • Dispersion: 105° • Sensitivity: 92 dB.

Product Details

BrandAtlas Sound
ModelSBMS
Part Number242-9410
UPC612079179923
Unit of MeasureEach
Weight10

Product Specifications

Input Rating70V|25V
Mounting StyleBeam Mount
Woofer Diameter8"
