Amiga MT Tower Speaker Kit with Baffle Only

Parts Express
Part #300-7122

Amiga MT Tower Speaker Kit with Baffle Only

Parts Express
Part #300-7122
Model: Amiga

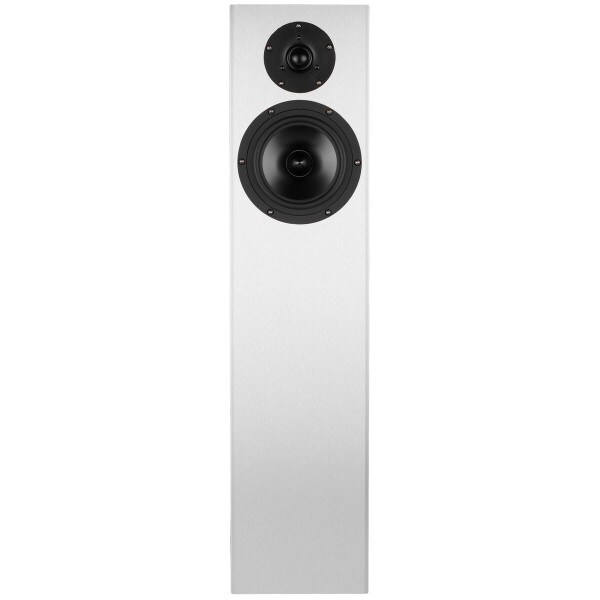

Another popular design by Paul Carmody, the Amiga 2-way tower kit has a small footprint but produces a big sound. This kit has become known as a boutique Hi-Fi killer. This kit is ideal for woodworkers, the baffle is precut for the drivers, you just build the enclosure. This kit includes parts to build a single speaker: a pre-cut front baffle, drivers, crossover components, and damping material.
Key Features
  • The Amiga has a detailed yet relaxed sound with surprising low frequency extension
  • Remarkably flat response, ±2.5 dB from 35-20,000 Hz
  • CNC cut MDF front baffle, you just build the enclosure
  • Designed and fine-tuned by expert designer Paul Carmody
Your Price: $189.98
+ FREE SHIPPING
MSRP: $249.98
Save $60.00 (24%)
Bulk Pricing
Order in the next 3 hr 31 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Amiga MT Tower Speaker Kit with Baffle Only

Basically, if you like the Overnight Sensations, then you'll like the Amigas. The tonal balance is similar with slightly relaxed voicing to allow for long listening sessions without fatigue. However, the quality of the drivers will definitely highlight finer details in any recording. The imaging creates a wide soundstage, as a quality monopole speaker should, with a very tight center image, and sounds seeming to appear around and behind the speakers. The bass extension should definitely surprise; with an F3 of 34 Hz, there is a good chance you can leave the subwoofer turned off for most purposes. The overall sound is big, it is a 2-way that produces like a 3-way.

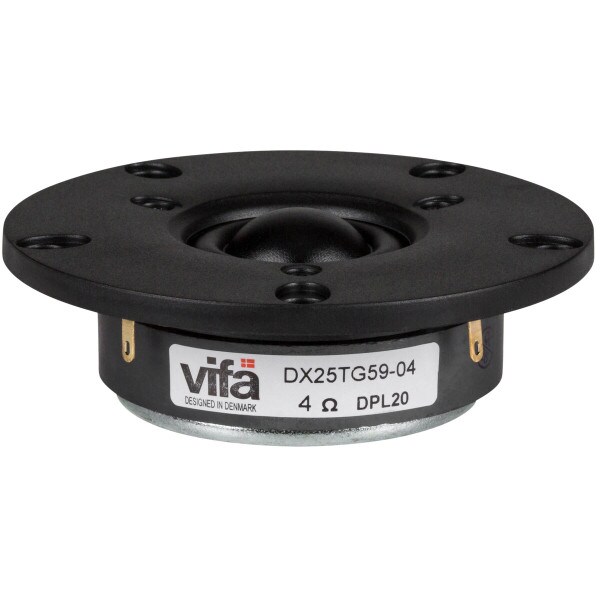

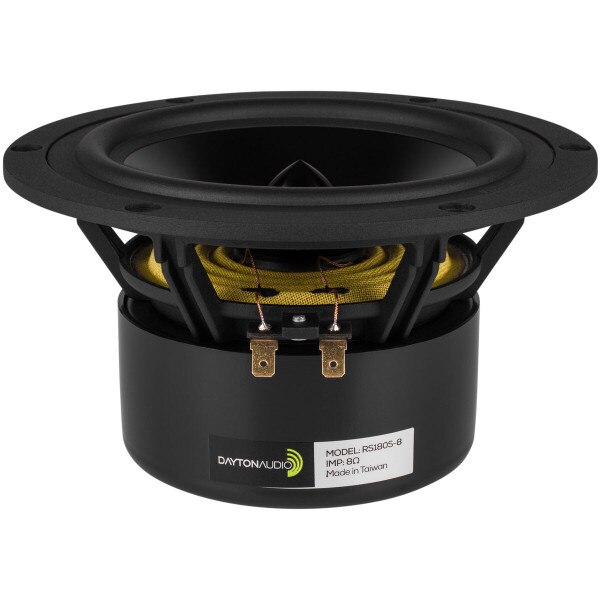

The drivers for the Amiga's were chosen for their low distortion and accuracy. The Dayton Audio RS180S-8 7" aluminum cone woofer handles frequencies below 2,000 Hz with precision and authority. For the top few octaves Paul chose the Peerless by Tymphany DX25TG59-04 1" silk dome tweeter for its low Fs and smooth response.

This kit is ideal for any novice woodworker. The enclosure is very easy to build, you only need to create a 8" W x 34" H x 10-1/4" D box and attach the precut baffle. The solid 3/4" MDF baffle is CNC milled to tight tolerances. Recesses for flush mounting the drivers are pre-cut making assembly a snap.

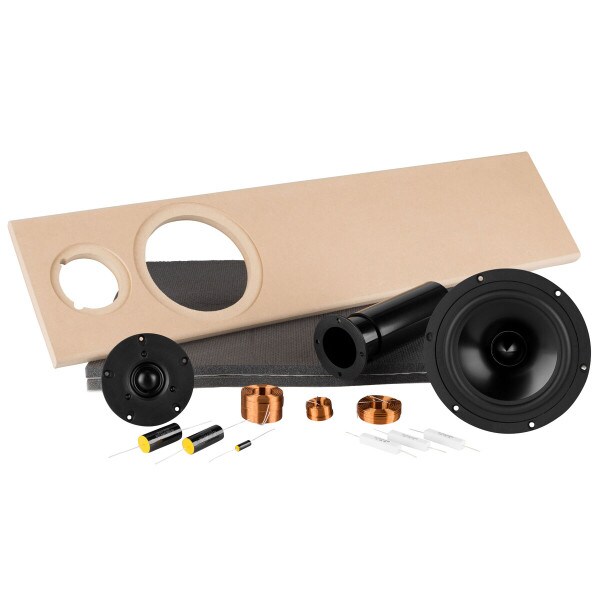

This kit includes nearly everything you need to build a top-notch speaker in no time flat, including: a precut baffle, drivers, port, damping material, and crossover components.

This kit includes parts to build a single speaker.

Included Components:

QtyPart NumberDescription
1027-424Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor
1027-402Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor
1027-426Dayton Audio DMPC-8.2 8.2uF 250V Polypropylene Capacitor
1255-224Jantzen 1950 0.40mH 18 AWG Air Core Inductor
1255-266 Jantzen 1063 2.0mH 18 AWG Air Core Inductor
1255-030Jantzen 1204 0.35mH 20 AWG Air Core Inductor
1004-5.1Dayton Audio DNR-5.1 5.1 Ohm 10W Precision Audio Grade Resistor
1004-2.4Dayton Audio DNR-4.7 2.4 Ohm 10W Precision Audio Grade Resistor
1004-2Dayton Audio DNR-2.0 2.0 Ohm 10W Precision Audio Grade Resistor
1264-1020Peerless by Tymphany DX25TG59-04 1" Fabric Dome Tweeter
1295-364Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm
1260-387Port Tube 2" ID Adjustable
2260-520Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
2N/AAmiga Tower Speaker Pre-Cut Baffle

Note: Screws, binding posts, and speaker wire are not included.

Specifications:
• Power handling: 70 watts RMS/140 watts max
• Frequency response: 34-20,000 Hz
• Impedance: 8 ohms
• Sensitivity: 84 dB 1W/1m
• Dimensions: 34" H x 8" W x 11" D

Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.

Product Details

BrandParts Express
ModelAmiga
Part Number300-7122
UPC848864034720
Weight13.62

Product Specifications

Cabinet Dimensions (HxWxD)34" x 8" x 11
Cabinet OptionsWithout Cabinet
ColorUnfinished
Configuration2-way
Input Rating8 ohm
Speaker TypeFloor Standing
Woofer Diameter7"
