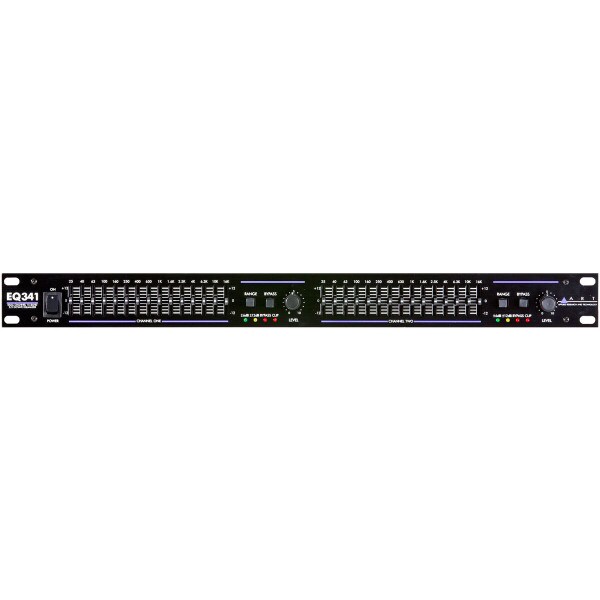

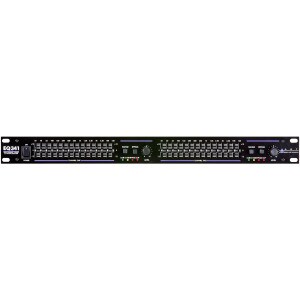

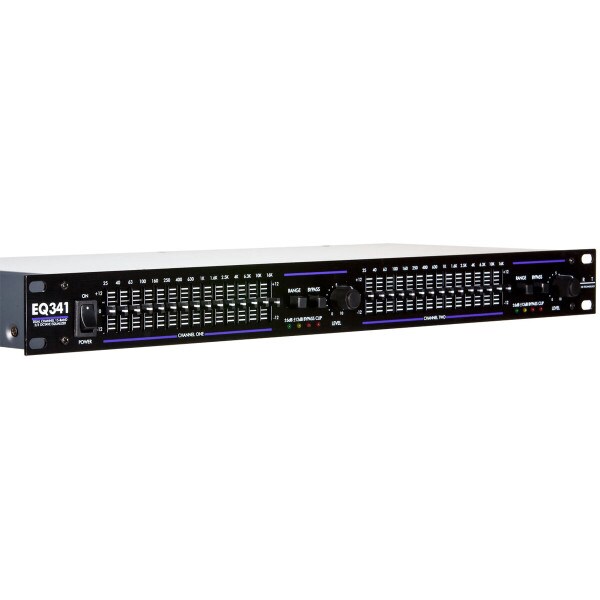

The Model 341 has the features and performance you need for live sound, recording studios, instrument racks, DJ systems or any applications requiring precise equalization. Designed to interface into any audio system. One year manufacturer warranty.

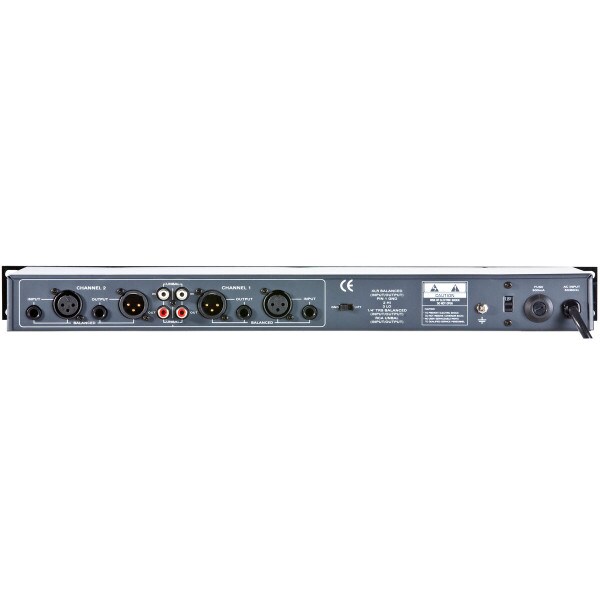

Features: • 20mm center detent sliders • Selectable boost/cut range of 6 dB or 12 dB • Active balanced XLR and 1/4" TRS, unbalanced RCA inputs (white) and outputs (red) • Variable input controls • Signal clipping indicators • Ground lift switch • Rugged all steel construction.
Specifications: • Frequency bands: 2 x 15, 2/3 octave, ISO spacing • Filter type: Constant Q, 3% center accuracy • Frequency response: 20 to 20,000 Hz (+0.5 dB) • THD: 0.01% • Signal-to-noise ratio: 94 dB • 1U rack space • Dimensions: 1-3/4" H x 19" W x 8-1/2" D • Net weight: 4-1/2 lbs.
Product Details | |
|---|---|
| Brand | ART |
| Model | EQ341 |
| Part Number | 245-882 |
| UPC | 840402011484 |
| Unit of Measure | Each |
| Weight | 7.1 |
