70V 30W Decora Style White Autotransformer Speaker Volume Control

Parts Express
Part #300-046

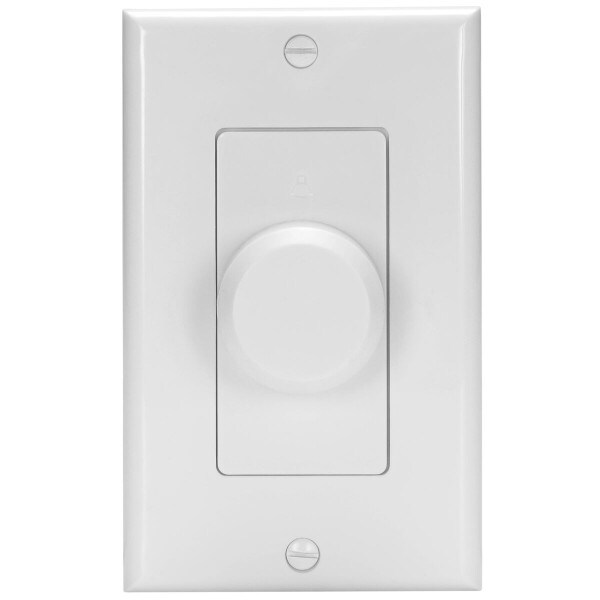

70V 30W Decora Style White Autotransformer Speaker Volume Control

Parts Express
Part #300-046
This white Decora style volume control is designed for 70V line PA speakers and features 10 steps of attenuation via detented control. Fits most standard single-gang electrical junction boxes.
Similar items that may interest you:
See all items in Attenuators / Auto-Transformers
Your Price: $24.98
MSRP: $39.99
Save $15.01 (38%)
Bulk Pricing
Quantity:Qty: 1-9 $24.98/ea
Quantity:Qty: 10+$20.35/ea
Order in the next 5 hr 55 min to ship today. Details

Only 10 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

70V 30W Decora Style White Autotransformer Speaker Volume Control

Decora style volume control is designed for 70 volt line PA speakers and features 10 steps of attenuation via detented control. Fits most standard single-gang electrical junction boxes. Screw type connectors accept up to 14 AWG wire for ease of installation. White in color. Frequency response: 35-20,000 Hz. 30 watt RMS power handling. Mounting depth: 2-1/16". Includes wall plate.

NOTE: It is possible to mount multiple volume controls in a multi-gang electrical box. Remove the knob and face plate, then the nut and washer. Rotate the assembly 90 degrees, the metal tab at the 3:00 position will now be in the 12:00 position. Reinstall the washer, nut, faceplate, and knob.

Product Details

BrandParts Express
Part Number300-046
UPC844632014413
Unit of MeasureEach
Weight0.7
