30 Watt Powered Bluetooth Speaker Package with 2-1/2" Full-Range Drivers

Parts Express
Part #300-7304

30 Watt Powered Bluetooth Speaker Package with 2-1/2" Full-Range Drivers

Parts Express
Part #300-7304
Model: 300-7304
This bundle includes all of the electronics needed to construct your own high-end powered Bluetooth speaker. We have bundled compatible amplifier, power supply, and driver components together to save you time shopping and almost $14 off the regular retail price.
Key Features
  • Includes a Bluetooth amplifier, wires, power supply, and drivers
  • Dayton Audio PC68-4 drivers feature smooth response with true full-range reproduction
  • The Dayton Audio KAB-215 amplifier provides 2 x 15 watts and includes Bluetooth
Your Price: $74.98
MSRP: $99.99
Save $25.01 (25%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

30 Watt Powered Bluetooth Speaker Package with 2-1/2" Full-Range Drivers

30 Watt Powered Bluetooth Speaker Package with 2-1/2" Full-Range Drivers

Parts express has put together all of the electronic components needed to build your own 30 watt powered Bluetooth speaker with 2-1/2" full range drivers. This kit is perfect for building a custom self-contained Bluetooth enabled speaker from the ground up or simply incorporating audio capability into any existing enclosure. Thanks to the convenience, ease of assembly, and great sound this kit is sure to impress!  Recommended enclosure volume for this package is 0.21 ft³ tuned to 70 Hz using 2 ports that are 1" diameter x 3.25" long.

Note: This is version of this package does require a connection to a power source. Part # 300-7300 is a wireless battery powered version of this kit.

Features:

  • Includes a Bluetooth amplifier, battery board, batteries, wires, power supply, and drivers
  • Dayton Audio PC68-4 drivers feature smooth response with true full-range reproduction
  • The Dayton Audio KAB-215 amplifier provides 2 x 15 watts and includes Bluetooth
  • Powered by 3 x 2,600 mAh Li-Ion batteries for long lasting run time

Customer Comments:

"For the prices it is probably the best sounding speakers on the market" - Byron M   ⋆⋆⋆⋆⋆
"Great all-in-one solution for building your unique wireless speaker project." - John M  ⋆⋆⋆⋆⋆
"Great and very loud! Just threw these in an intake tube for a vehicle and they sound amazing despite not having the proper size "box"." - Lloyd B    ⋆⋆⋆⋆⋆

Customer Projects:

About the Amplifier Board

The Dayton Audio KAB-215v2 2 x 15 watt Bluetooth amplifier board delivers high quality sound without drawing a lot power. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.

About the Drivers



The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. The Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications.

About the Bracket

The KAB-AB aluminum bracket makes it easy to securely mount the KAB boards and improve space efficiency . This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements.

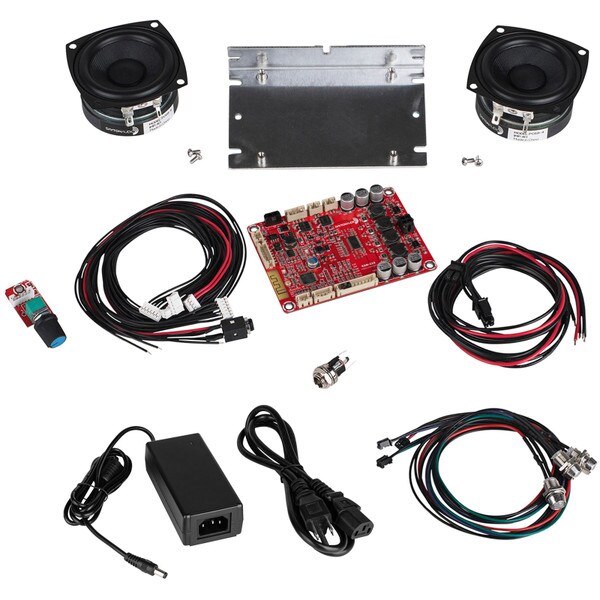

Kit Components:

Part #QTY.Description
325-5001Dayton Audio KAB-215v2 2 x 15W Class D Audio Amplifier Board with Bluetooth 5.0
295-150
2Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver
325-1141Dayton Audio KAB-AB L-type Aluminum Bracket for Bluetooth Amplifier Boards
120-057115V 4A DC Power Supply AC Adapter with 2.1 x 5.5mm Center Positive (+) Plug
325-1101Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards
325-1111Dayton Audio KAB-LED Red/Green/Blue LED Package for Bluetooth Amplifier Boards
090-501212.1mm Panel Mount DC Barrel Power Jack
081-4231#6 x 3/4" Deep Thread Pan Head Screws Black 16 Pcs.
Driver Specifications:
  • Impedance: 4 Ohm
  • Re: 3.8 Ohm
  • Le: 0.29 mH
  • Fs: 117.1Hz
  • Qms: 2.49
  • Qes: 0.87
  • Qts: 0.65
  • Mms: 1.7g
  • Cms: 1.07mm/N
  • Sd: 21.2 cm²
  • Vd: 4.2 cm³
  • Bl: 2.4 Tm
  • Vas: 0.7 liters
  • Xmax: 2.0 mm
  • VC Diameter: 0.75"
  • SPL: 86.1 dB @ 2.83V/1m
  • RMS Power Handling: 20 watts
  • Usable Frequency Range: 120 - 17,000 Hz

Product Details

BrandParts Express
Model300-7304
Part Number300-7304
UPC848864050775
Weight2.84

Product Specifications

Cabinet OptionsWithout Cabinet
ConfigurationFull-range
Input RatingPowered
Speaker TypeBluetooth
Woofer Diameter2.5"
