3-Prong AC Plug with Built-In Light

1 Question, 3 Answers or
Parts Express
Part #110-302

3-Prong AC Plug with Built-In Light

Parts Express
Part #110-302
1 Question, 3 Answers or

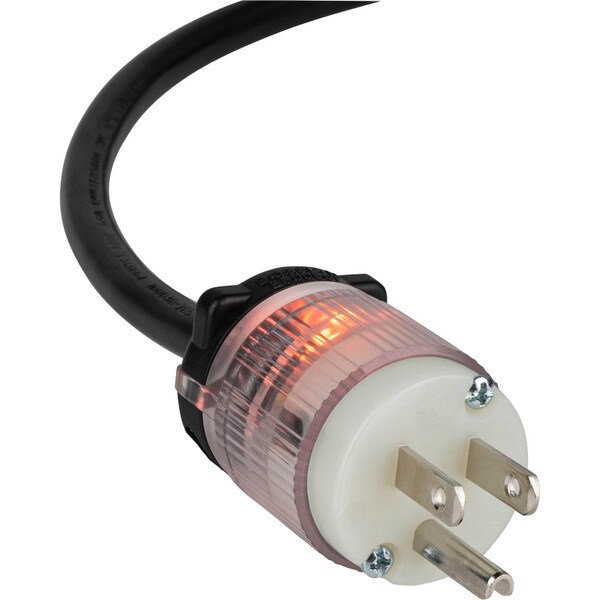

Replace old worn-out AC plugs on power or extension cords with this lighted NEMA 5-15 prong connector. Light indicates power flowing to your AC appliance, power tool or audio/video equipment.

Key Features
  • Easy no solder or crimping assembly
  • Ideal for making or replacing plugs on extension cords

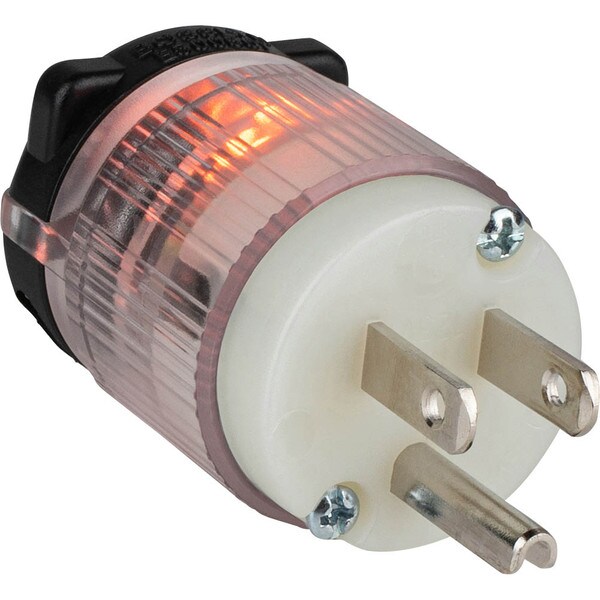

  • Amber neon light indicates live AC power flowing to your AC appliance, power tool or audio/video equipment

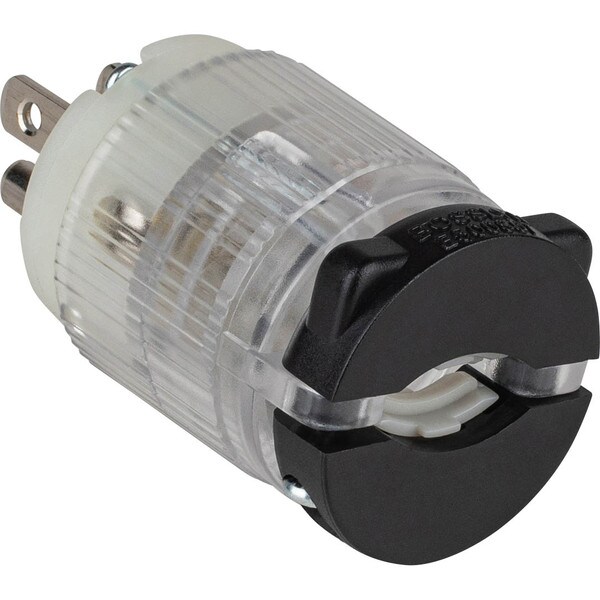

  • Rear cable entry clamp automatically adjusts to secure 18-12 AWG cable
  • Rugged nylon body with clear polycarbonate shell for long lasing performance
  • Standard NEMA 5-15P Male plug
  • cUL listed for safety
Your Price: $11.98
MSRP: $14.99
Save $3.01 (20%)
Bulk Pricing
Order in the next 4 hr 2 min to ship today. Details

418In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

3-Prong AC Plug with Built-In Light

Use this lighted NEMA 5-15 connector to replace AC plugs on power tools, appliances and audio/video equipment. Add this plug to the cord of all your AC equipment and you’ll learn fast if you have a dead AC wall outlet. There’s nothing more frustrating than thinking your equipment has a problem, and the last thing you check is the wall outlet. If you have this lighted AC plug on all your equipment, you’ll save time and money knowing that all you have to do is reset a breaker or fix a loose wire.

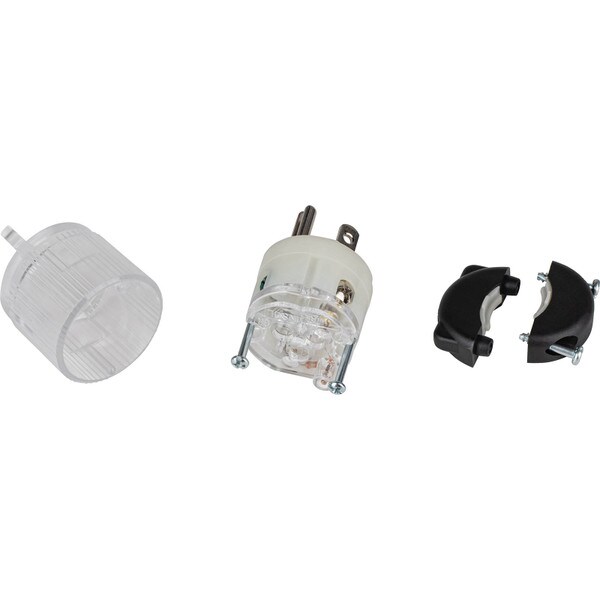

The plug’s color-coded screw terminals make it easy to install and the cable entry clamp keeps it all securely in place. Make sure the first thing you do is slide the outer clear shell onto the cable. Strip off 1-1/4" of the jacket. Then strip the individual conductors 1/5", insert the wire into the correct terminals and screw them down. The bronze screw is for the black hot wire, the silver-colored screw is for the white neutral wire and the green screw is for the ground wire. Screw the AC plug into the clear outer shell and use the black screw down clamps to secure the outer jacket into the shell. The clamp’s design holds 18 to 12 AWG 3-conductor round AC cable.

Specifications: • Voltage: 125 VAC • Current: 15A • Sold per: each • AC prongs: Nickle coated brass • Terminals: Brass • Termination style: Clamping screw • Conductor entry hole: 0.20" (5 mm) • Entry hole without clamp: 0.67" (17 mm) • Entry hole with clamp: 0.16" to 0.54" (4 to 13.7 mm) • Dimensions without prongs: 2" L x 1.5" Dia. with cable clamp.

Product Details

BrandParts Express
Part Number110-302
UPC848864069869
Unit of MeasureEach
Weight0.15

Product Specifications

ConfigurationNEMA L5-15
Current Rating15A
Power Connector TypeCable Mount
