BUYOUT 1" Black PC Board Mount Mini Speaker

Factory Buyouts
Part #299-016

BUYOUT 1" Black PC Board Mount Mini Speaker

Factory Buyouts
Part #299-016
Designed for mounting directly to a PCB and breadboard friendly this 8 ohm 1" mini speaker is perfect for small sound enabled projects and prototypes.
Key Features
  • Small 1.18" (30mm) diameter housing fits almost anywhere

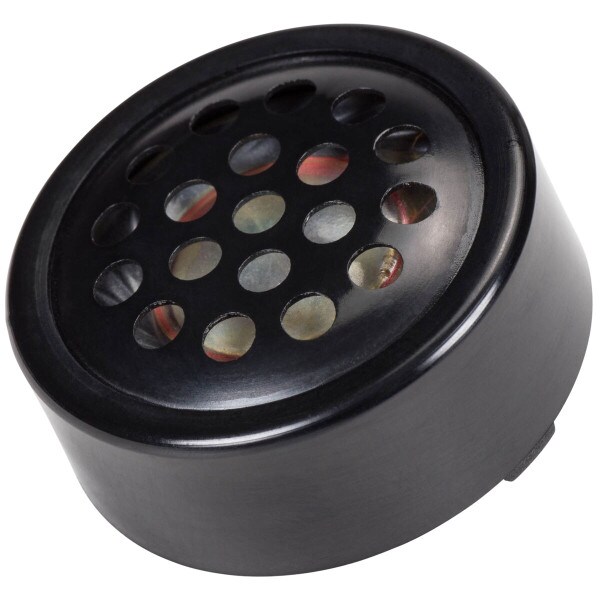

  • Protective plastic housing with grill prevents damage
  • Reliable Mylar cone with 1/2" voice coil

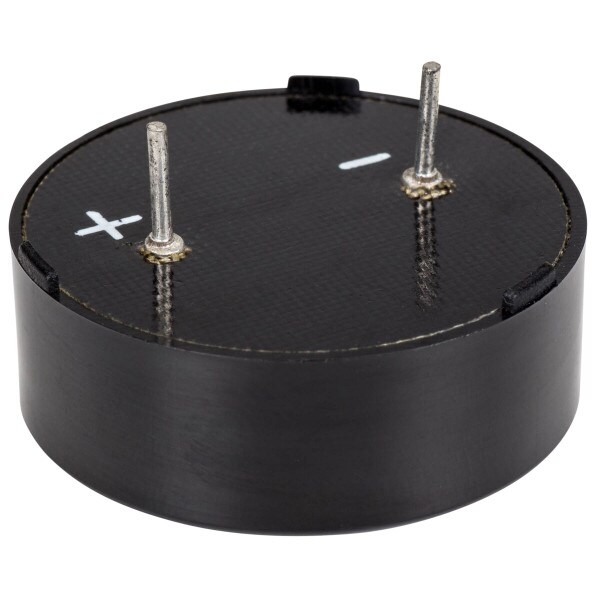

  • Mounting pins are 0.6" (15mm) apart for use on printed circuit boards
  • Perfect for human voice frequency reproduction
BUYOUT $0.79
MSRP: $4.99
Save $4.20 (84%)
Bulk Pricing
Order in the next 13 hr 13 min to ship today. Details

5880In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1" Black PC Board Mount Mini Speaker

This PCB mount speaker is great for projects where you need something that sounds better than a piezo buzzer but have no room for a larger speaker. It's limited frequency response makes it perfect for ultra clean human voice reproduction. This 1.18" (30mm) diameter speaker is encased in a plastic housing with an integrated grill. The solder pins on the back are 0.6" (15mm) apart making this an easy fit on breadboards for prototypes.

Specifications: • Power handling: 1 watt RMS/3 watts max (700-10,000 Hz) • Impedance: 8 ohms • VCdia: 1/2" • Frequency response: 700-10,000 Hz • Dimensions: 1.18" dia. x 0.45" H.

Product Details

BrandFactory Buyouts
Part Number299-016
UPC848864020044
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1"
Power Handling (RMS)1 Watts
Power Handling (MAX)3 Watts
Impedance8Ω
Frequency Response700 to 10,000Hz
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)1000Hz
DC Resistance (Re)7.57Ω
Voice Coil Inductance (Le)0.544mH

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm

Mounting Information

Overall Outside Diameter1.18"
Baffle Cutout Diameter1.18"
Depth0.45"
