CLEARANCE miniDSP 2x4 HD Kit Digital Signal Processor Assembled Board

miniDSP
Part #230-326

CLEARANCE miniDSP 2x4 HD Kit Digital Signal Processor Assembled Board

miniDSP
Part #230-326
Model: miniDSP 2x4 HD Kit
The miniDSP 2x4 kit HD is jam-packed with tried and proven audio processing functionality like flexible parametric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad programming, and delay on each of the 4 output channels. Combined with plug-in software for programming, you can configure the on board audio processing filters in real time from a PC or Mac computer.
Key Features
  • Plug and play USB driver and real time software configuration using miniDSP plug-ins
  • Device does not required a PC once configured
  • USB powered and a wide range of DC power options
  • Unbalanced inputs switchable with a jumper
  • XMOS Xcore200 for USB control and bidirectional audio streaming
60 Day No Hassle Return Policy

Overview

miniDSP 2x4 HD Kit Digital Signal Processor Assembled Board

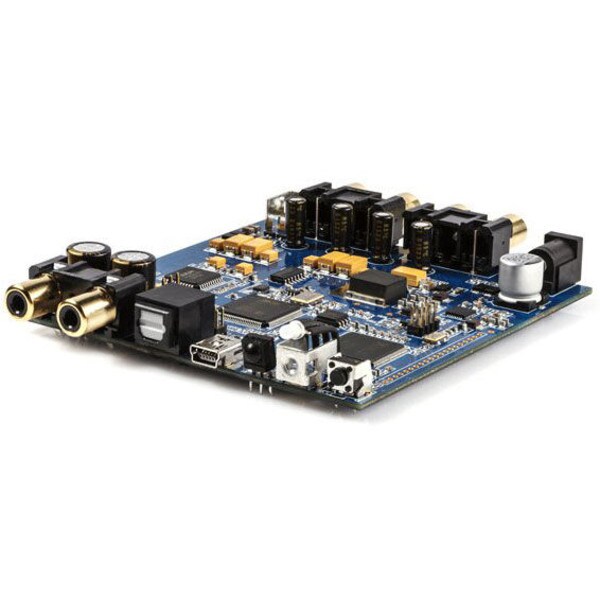

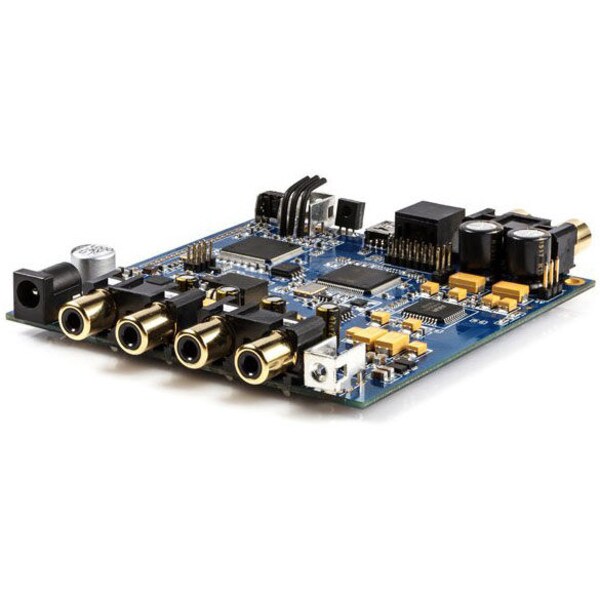

The miniDSP 2x4 kit HD is a low cost, low power DIY Digital Signal Processor (DSP) board with two analog inputs and four analog outputs. Typically connected between your analog source and a multi-channel amplifier, this pocket size module packs all the filter tools you need to get started with tuning your 2 way or 4 way subwoofer.

At the core of the miniDSP 2x4 kit HD solution is the combination of intelligent onboard firmware combined with the miniDSP flexible software plug-in. May it be a PC or Mac, the first step will involve programming the device over the driverless USB 2.0 port. Using the onboard Digital Signal Processor (DSP), you can configure the onboard parametric/graphic equalizers (PEQ), crossovers, levels and time alignment in real time. All settings are automatically stored and reloaded at boot up.

Software plug-in (sold separately): miniDSP 2x4 HD Kit plug

Specifications • Digital signal processor engine: 32-bit floating point analog devices SHARC ADSP21489 / 400 MHz • Internal processing resolutions and sample rate: 32 bit / up to 192 kHz • Analog audio input/output: Unbalanced RCA • Maximum input level: 2Vrms / 4Vrms (jumper-selectable) • Maximum level output: 2Vrms • Dynamic: 103 dB • Input impedance: 10 K ohms • Output impedance: 560 ohms • Power supply: 12 VDC single supply, 2.1 mm round plug, 2.5W • Dimensions: 0.63" H x 4.67" W x 3.66" D.

Product Details

BrandminiDSP
ModelminiDSP 2x4 HD Kit
Part Number230-326
UPC848864032900
Unit of MeasureEach
Weight1.2
