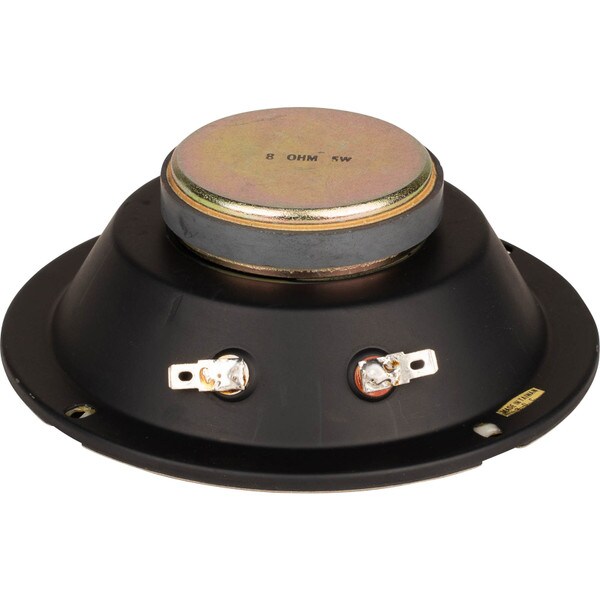

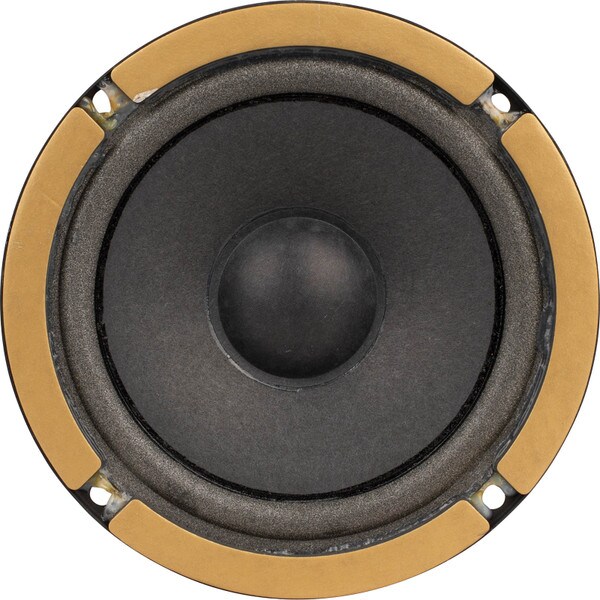

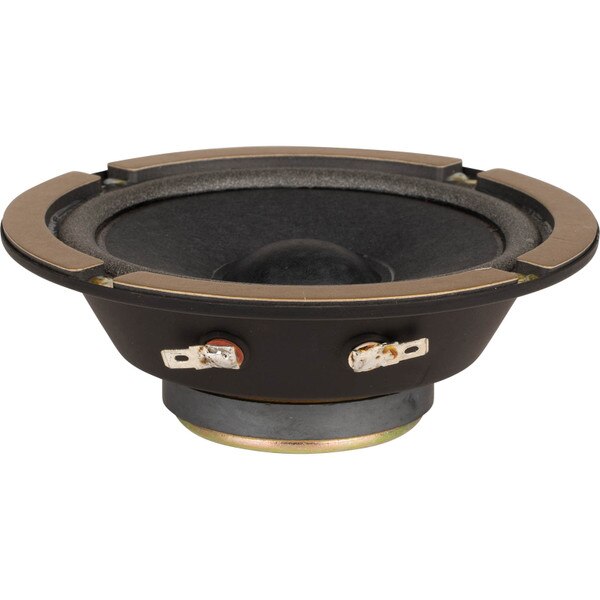

The Z5G0285W 5" Sealed-Back Midrange Speaker utilizes a paper cone, foam surround and sealed frame for simple installation in a 3-way speaker system.
The Z5G0285W 5" Sealed-Back Midrange Speaker utilizes a paper cone, foam surround and sealed frame for simple installation in a 3-way speaker system. This is a great choice as a replacement, or an inexpensive option in your next budget DIY design.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | Z5G0285W |
| Part Number | 299-4318 |
| UPC | 848864074030 |
| Unit of Measure | Each |
| Weight | 0.8 |
Product Specifications | |
|---|---|
| Nominal Diameter | 5" |
| Bolt Circle Diameter | 4.75 |
| Power Handling (RMS) | 5 Watts |
| Power Handling (MAX) | 10 Watts |
| Impedance | 8Ω |
| Frequency Response | 600 to 8,000Hz |
| Sensitivity | 90.81dB 2.83V/1m |
| Voice Coil Diameter | 0.75" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 592.2Hz |
| DC Resistance (Re) | 6.841Ω |
| Voice Coil Inductance (Le) | 0.274mH |
| Surface Area of Cone (Sd) | 73.9cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Foam |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 5.125" |
| Baffle Cutout Diameter | 4.375" |
| Depth | 1.75" |
| # Mounting Holes | 4 |
