BUYOUT Sony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm

Factory Buyouts
Part #299-548

BUYOUT Sony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm

Factory Buyouts
Part #299-548
Model: Z152948311
The common size and magnetically shielded motor of the Sony 1-529-483-11 3" full-range make it ideal for replacing drivers in a variety of electronic devices. With smooth response from 180 to 10,000 Hz, this driver can produce a natural and full sound.
Key Features
  • Flat response up to 10,000 Hz for excellent vocal response and detail
  • Shielded motor assembly for use with sensitive electronic devices

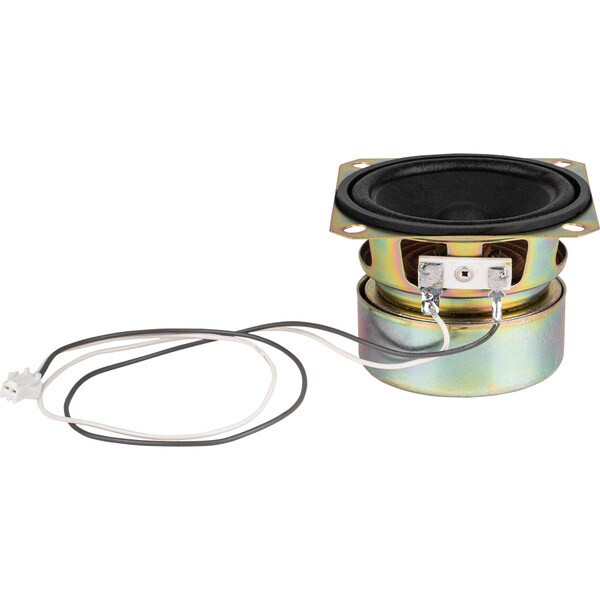

  • 15" pigtail with connector for easy wire connection without need to solder to the driver
  • Paper dust cap is attached directly to the voice coil for improved high frequencies
BUYOUT $3.88
Bulk Pricing
Quantity:Qty: 1-9 $3.88/ea
Quantity:Qty: 10-49 $3.55/ea
Quantity:Qty: 50+$3.15/ea
Ships next business day. Details

7020In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sony 1-529-483-11 3" Shielded Full-Range Speaker 8 Ohm

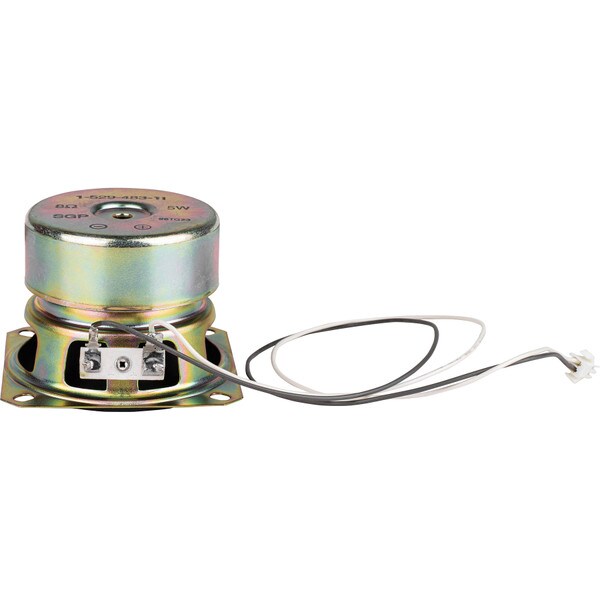

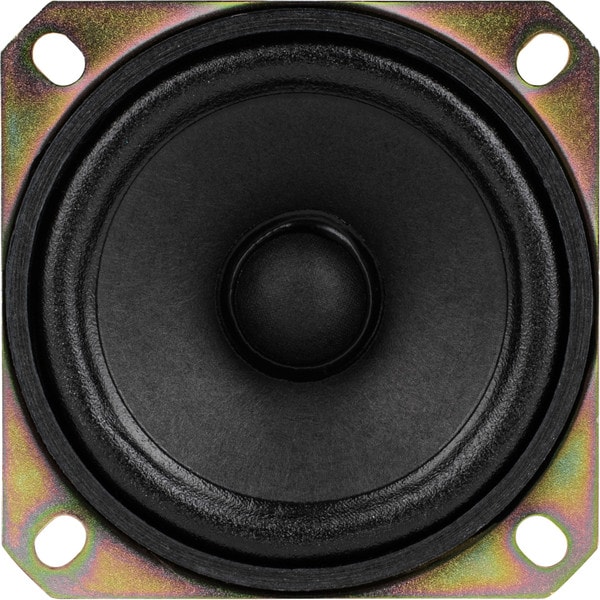

Sony's 1-529-483-11 3" full-range shielded speaker has a common sized frame making it perfect for replacing blown or damaged drivers in a variety of electronics. The untreated paper cone and cloth surround will deliver smooth response, and the large diameter flat spider allow plenty of mechanical excursion capability to avoid catastrophic damage. For improved high frequency response on and off-axis the dust cap in attached directly to the voice coil former. With a magnetically shielded motor, this driver can even be used near sensitive electronic components with causing any interference. For connection, a 15" pigtail with connector is pre-attached to the terminals making it easy to connect this driver to your power source.

Product Details

BrandFactory Buyouts
ModelZ152948311
Part Number299-548
UPC848864062037
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.5
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8Ω
Frequency Response180 to 10,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter0.688"

Thiele-Small Parameters

Resonant Frequency (Fs)163Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)1.4
Total Q (Qts)1.1
Compliance Equivalent Volume (Vas)0.027ft³
Mechanical Compliance of Suspension (Cms)0.69mm/N
BL Product (BL)2.56T·m
Diaphragm Mass Inc. Airload (Mms)1.38g
Maximum Linear Excursion (Xmax)0.5mm
Surface Area of Cone (Sd)28.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.0625"
Baffle Cutout Diameter2.875"
Depth2.25"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.03ft³
Sealed F3166Hz
Vented Volume0.18ft³
Vented F3104Hz
