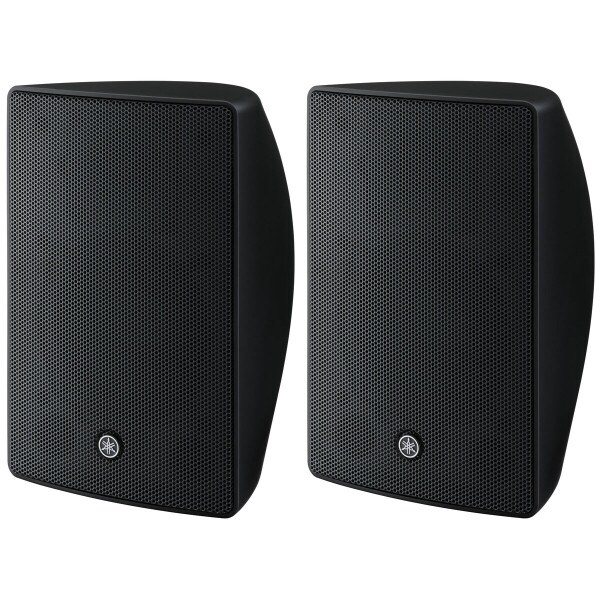

Yamaha VXS5 5-1/4" 70V / 100V Surface Mount Speaker Pair - BlackCommercial durability with Yamaha sound quality

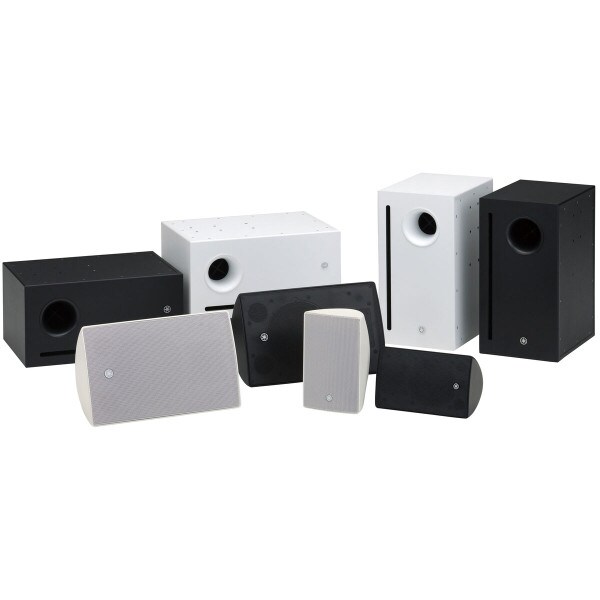

Yamaha developed the VXS Series speakers to address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clear announcements for public address applications. They feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction. Enclosures are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected materials with just the right tensile strength, and designed with optimized tuning to offer a firm, tight low-end. From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.
Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction - effectively enhancing sound quality and speaker performance without disturbing the interior decor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.
Ready to install - quickly, safely, and hassle-free

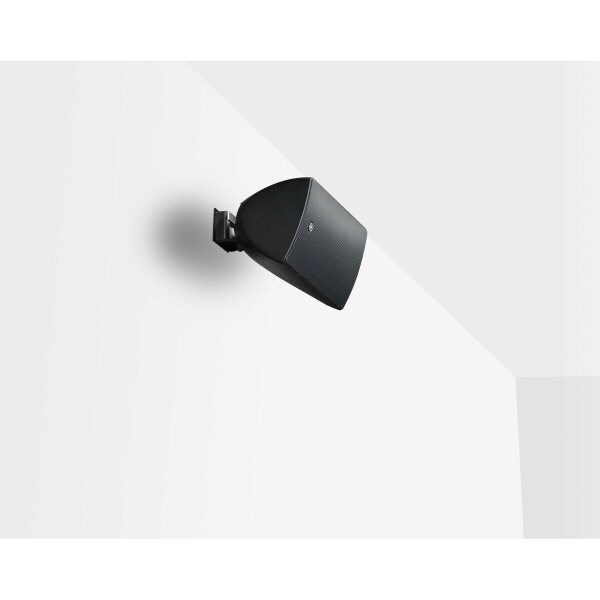

VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.
Specifications: • Speaker type: two-way, 5.25" woofer and 0.75" dome tweeter • Power rating: 75 watts noise/150 watts program/300 watts max • Coverage angle: 120° H x V • 70V tap settings: 30W, 15W, 7.5W, 3.8W, 8 ohm bypass • 100V tap settings: 30W, 15W, 7.5W, 8 ohm bypass • Frequency response: 62 - 20,000 Hz • Sensitivity: 89 dB (1W/1m) • Max SPL: 114 dB (calculated) • Connector: Euroblock x 1 (4P, input+loop, 12 AWG max wire size) • Dimensions: 6.9" x 11" H x 6.4" (176 x 280 x 163 mm)• Weight: 7.9 lbs. (3.6 kg) • Sold in pairs.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
