  • Wavecor TW030WA14 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 8 Ohm

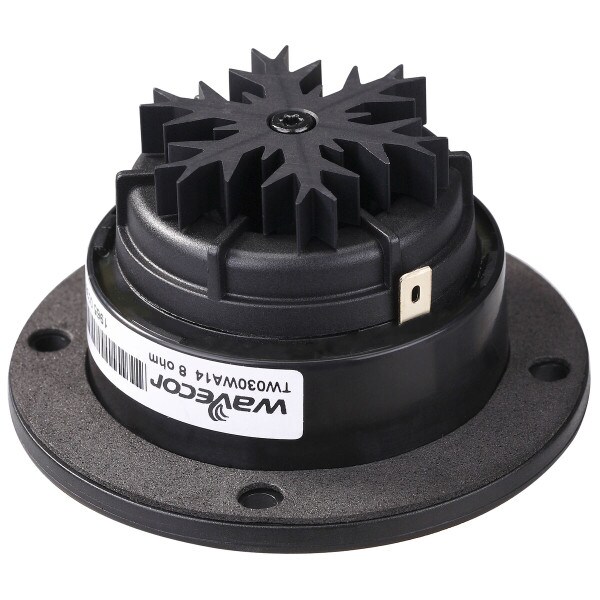

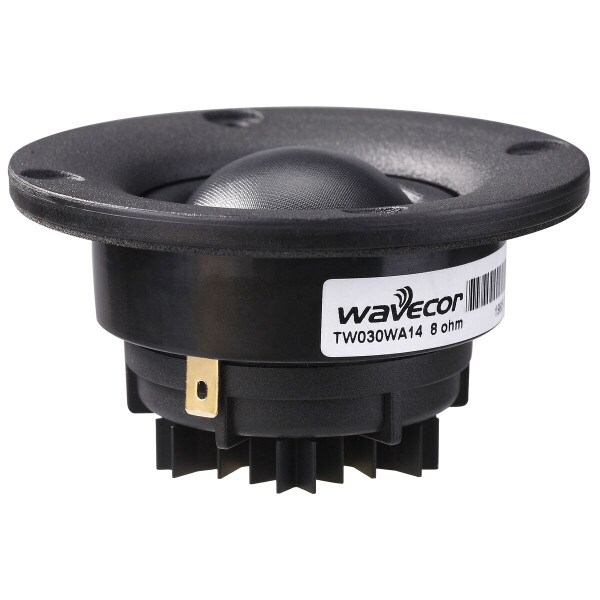

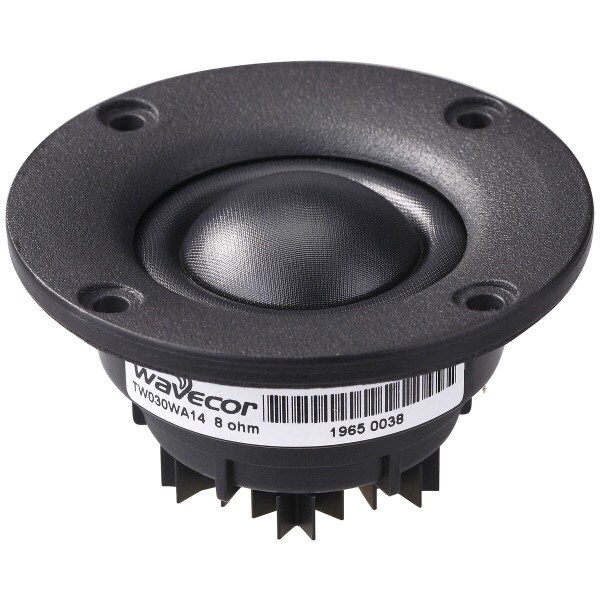

Wavecor TW030WA14 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 8 Ohm

Wavecor
Part #298-1126

Wavecor TW030WA14 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 8 Ohm

Wavecor
Part #298-1126
Model: TW030WA14
The Wavecor TW030WA14 is a true high-end tweeter designed for the most demanding applications featuring an array of performance improving details that participate in obtaining low resonance frequency, low distortion and very high frequency extension.
Key Features
  • Vented through to a damped rear chamber for low resonance frequency and low distortion
  • 30 mm voice coil design with high power handling, and low resonance frequency
  • Precision-coated textile diaphragm for improved consistency and high-frequency extension
  • Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
  • Flexible lead wires for higher power handling and larger excursion
  • Gold plated terminals to prevent oxidation and ensure long-term reliable connection
  • Rear heat sink for increased long term power handling
Your Price: $118.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 5 hr 1 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Wavecor TW030WA14 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 8 Ohm

The Wavecor TW030WA14 is a true high-end tweeter designed for the most demanding applications featuring an array of performance improving details that participate in obtaining low resonance frequency, low distortion and very high frequency extension.

The low resonant frequency of this tweeter makes the TW030WA14 a natural candidate for high-end 2-way speaker systems.

Product Details

BrandWavecor
ModelTW030WA14
Part Number298-1126
UPC848864054643
Unit of MeasureEach
Weight0.35

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.60
Tweeter TypeSoft Dome
Power Handling (RMS)35 Watts
Impedance
Frequency Response2,000 to 30,000Hz
Sensitivity90.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)715Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)59mH
Mechanical Q (Qms)2.37
Electromagnetic Q (Qes)2.31
Total Q (Qts)1.17

Mounting Information

Overall Outside Diameter2.99"
Depth2.28"
