Wavecor SW223BD02 8-3/4" Black Aluminum Cone Subwoofer 4 Ohm
Wavecor
Part #298-1064
Wavecor SW223BD02 8-3/4" Black Aluminum Cone Subwoofer 4 Ohm
Wavecor
Part #298-1064
Model: SW223BD02

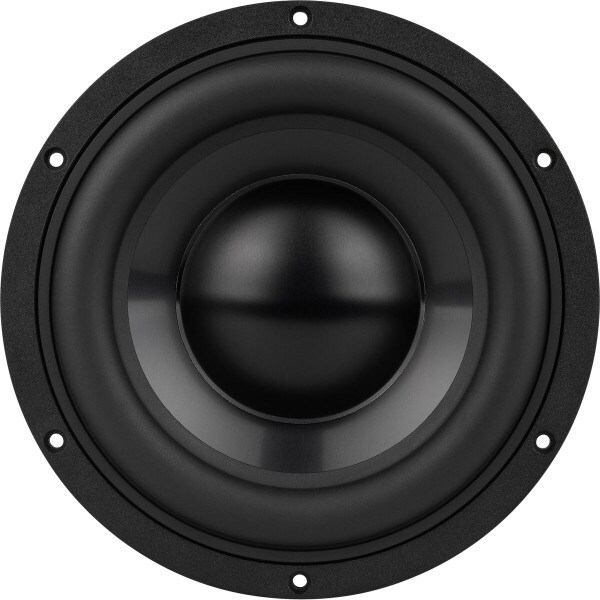

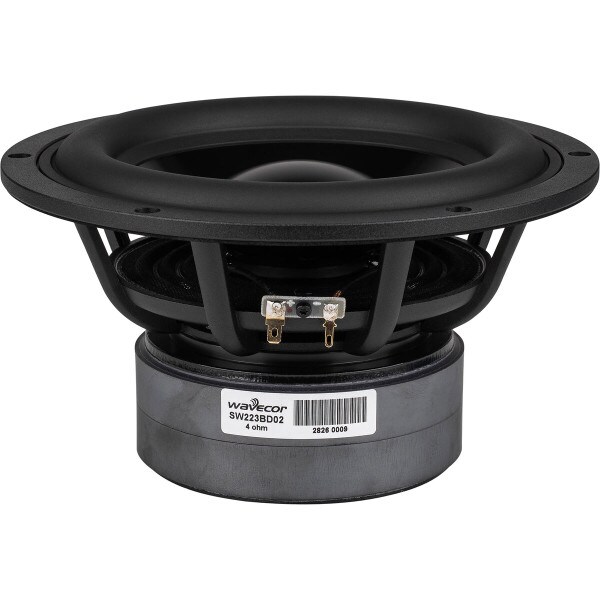

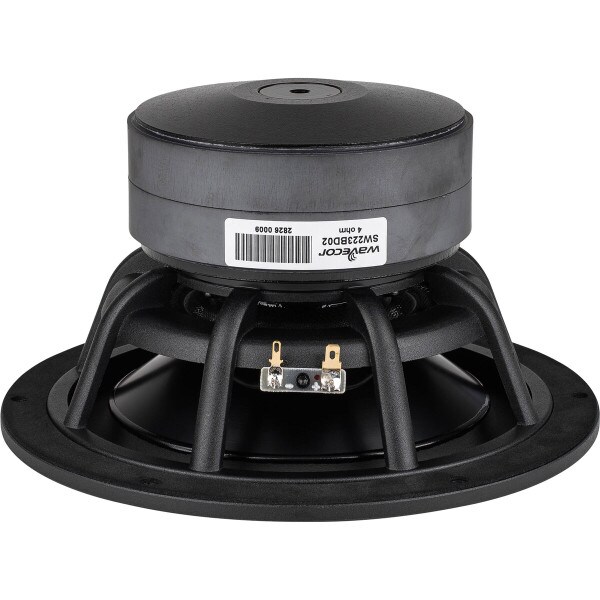

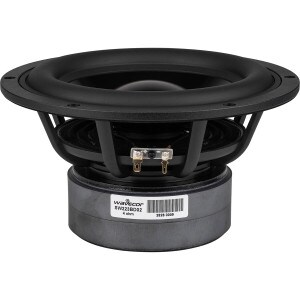

The Wavecor SW223BD02 is an 8-3/4" aluminum cone subwoofer that was designed specifically for high performance compact subwoofer applications where sound quality and low distortion are the priorities. The SW223BD02 utilizes balanced drive motor technology for dramatically reduced distortion.
Key Features
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Very rigid black aluminum cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
- Large motor with 2” voice coil diameter for better control and power handling
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Conex spider for better durability under extreme conditions
