Visaton SC 4.7 ND Full-Range Driver 8 Ohm

Visaton
Part #292-592

Visaton SC 4.7 ND Full-Range Driver 8 Ohm

Visaton
Part #292-592
Model: SC 4.7 ND

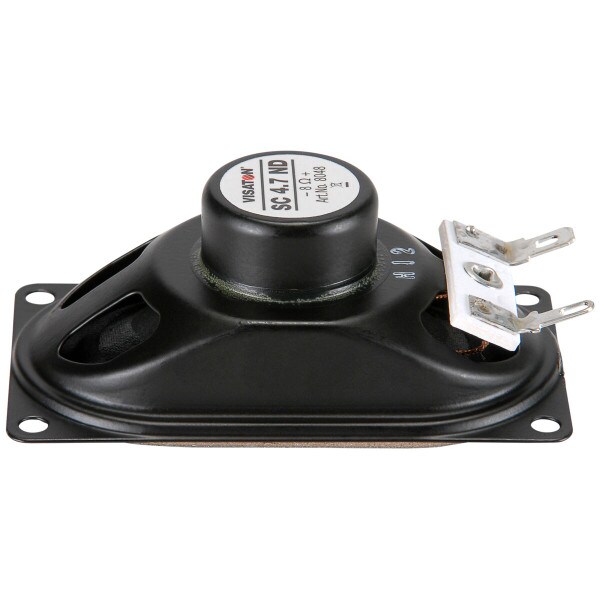

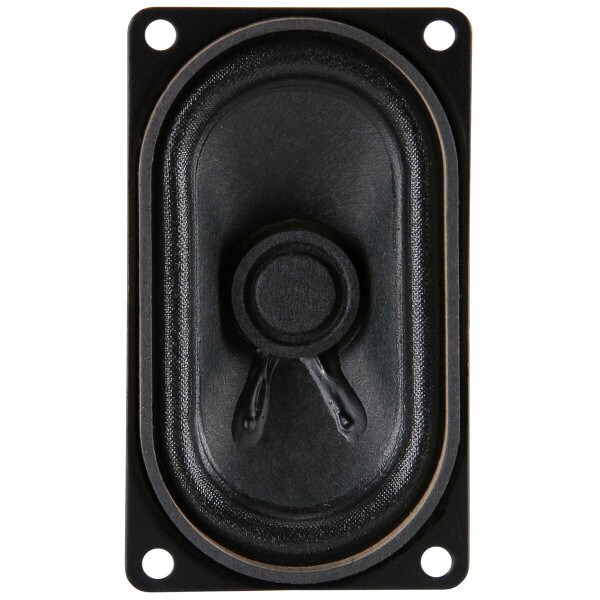

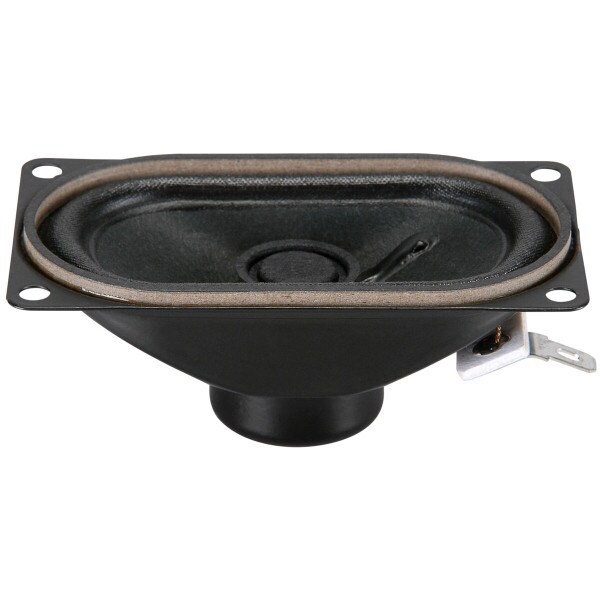

Visaton's SC 4.7 ND 8 ohm driver is an economical full-range driver that features a narrow oval shape, a neodymium motor, a paper cone, a front gasket, and a steel frame.
Key Features
  • Paper cone with foam surround for linear frequency response
  • Rugged stamped steel frame
  • High-energy neodymium magnet motor
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $7.31
MSRP: $9.99
Save $2.68 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $7.31/ea
Quantity:Qty: 10-24 $7.09/ea
Quantity:Qty: 25+$6.79/ea
Ships next business day. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton SC 4.7 ND Full-Range Driver 8 Ohm

Engineers, designers, and integrators will benefit from how effortlessly Visaton's SC 4.7 ND 8 speaker fits into modern audio applications where small size requirements dictate speaker design.

The SC 4.7 ND features an oval design that maximizes cone area for high output, while fitting into narrow spaces. A paper cone and foam surround combine to maintain efficiency without sacrificing frequency response.

Product Details

BrandVisaton
ModelSC 4.7 ND
Part Number292-592
Unit of MeasureEach
Weight0.09

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance8Ω
Frequency Response220 to 20,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)360Hz
DC Resistance (Re)7.7Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)5.31
Electromagnetic Q (Qes)8.34
Total Q (Qts)3.24
BL Product (BL)1.12T·m
Maximum Linear Excursion (Xmax)0.01mm
Surface Area of Cone (Sd)16cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.80" x 1.61"
Baffle Cutout Diameter2.56" x 1.38"
Depth1.06"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.006ft³
Sealed F3306.1Hz
