NEW Visaton PAW25-8 10" Midrange Driver 8 Ohm

Visaton
Part #292-7831

NEW Visaton PAW25-8 10" Midrange Driver 8 Ohm

Visaton
Part #292-7831
Model: PAM 25

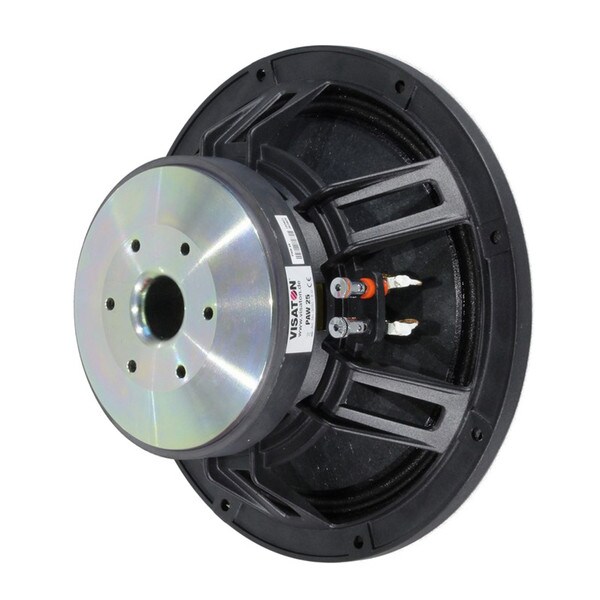

The Visaton PAW25-8 is a 25 cm (10") bass-midrange driver engineered for high-power public address (PA) applications, delivering robust and dynamic sound reproduction.

Key Features
  • Rated power handling of 300 W (maximum 450 W) for high-power applications
  • Mean sound pressure level of 92 dB (2.83 V/1 m) for efficient audio output
  • Frequency response from 52 Hz to 4,200 Hz for wide-range sound reproduction
  • Resonance frequency at 52 Hz for deep bass performance
  • Paper membrane for natural sound characteristics
  • 65 mm voice coil for high power handling
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $112.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $112.98/ea
Quantity:Qty: 10+$107.33/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PAW25-8 10" Midrange Driver 8 Ohm

The PAW25-8's combination of high power handling, efficient cooling mechanisms, and robust construction makes it an excellent choice for demanding PA systems requiring reliable and high-quality bass-midrange sound reproduction.

Technical Data

  • Cm: 0.24 mm/N
  • Rated power: 300 W
  • Maximum power: 450 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: fu–4200 Hz
    (fu: Lower cut-off frequency depending on cabinet)
  • Mean sound pressure level: 92 dB (2.83 V/1 m)
  • Maximum linear displacement: ±3.5 mm
  • Excursion limit: ±8 mm
  • Resonance frequency fs: 52 Hz
  • Height of front pole-plate: 8 mm
  • Voice coil diameter: 65 mm
  • Height of winding: 15 mm
  • Cutout diameter: 230 mm
  • Net weight: 3.61 kg
  • D.C. resistance Rdc: 6.5 Ohm
  • Mechanical Q factor Qms: 9.59
  • Electrical Q factor Qes: 0.34
  • Total Q factor Qts: 0.33
  • Equivalent volume Vas: 44 l
  • Effective piston area Sd: 353 cm²
  • Dynamically moved mass Mms: 37.6 g
  • Force factor Bxl: 15.6 Tm
  • Inductance of the voice coil L: 0.9 mH
  • Connections: Spring terminal

Product Details

BrandVisaton
ModelPAM 25
Part Number292-7831
Unit of MeasureEach
Weight7.95

Product Specifications

Nominal Diameter10"
Power Handling (RMS)300 Watts
Power Handling (MAX)450 Watts
Impedance8Ω
Sensitivity92dB 2.83V/1m
Voice Coil Diameter2.56"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)9.59
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)1.55ft³
BL Product (BL)15.6T·m
Diaphragm Mass Inc. Airload (Mms)37.6g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)353cm²

Mounting Information

# Mounting Holes8
