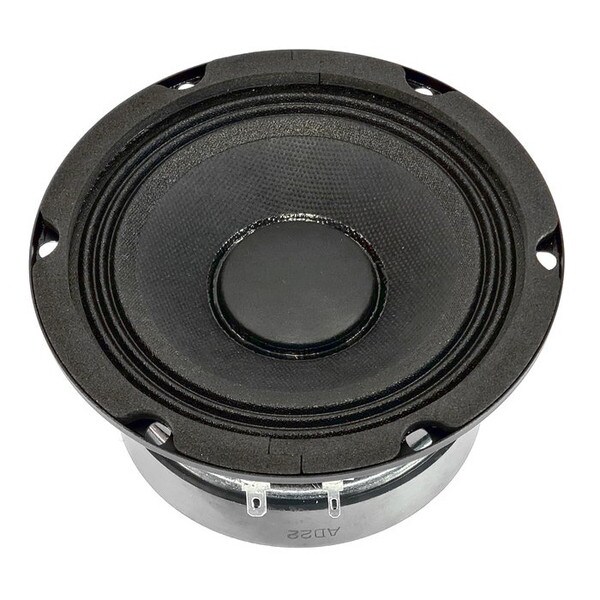

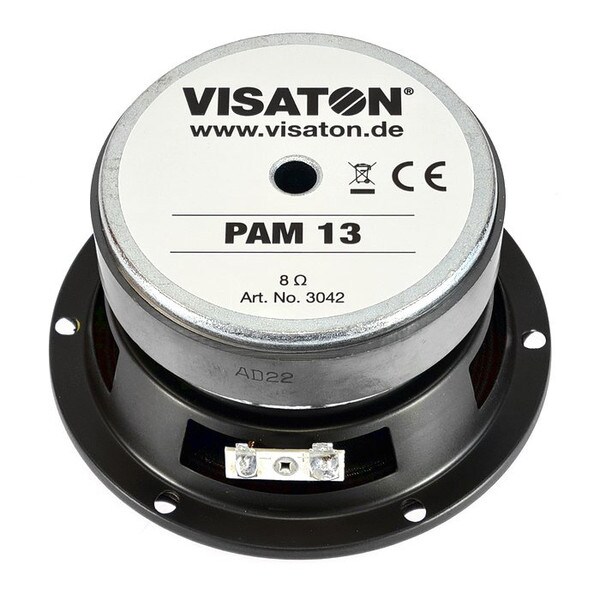

NEW Visaton PAM13-8 5" Midrange Driver 8 Ohm

Visaton
Part #292-7830

NEW Visaton PAM13-8 5" Midrange Driver 8 Ohm

Visaton
Part #292-7830
Model: PAM 13

The Visaton PAM13-8 is a 13 cm (5") midrange driver designed for public address (PA) systems, providing clear and dynamic sound reproduction. Its robust construction and high efficiency make it ideal for demanding audio applications, delivering reliable performance with natural sound characteristics.

Key Features
  • Large ferrite magnet for improved driver sensitivity
  • Paper membrane with fabric surround for natural and durable sound performance
  • Rated power handling of 60 W for high-power applications
  • Wide frequency response from 85 Hz to 15,000 Hz for balanced midrange clarity
  • Standard cutout diameter of 115 mm for easy integration into enclosures
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $62.38
Bulk Pricing
Quantity:Qty: 1-9 $62.38/ea
Quantity:Qty: 10+$61.13/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton PAM13-8 5" Midrange Driver 8 Ohm

The PAM13-8 combines high efficiency and durable materials to ensure consistent performance in PA systems and other midrange-focused applications. Its wide frequency response and robust construction make it a dependable choice for professional audio installations.

Technical Data

  • Rated power: 60 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 85–15000 Hz
  • Mean sound pressure level: 88 dB (1 W/1 m)
  • Resonance frequency fs: 135 Hz
  • Voice coil diameter: 38 mm
  • Cutout diameter: 115 mm
  • Net weight: 1.45 kg
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (–)

Product Details

BrandVisaton
ModelPAM 13
Part Number292-7830
Unit of MeasureEach
Weight3.2

Product Specifications

Nominal Diameter5"
Power Handling (RMS)60 Watts
Impedance
Frequency Response85 to 15000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)135Hz

Mounting Information

# Mounting Holes8
