Visaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm

Visaton
Part #292-594

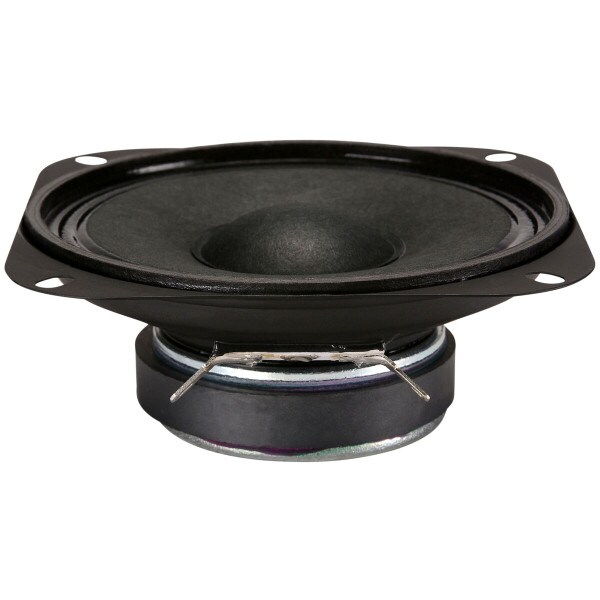

Visaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm

Visaton
Part #292-594
Model: M 10
Visaton's M 10 sealed back 4" midrange is designed for critical midrange reproduction without the need for an enclosure.
Key Features

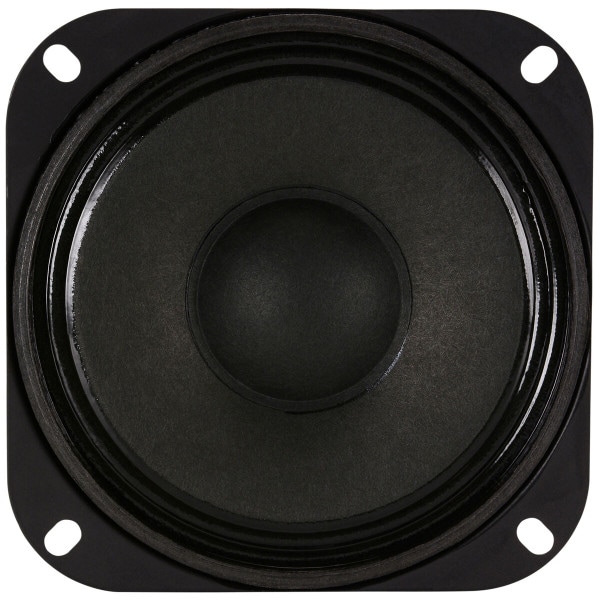

  • Paper cone and dustcap with cloth accordion surround
  • Natural vocal reproduction
  • Handles up to 80 watts RMS with 12 dB, 800 Hz high pass filter

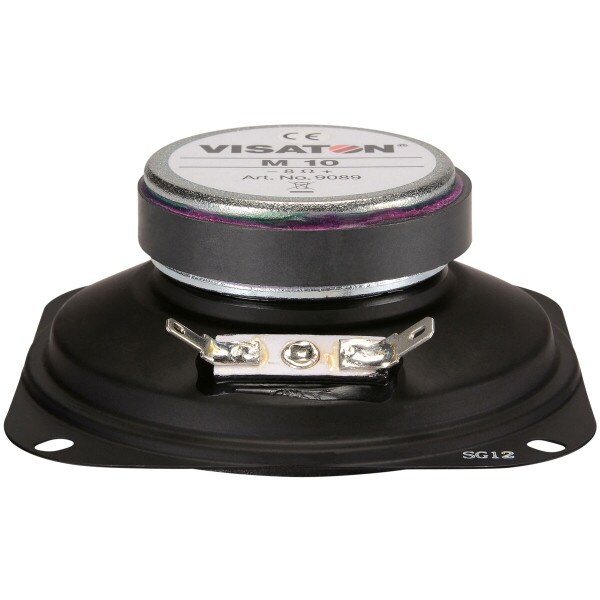

  • Closed back design, requires no enclosure
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $16.26
MSRP: $21.99
Save $5.73 (26%)
Bulk Pricing
Quantity:Qty: 1-9 $16.26/ea
Quantity:Qty: 10-24 $15.78/ea
Quantity:Qty: 25+$15.10/ea
Order in the next 9 hr 58 min to ship today. Details

78In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm

Designed for reproducing the human voice, Visaton's M 10 midrange speaker has very linear response from 1,000 to 5,000 Hz. The closed back frame design eliminates the need for a housing, making it a great drop-in replacement in three way cabinets without a separate enclosure for a mid, where a larger woofer could otherwise hurt the performance of a conventional midrange.

High sensitivity and power handling combine for more output than other midrange drivers, while the paper cone and cloth accordion surround create a more natural, classic sound that is pleasing to most peoples' ears. A steel mounting plate eliminates the need for a baffle recess.

Product Details

BrandVisaton
ModelM 10
Part Number292-594
Unit of MeasureEach
Weight0.73

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.6
Power Handling (RMS)80 Watts
Power Handling (MAX)100 Watts
Impedance8Ω
Frequency Response450 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)700Hz
Maximum Linear Excursion (Xmax)1.5mm

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.01" x 4.01"
Baffle Cutout Diameter3.7"
Depth1.53"
# Mounting Holes4
