Visaton K50 SQ 2" Speaker 8 ohm

Visaton
Part #292-543

Visaton K50 SQ 2" Speaker 8 ohm

Visaton
Part #292-543
Model: K50

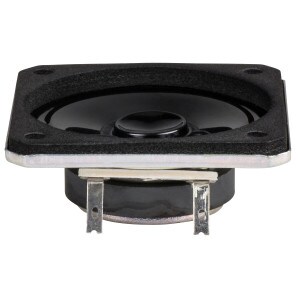

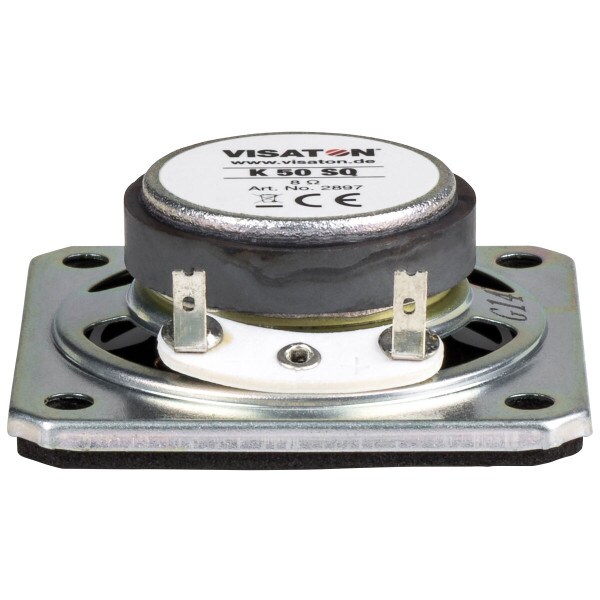

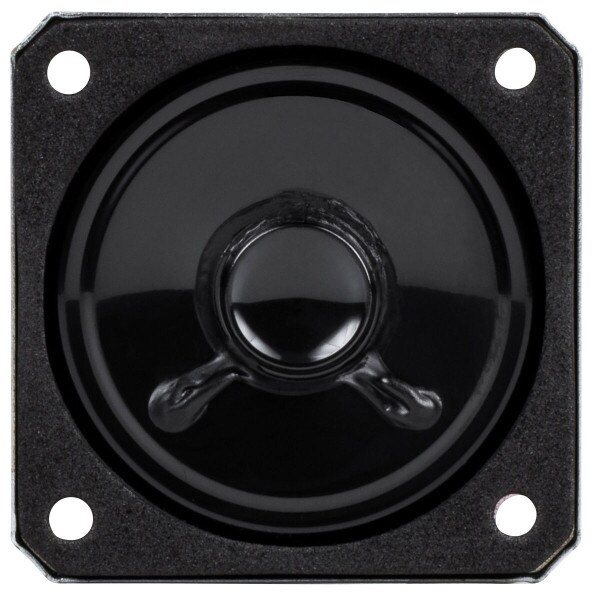

The K50 8 ohm 2" polypropylene cone full-range driver from Visaton produces natural and articulate frequency response in the vocal range, this driver is perfect for small electronic projects.
Key Features
  • 500 to 10,000 Hz frequency response designed specifically for vocal reproduction
  • Mylar cone withstands UV and moisture for use outdoors
  • Foam front gasket ensures a water tight seal to enclosures
  • Extremely uniform off axis frequency response
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $7.06
MSRP: $9.99
Save $2.93 (29%)
Bulk Pricing
Quantity:Qty: 1-9 $7.06/ea
Quantity:Qty: 10-24 $6.85/ea
Quantity:Qty: 25+$6.56/ea
Ships next business day. Details

17In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton K50 SQ 2" Speaker 8 ohm

Visaton's K50 SQ 2" full-range speaker features a unique weather and UV-resistant design. When used in a sealed enclosure, the front of this speaker conforms to the IP65/67 water resistance rating (meaning it can withstand direct moisture). The K50's specialty is vocal reproduction with great output in the 500 to 5,000 Hz range, making this the perfect driver for use in small projects designed for use outdoors.

Product Details

BrandVisaton
ModelK50
Part Number292-543
Unit of MeasureEach
Weight0.11

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter2.22
Power Handling (RMS)2 Watts
Power Handling (MAX)3 Watts
Impedance8Ω
Frequency Response250 to 10,000Hz
Sensitivity83dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)480Hz
DC Resistance (Re)7.3Ω
Mechanical Q (Qms)6.42
Electromagnetic Q (Qes)7.32
Total Q (Qts)3.42
Compliance Equivalent Volume (Vas)0.002ft³
Mechanical Compliance of Suspension (Cms)0.27mm/N
BL Product (BL)1.12T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)12.5cm²

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside DiameterSquare 2"
Baffle Cutout Diameter1.75"
Depth0.75"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3349.5Hz
