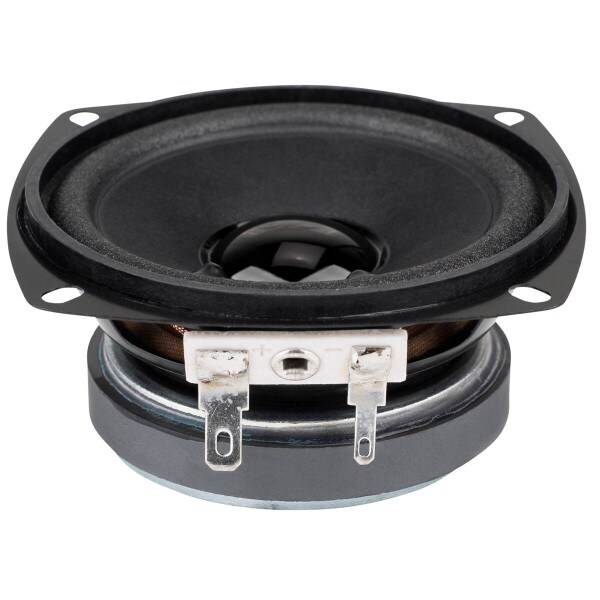

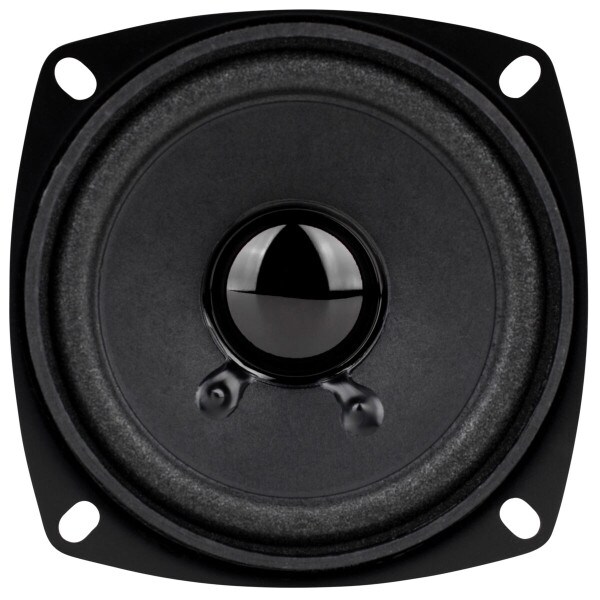

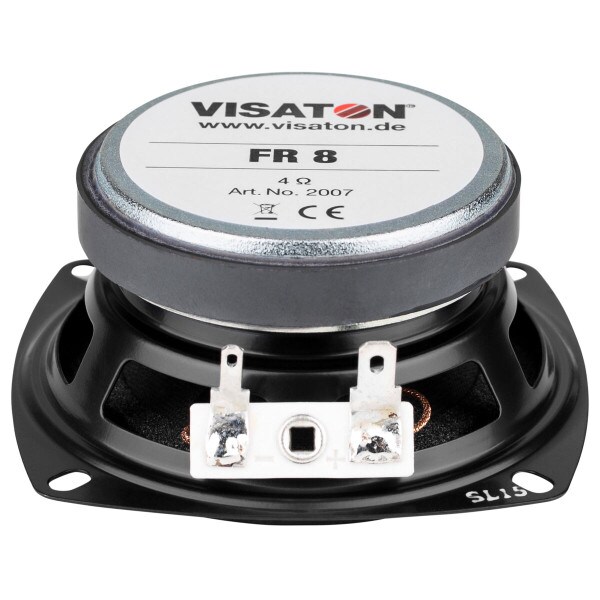

Visaton FR8 3.3" Full-Range Speaker 4 Ohm

4 Questions, 8 Answers or
Visaton
Part #292-639

Visaton FR8 3.3" Full-Range Speaker 4 Ohm

Visaton
Part #292-639
Model: FR8
4 Questions, 8 Answers or

Choose the FR 8 3.3" 4 ohm full-range speaker from Visaton for sound applications where space is critical and high fidelity, wide bandwidth output is needed. 4 ohm impedance.

Key Features
  • Water resistant paper cone with cloth surround for smooth frequency response
  • Common size stamped steel frame with front mounted cardboard gasket
  • Lightweight paper cone delivers smooth high frequency response
  • Smooth response up to 20,000 Hz with excellent dispersion
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $10.91
MSRP: $14.99
Save $4.08 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $10.91/ea
Quantity:Qty: 10-24 $10.58/ea
Quantity:Qty: 25+$10.13/ea

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR8 3.3" Full-Range Speaker 4 Ohm

Visaton's 4 ohm FR 8 3.3" paper cone HiFi full-range driver features smooth frequency response from 130 to 20,000 Hz, making it an ideal speaker for use in surround sound satellite speakers, multimedia speakers, exhibit display speakers, and even ceiling speakers for public transportation. Thanks to a water resistant paper cone, this driver is even suitable in damp and high humidity locations.

A rugged stamped-steel frame and cloth surround ensures durability and longevity. With natural full-range response and wide dispersion, the FR 8 is an incredible value. The 4-ohm impedance of the FR 8 is great for series pairs used in MTM and center channel speakers, or for use in mobile and marine audio systems.

Product Details

BrandVisaton
ModelFR8
Part Number292-639
Unit of MeasureEach
Weight0.55

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.38
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance4Ω
Frequency Response130 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.59"

Thiele-Small Parameters

Resonant Frequency (Fs)150Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)5.38
Electromagnetic Q (Qes)1.3
Total Q (Qts)1.04
Compliance Equivalent Volume (Vas)0.021ft³
Mechanical Compliance of Suspension (Cms)0.704mm/N
BL Product (BL)1.98T·m
Diaphragm Mass Inc. Airload (Mms)1.6g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)24.5cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.77" across mounting holes; 3.14"
Baffle Cutout Diameter3"
Depth1.45"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3138.2Hz
Vented Volume0.05ft³
Vented F3108.2Hz
