  • Visaton FR12-8 5" Paper Cone Low Profile Full-Range Driver 8 Ohm

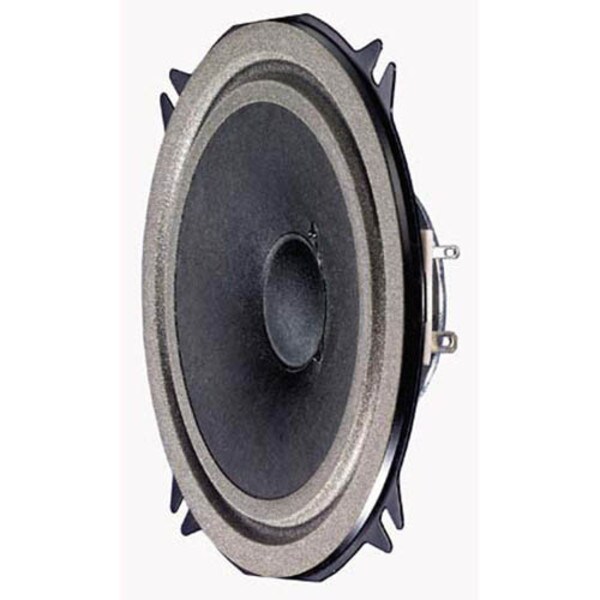

Visaton FR12-8 5" Paper Cone Low Profile Full-Range Driver 8 Ohm

Visaton
Part #292-706

Visaton FR12-8 5" Paper Cone Low Profile Full-Range Driver 8 Ohm

Visaton
Part #292-706
Model: FR12-8
The Visaton FR12-8 is a compact 5" full-range speaker system with an inverted surround, ideal for applications where space is limited.
Key Features
  • Rated power of 15W and maximum power of 40W
  • Broad frequency response of 70–18000 Hz
  • High mean sound pressure level of 85 dB
  • Compact design with an inverted cone displacement
  • Ideal for installation in cars, buses, trains, and electronic musical instruments
  • Resilient temperature range from -40 to 70°C
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $16.98
MSRP: $19.31
Save $2.33 (12%)
Bulk Pricing
Quantity:Qty: 1-9 $16.98/ea
Quantity:Qty: 10+$15.62/ea
Order in the next 9 hr 53 min to ship today. Details

23In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton FR12-8 5" Paper Cone Low Profile Full-Range Driver 8 Ohm

The Visaton FR12-8 is a 5" full-range speaker system that stands out with its compact design and inverted surround. This speaker is specifically designed to fit seamlessly into spaces where room is at a premium. Its power range between 15W and 40W, coupled with a broad frequency response of 70–18000 Hz, ensures a clear and comprehensive sound output. The speaker's high mean sound pressure level of 85 dB further guarantees a strong auditory experience. Built for durability, the FR12-8 can withstand a wide temperature range from -40 to 70°C, making it adaptable to different environments. Additionally, it comes with sturdy connections and a cutout diameter of 114 mm for easy installation.

Product Details

BrandVisaton
ModelFR12-8
Part Number292-706
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter5"
Power Handling (RMS)15 Watts
Power Handling (MAX)40 Watts
Impedance
Frequency Response70 to 18,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz

Materials of Construction

Cone MaterialPaper

Mounting Information

Overall Outside Diameter5.77"
Baffle Cutout Diameter4.49"
Depth1.22"
# Mounting Holes4
