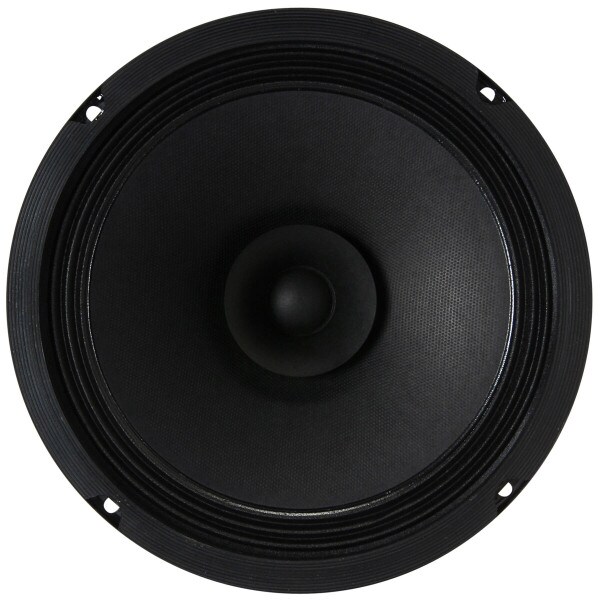

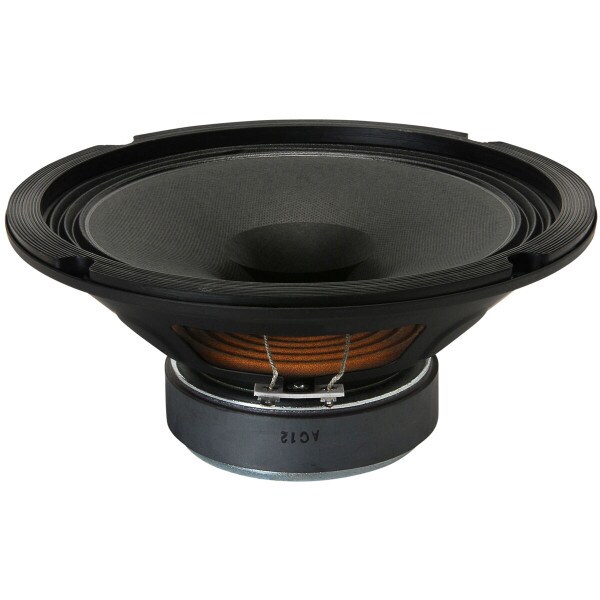

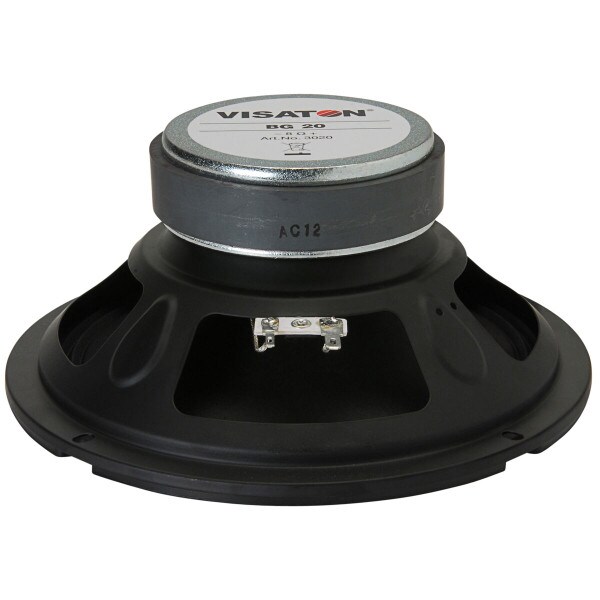

Visaton BG20-8 8" Full-Range Speaker with Whizzer Cone 8 Ohm

Visaton
Part #292-548

Visaton BG20-8 8" Full-Range Speaker with Whizzer Cone 8 Ohm

Visaton
Part #292-548
Model: BG20 - 8
Visaton's 3020 BG20 full-range 8" dual-cone speaker offers great frequency response and sensitivity. Great for point-source, single-driver speakers and 70V or 100V distributed audio systems.
Key Features
  • High output combined with wide frequency response
  • Works great in a 1.05 cubic foot enclosure tuned to 42 Hz
  • Also useful in 70V or 100V distributed audio systems with optional transformer
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $39.95
MSRP: $51.99
Save $12.04 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $39.95/ea
Quantity:Qty: 10-24 $38.76/ea
Quantity:Qty: 25+$37.10/ea
Ships next business day. Details

54In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton BG20-8 8" Full-Range Speaker with Whizzer Cone 8 Ohm

The 3020 BG20 full-range 8" speaker from Visaton is designed with a relatively flat frequency response and high output, using a paper cone with whizzer cone and cloth accordion surround. Typical applications for the BG20 include: stage monitor, 70V and 100V distributed audio systems (see Related Items for a line matching transformer), full-range open baffle speakers, or as an instrument speaker for guitars, keyboards, and organs.

Note:For great bass performance, install the BG20 into a 1.06 cubic foot cabinet tuned to 42 Hz with a 2.5" diameter port that is 5.75" long.

Product Details

BrandVisaton
ModelBG20 - 8
Part Number292-548
Unit of MeasureEach
Weight3.219

Product Specifications

Nominal Diameter8"
Power Handling (RMS)40 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response38 to 18,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)38Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)3.47
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)3.88ft³
Maximum Linear Excursion (Xmax)2mm

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth

Mounting Information

Overall Outside Diameter8.07"
Baffle Cutout Diameter7.2"
Depth3.19"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F372.4Hz
Vented Volume1.25ft³
Vented F349.8Hz
