CLEARANCE Timpano Audio TPT-T2500-10 D2 10" Cast Frame DVC Subwoofer 2 Ohms Per Coil

Timpano Audio
Part #294-4112

CLEARANCE Timpano Audio TPT-T2500-10 D2 10" Cast Frame DVC Subwoofer 2 Ohms Per Coil

Timpano Audio
Part #294-4112
Model: TPT-T2500-10 D2

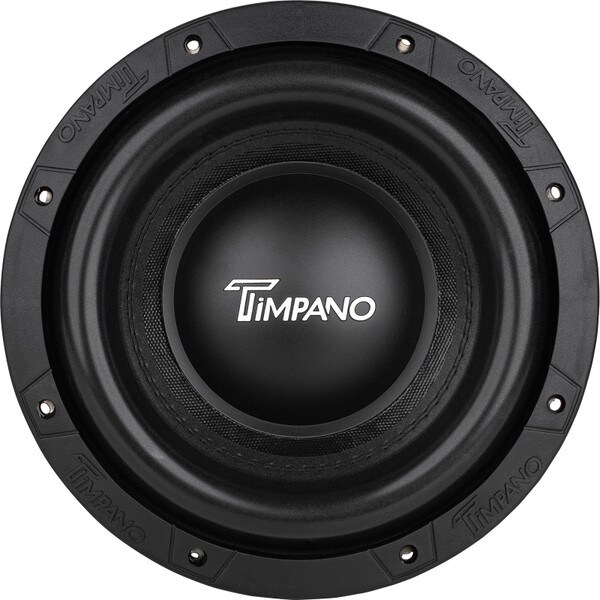

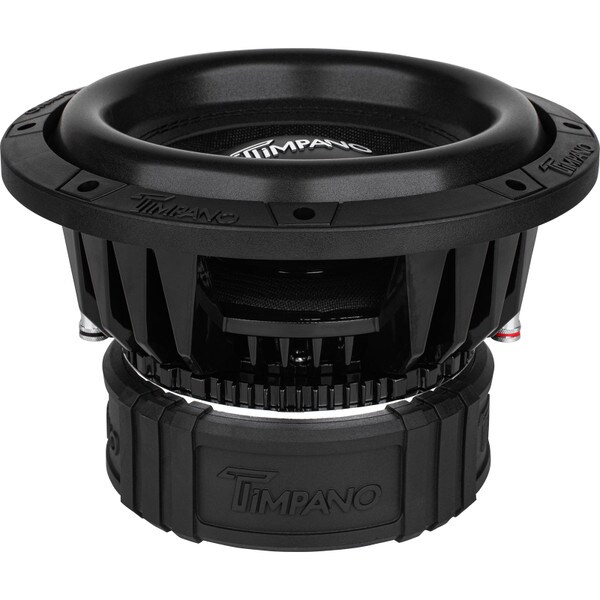

Timpano Audio's powerful TPT-T2500-10 D2 high excursion competition grade 10" subwoofer is engineered to deliver consistent performance and extreme low frequency output capability. With a rugged cast aluminum frame, 3" 4-layer voice coil, stacked magnets, high excursion suspension, and extensive venting this durable driver is ready to provide heart stopping bass. The dual 2-ohm voice coil will handle up to 1,000 watts RMS allows the TPT-T2500-10 D2 to supply incredibly high SPL output with unbeatable reliability.
Key Features
  • 23.5 mm Xmax and 1,000 watts RMS ensures high output capability for extreme SPL
  • 3" diameter American made voice coil can withstand extreme heat and abuse
  • Extensive venting rapidly dissipates excess heat for low power compression and excellent reliability
  • Double layer spider and large high roll surround allows high excursion for maximum displacement
  • Rugged cast aluminum frame and deep motor provides plenty of clearance when driven to the limit
  • Dual 2-ohm voice coil gives you the flexibility to maximize the output of most amplifiers

Overview

Timpano Audio TPT-T2500-10 D2 10" Cast Frame DVC Subwoofer 2 Ohms Per Coil

The TPT-T2500-10 D2 entry level competition grade 10" subwoofer from Timpano Audio is built for the most extreme customers and the biggest builds. Timpano's T2500 Series drivers are designed to bring the ultimate combination of performance, durability, quality and value. Featuring incredible linear excursion, with top-grade soft parts, and premium 3" voice coils on a colossal cast aluminum basket these subwoofers set new standards for value and performance.

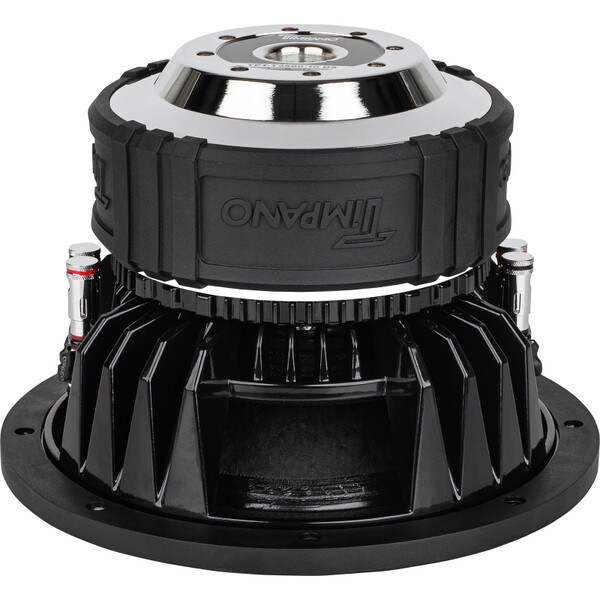

Every component used on the TPT-T2500-10 D2 was designed to deliver maximum excursion and dependable operation. The stiff reinforced non-pressed treated paper cone is held in place with dual stacked spiders and a high roll surround that is securely stitched in place. Driving the cone is a massive 3" 4-laver American made voice coil and vented aluminum former that is capable of withstanding extreme temperatures without worry of failure. A powerful double stacked magnet assembly that provides ample motor force while allowing enough clearance for the voice coil to travel 32 mm without bottoming out. Holding everything together is a heavy duty cast aluminum frame which also has ample clearance under the spider assembly. Finally, extensive venting through the frame, voice coil, pole piece, and magnetic gap keeps cool air flowing across the voice coil to dissipate heat giving the TPT-T2500-10 D2 the ability to handle up to 1,000 watts RMS (2,000 watts peak), even during long listening and demo sessions. This incredible construction makes the TPT-T2500-10 D2 an ideal choice for use in your next high SPL sound system.

Note: All parameters measured with voice coils wired in parallel for a 1 ohm load

Product Details

BrandTimpano Audio
ModelTPT-T2500-10 D2
Part Number294-4112
UPC611056239407
Unit of MeasureEach
Weight32

Product Specifications

Nominal Diameter10"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance
Frequency Response20 to 250Hz
Sensitivity92.8dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)44Hz
DC Resistance (Re)0.83Ω
Mechanical Q (Qms)9.81
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.77
Compliance Equivalent Volume (Vas)0.409ft³
BL Product (BL)7.81T·m
Maximum Linear Excursion (Xmax)23.5mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter11.02"
Baffle Cutout Diameter9.37"
Depth7"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.88ft³
Sealed F347.2Hz
Vented Volume1.5ft³
Vented F332.2Hz
