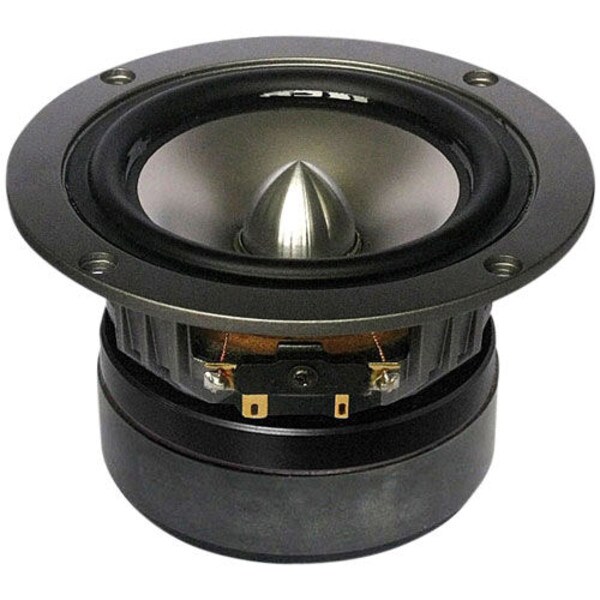

Tang Band W4-1337SDF 4" Titanium Full Range Speaker

Tang Band
Part #264-916

Tang Band W4-1337SDF 4" Titanium Full Range Speaker

Tang Band
Part #264-916
Model: W4-1337SDF
The Tang Band W4-1337SDF 4" driver achieves extended range and high efficiency, thanks in large part to its exotic titanium cone.
Key Features
  • Achieves extended range thanks in part to its exotic titanium cone
  • Offers high power handling, good mechanical excursion abilities, and strong bass performance
  • Great for home theater or hi-fi midbass applications
Your Price: $89.98
MSRP: $103.99
Save $14.01 (13%)
Bulk Pricing
Quantity:Qty: 1-3 $89.98/ea
Quantity:Qty: 4+$85.48/ea
Order in the next 1 hr 55 min to ship today. Details

86In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W4-1337SDF 4" Titanium Full Range Speaker

This high-quality full range 4" driver, the Tang Band W4-1337SDF, utilizes a unique titanium cone, solid aluminum phase plug, Santoprene rubber half-roll surround, underhung voice coil, and large ceramic ferrite motor structure. The W4-1337SDF offers high power handling, good mechanical excursion abilities, and strong bass performance for a driver of its size. Great for home theater or hi-fi midbass applications.

Product Details

BrandTang Band
ModelW4-1337SDF
Part Number264-916
UPC844632092848
Unit of MeasureEach
Weight3.65

Product Specifications

Nominal Diameter4"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Frequency Response70 to 20,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)70Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)2.04
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)0.2ft³
Mechanical Compliance of Suspension (Cms)1.21mm/N
BL Product (BL)5.32T·m
Diaphragm Mass Inc. Airload (Mms)3.99g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)57cm²

Materials of Construction

Cone MaterialTitanium
Surround MaterialSantoprene®
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.94"
Baffle Cutout Diameter3.74"
Depth3.24"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3175.8Hz
Vented Volume0.18ft³
Vented F374Hz
