Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

Tang Band
Part #264-948

Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

Tang Band
Part #264-948
Model: T1-2121SD

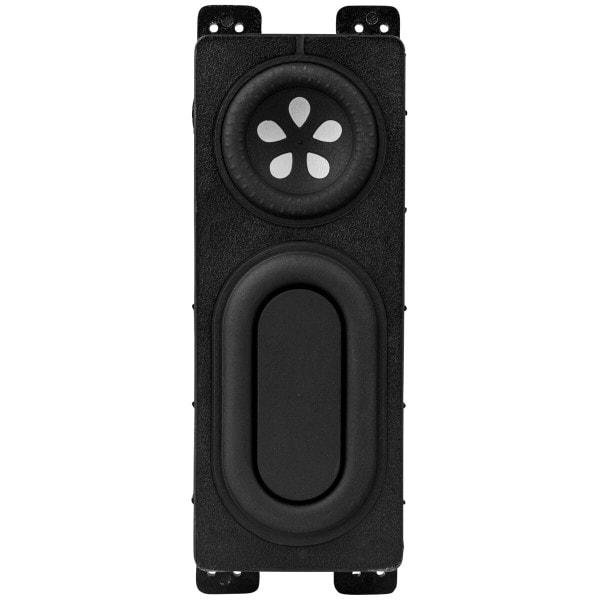

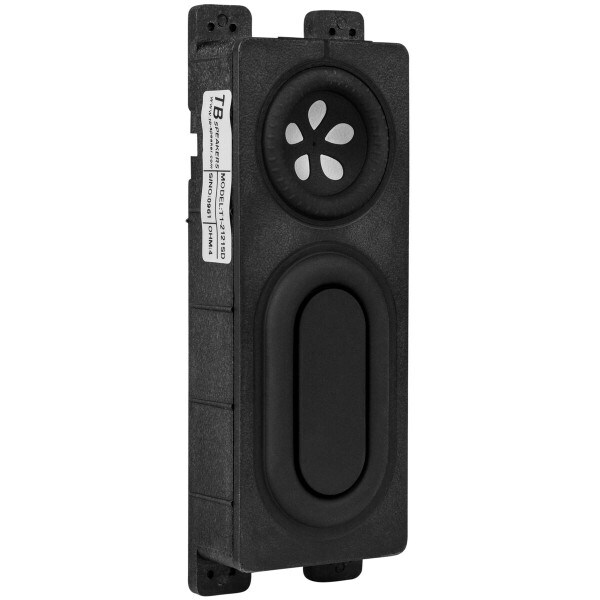

Tang Band's T1-2121SD speaker module makes designing ultra-small speaker systems easy. With a 46 mm inverted aluminum dome driver mounted in a polypropylene enclosure with a passive radiator, most of the work has been done for you.
Key Features
  • Self-contained 6.125" H x 2.125" W x 1" D design
  • Smooth response to under 100 Hz for easy transition to a subwoofer
  • Wide band response through the use of a passive radiator
  • This item available through special order only. Minimum order quantity is 50 pieces
Your Price: $42.73
+ FREE SHIPPING
MSRP: $61.99
Save $19.26 (31%)
Bulk Pricing
Quantity:Qty: 50+$42.73/ea

Out of Stock

Ships in 90-120 days, minimum order quantity 50 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

This item available through special order only. Minimum order quantity is 50 pieces

The T1-2121SD speaker module is a passive radiator assisted, aluminum composite 46 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems where small size is of utmost importance. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

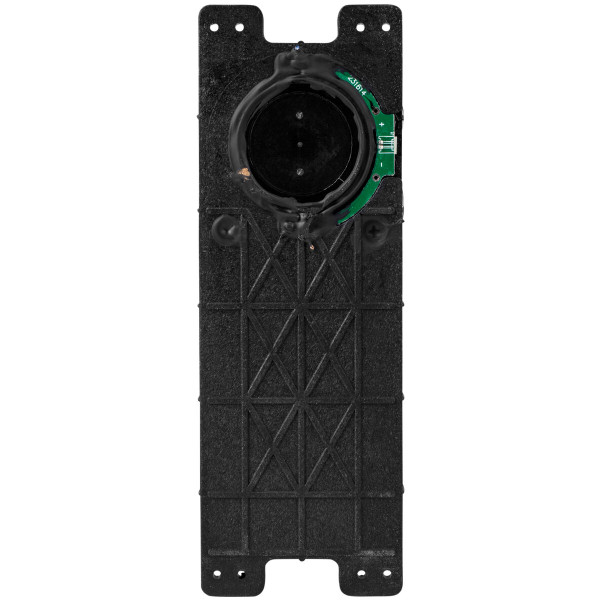

Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-2121SD to facilitate mounting. For custom applications, two polarity-indicated solder points are built onto the driver PCB.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 87 Hz high pass filter for the best possible sound. Higher power handling and output (SPL) is possible using multiple modules.

Product Details

BrandTang Band
ModelT1-2121SD
Part Number264-948
UPC848864043753
Unit of MeasureEach
Weight0.45

Product Specifications

Power Handling (RMS)6 Watts
Power Handling (MAX)12 Watts
Impedance4Ω
Frequency Response78 to 20,000Hz
Sensitivity79dB 2.83V/1m
Voice Coil Diameter1.1"

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.43" (With mounting tabs: 6.18) x 2.16"
Depth1"
