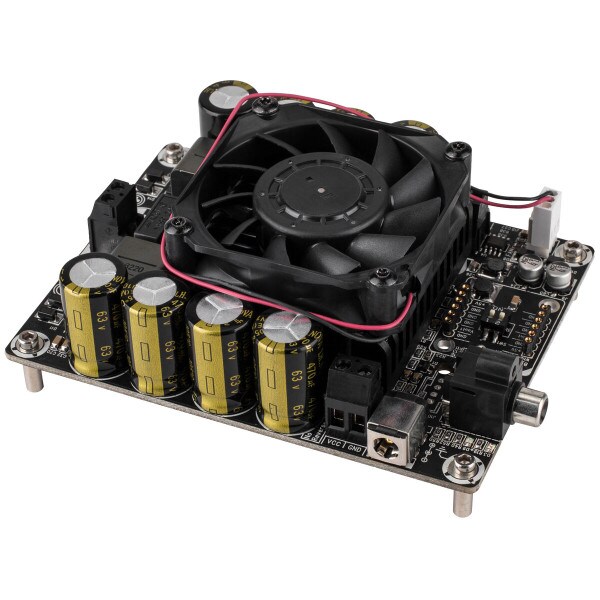

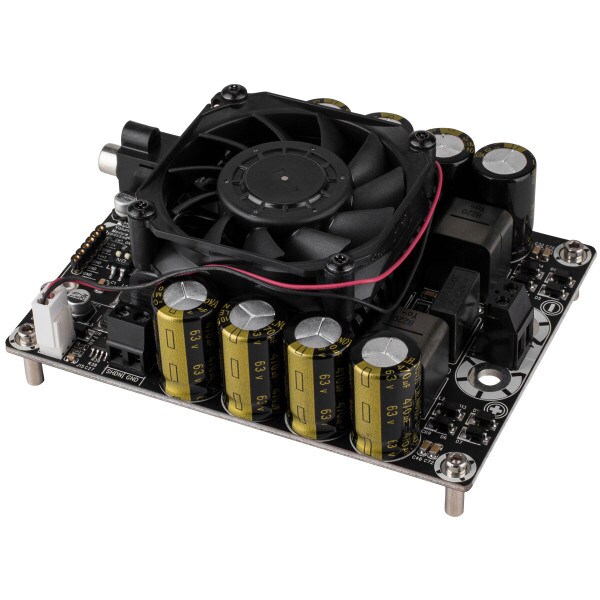

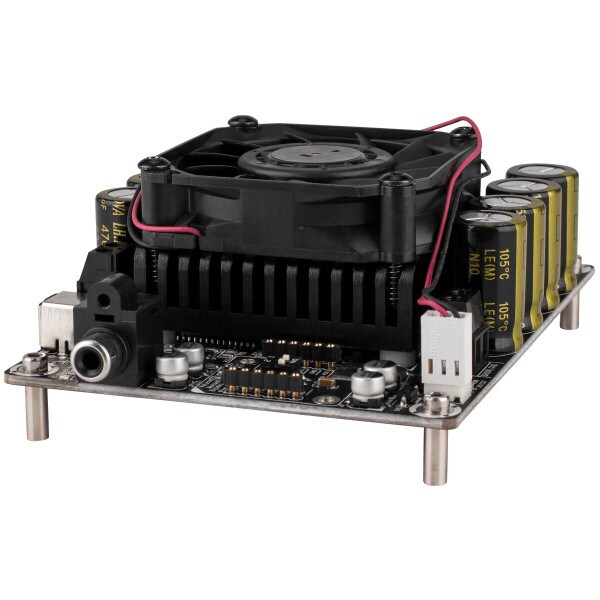

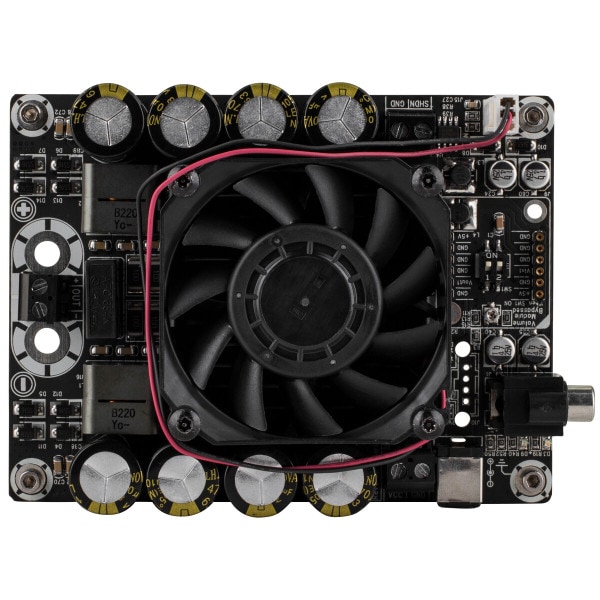

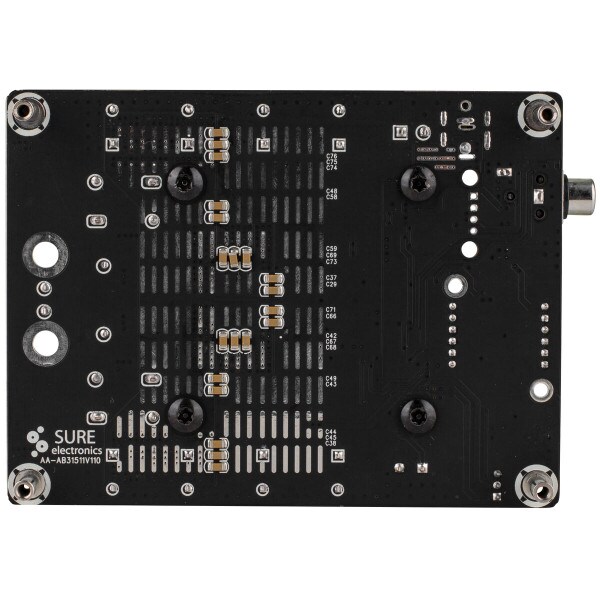

Sure Electronics AA-AB31511 1x500W Class D Audio Amplifier Board Compact - T-Amp

Sure Electronics
Part #320-3363

Sure Electronics AA-AB31511 1x500W Class D Audio Amplifier Board Compact - T-Amp

Sure Electronics
Part #320-3363
Model: AA-AB31511
Design your own powered subwoofer, powered speaker or subwoofer audio amplifier with Sure's 500 watt mono amp board. It's small in size, but ready to handle power demanding subwoofers or other active speaker projects.
Key Features
  • Temperature controlled cooling fan
  • Over-engineered protection circuits
  • Versatile 2-ohm stability
  • Perfect size for use as a subwoofer amplifier for home or vehicle
  • Up to 400W of Class-D clean power
  • Requires 15 to 50 VDC power supply
  • 4-screw in standoffs for easy installation
Your Price: $62.98
Bulk Pricing
Quantity:Qty: 1-3 $62.98/ea
Quantity:Qty: 4-49 $60.88/ea
Quantity:Qty: 50+$58.78/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sure Electronics AA-AB31511 1x500W Class D Audio Amplifier Board Compact - T-Amp

This mid power mono amplifier board means serious business! This audio amplifier board cranks out 500 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for a subwoofer amp for your home or vehicle.

Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has a 31 dB fixed gain setting or you can use Sure's plug in volume control option. A 15 to 50 VDC power supply is required.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Specifications:
• Power output (w/ 50 VDC power supply): 500W x 1 (3 ohms, THD 10%), 350W x 1 (3 ohms, THD 1%)
• Minimum impedance: 2 ohms
• Frequency response: 20 to 20,000 Hz (±3 dB)
• SNR: 95 dB (350W @ 3? THD+N 1%)
• Recommended power supply: 15 to 50 VDC, 10.8A regulated
• Fixed gain settings: 31 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions without RCA jack: 4.8" L x 3.6" W x 1.5" H

Product Details

BrandSure Electronics
ModelAA-AB31511
Part Number320-3363
Unit of MeasureEach
Weight0.94

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)251 - 500 Watts
