BUYOUT Sharp 1208PB038A Speaker 8 Ohm

Factory Buyouts
Part #299-4131
Model: 1208PB038A
Read 1 Review or

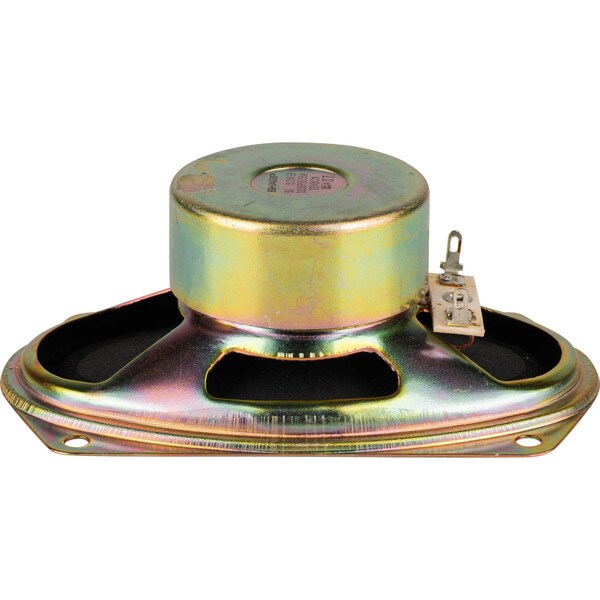

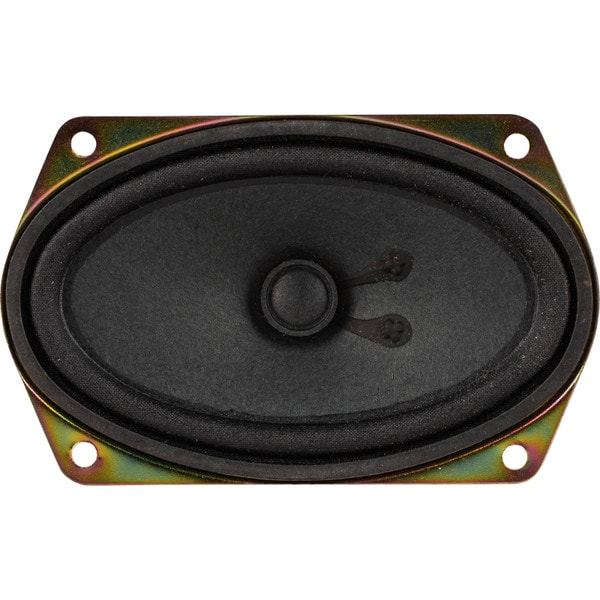

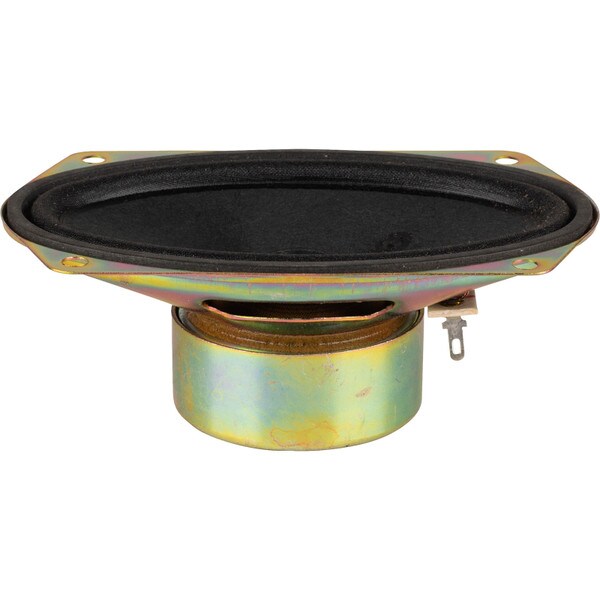

The Sharp 1208PB038A 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 130 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • High efficiency to deliver high output with little input power
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Ships next business day. Details

3723In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sharp 1208PB038A Speaker 8 Ohm

The Sharp 1208PB038A 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. With over 86 dB efficiency, this driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
Model1208PB038A
Part Number299-4131
UPC848864072128
Unit of MeasureEach
Weight0.68

Product Specifications

Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance8Ω
Frequency Response130-15,000Hz
Sensitivity85.5dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)136.7Hz
DC Resistance (Re)7.173Ω
Voice Coil Inductance (Le)0.1709mH
Mechanical Q (Qms)6.522
Electromagnetic Q (Qes)2.12
Total Q (Qts)1.6
Compliance Equivalent Volume (Vas)0.067ft³
Diaphragm Mass Inc. Airload (Mms)1.95g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)44.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth1.75"
# Mounting Holes4
