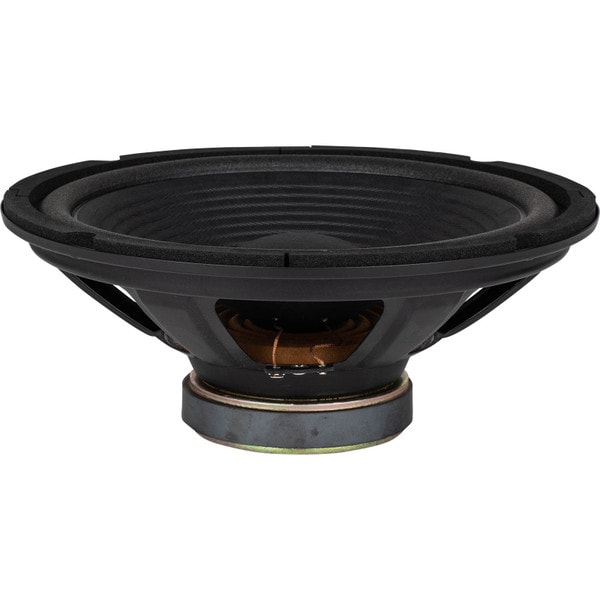

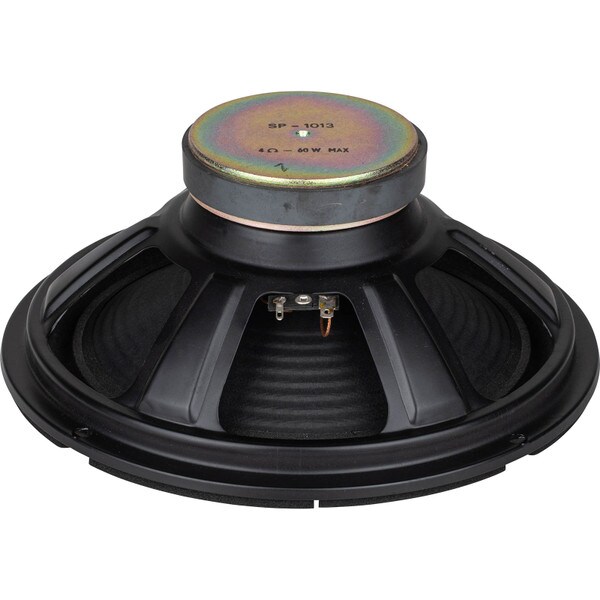

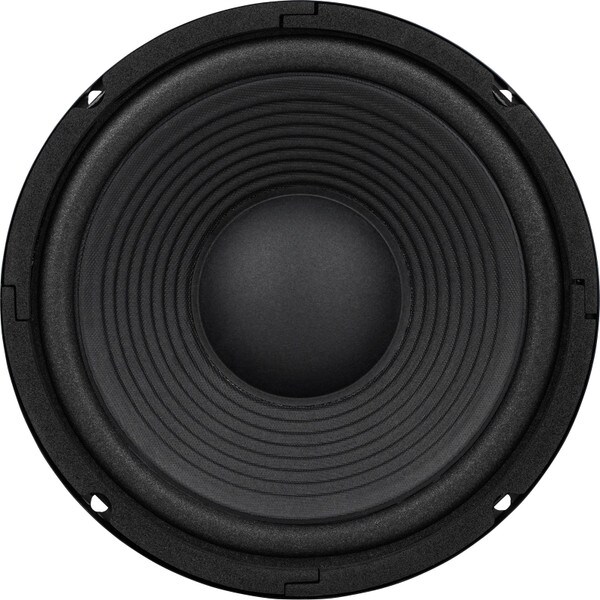

BUYOUT SP1013 10" Paper Cone Foam Surround Woofer 4 Ohm

Factory Buyouts
Part #299-4196

BUYOUT SP1013 10" Paper Cone Foam Surround Woofer 4 Ohm

Factory Buyouts
Part #299-4196
Model: SP1013
The SP1013 10" Paper Cone Foam Surround Woofer is a quality replacement, upgrade or inexpensive alternative for your next custom speaker project.
Key Features
  • Classic ribbed paper cone for smooth, uncolored bass
  • Long-throw voice coil allows for over 2.7mm of one-way linear Xmax
  • Large 1.25" diameter, 2-layer voice coil for 30W RMS power handling
BUYOUT $14.88
Bulk Pricing
Order in the next 19 hr 33 min to ship today. Details

218In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

SP1013 10" Paper Cone Foam Surround Woofer 4 Ohm

The SP1013 10" Paper Cone Foam Surround Woofer is a quality replacement, upgrade or inexpensive alternative for your next custom speaker project. The ribbed paper cone is exceptionally rigid yet light weight, while the oversize spider and long, 2-layer voice coil keep things moving smoothly.

A foam surround helps eliminate unwanted resonances and keeps excursion clean, while a sturdy 6-spoke steel frame holds everything together. This woofer is ideally suited for sealed enclosures.

Product Details

BrandFactory Buyouts
ModelSP1013
Part Number299-4196
UPC848864073453
Unit of MeasureEach
Weight2.6

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.625
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance4Ω
Frequency Response30 to 2,000Hz
Sensitivity86.47dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)33.92Hz
DC Resistance (Re)3.642Ω
Voice Coil Inductance (Le)0.2647mH
Mechanical Q (Qms)3.622
Electromagnetic Q (Qes)1.94
Total Q (Qts)1.264
Compliance Equivalent Volume (Vas)5.035ft³
Diaphragm Mass Inc. Airload (Mms)26.02g
Maximum Linear Excursion (Xmax)2.4mm
Surface Area of Cone (Sd)336.5cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10"
Baffle Cutout Diameter9.1875"
Depth4"
# Mounting Holes4
