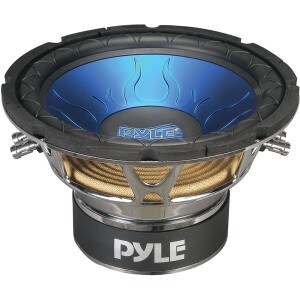

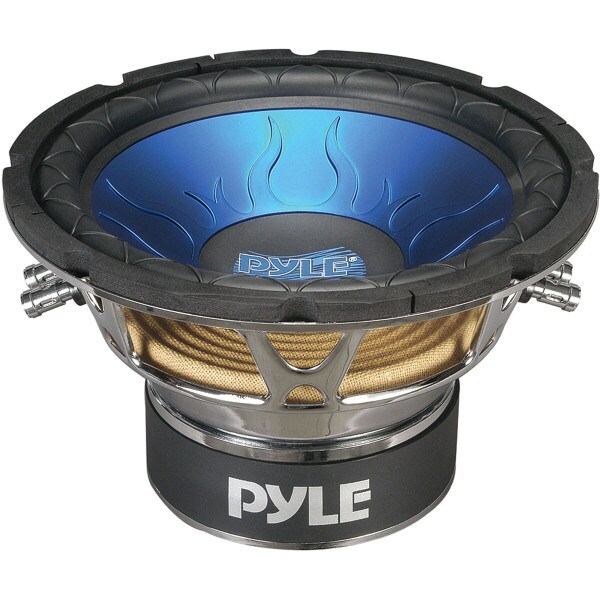

Pyle PL1090BL 10" Blue Label DVC Subwoofer

Pyle Audio
Part #292-135

Pyle PL1090BL 10" Blue Label DVC Subwoofer

Pyle Audio
Part #292-135
Model: PL1090BL
The Pyle Blue Label series subwoofers offer many features that would be found on drivers costing many times more, such as high power handling, large magnet structure, large voice coils, vented pole piece, butyl rubber surround, and silver plated terminals.
Key Features
  • Blue injection molded cone with specially treated rubber edge suspension
  • Blue chrome steel basket with silver plated terminal
  • Bumped & vented pole piece with high temperature dual Kapton voice coils
  • Flat progressive spider
  • Large magnet structure with rubber boot
  • 2" voice coils
  • One-year manufacturer's warranty
Your Price: $53.98
MSRP: $117.99
Save $64.01 (54%)
Bulk Pricing
Ships next business day. Details

Only 1 In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Pyle PL1090BL 10" Blue Label DVC Subwoofer

The Pyle Blue Label series subwoofers offer many features that would be found on drivers costing many times more, such as high power handling, large magnet structure, large voice coils, vented pole piece, butyl rubber surround, and silver plated terminals.

Product Details

BrandPyle Audio
ModelPL1090BL
Part Number292-135
UPC068888725422
Unit of MeasureEach
Weight13.5801

Product Specifications

Nominal Diameter10"
Power Handling (RMS)200 Watts
Power Handling (MAX)1000 Watts
Impedance
Sensitivity83.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)26.9Hz
Mechanical Q (Qms)5.23
Electromagnetic Q (Qes)0.89
Total Q (Qts)0.76
Compliance Equivalent Volume (Vas)2.39ft³

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.16"
Baffle Cutout Diameter9.69"
Depth6.8"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F340Hz
Vented Volume1.3ft³
Vented F332.4Hz
