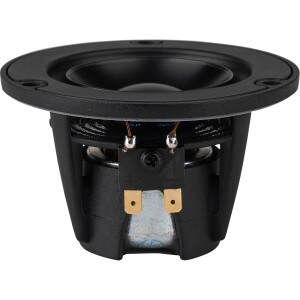

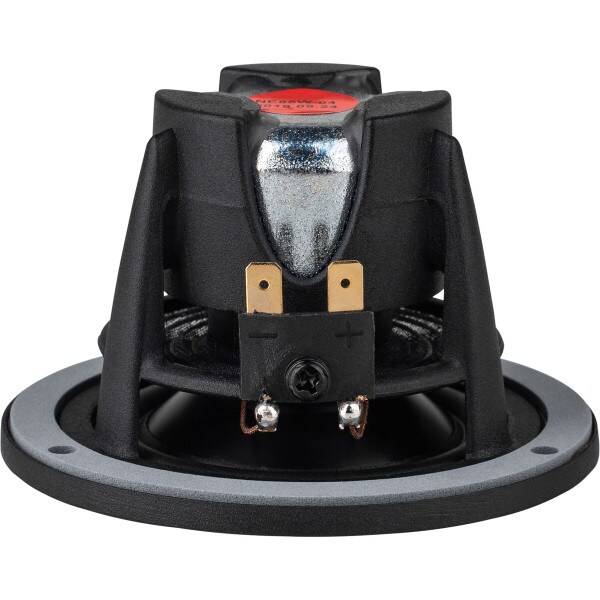

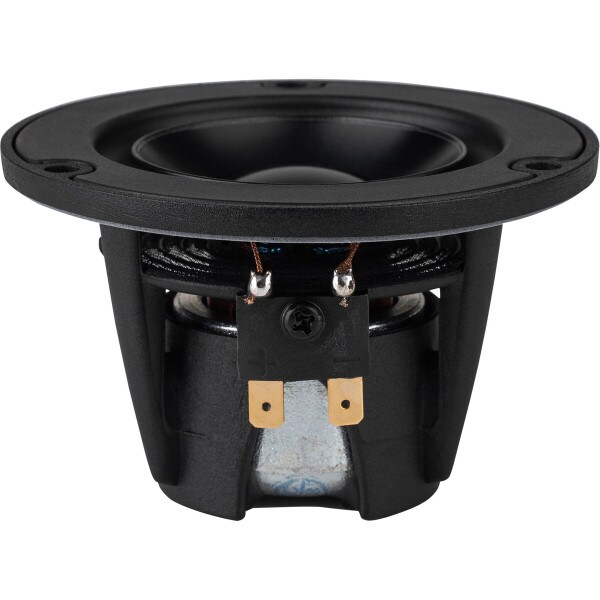

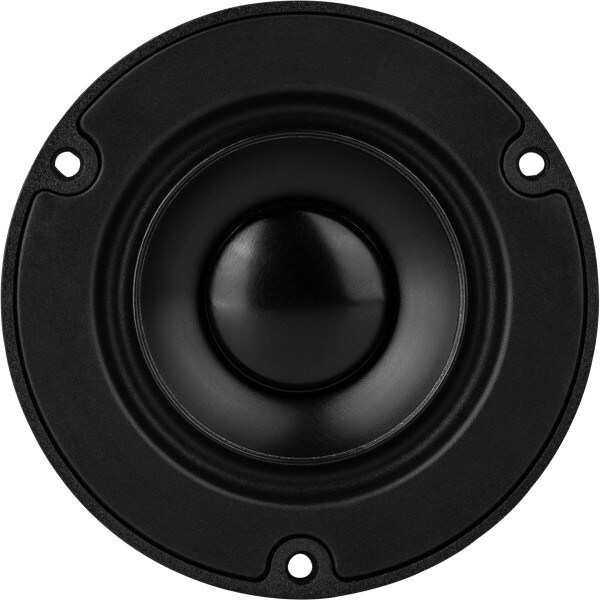

Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

Peerless by Tymphany
Part #264-1052

Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

Peerless by Tymphany
Part #264-1052
Model: NE85W-04
Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.
Key Features
  • Cast aluminum frame acts as a heatsink
  • Sculpted design promotes cooling and reduces reflections
  • High-strength compact neodymium motor
  • Aluminum cone with half-roll rubber surround
  • Long-throw voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 4 ohm nominal impedance
Your Price: $49.98
+ FREE SHIPPING
MSRP: $52.99
Save $3.01 (6%)
Bulk Pricing
Quantity:Qty: 1-3 $49.98/ea
Quantity:Qty: 4+$47.98/ea

Back-Ordered

Estimated back in stock 8/7/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink. The cone is aluminum, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to the motor's copper cap, which reduces inductance and extends high frequency performance.

Product Details

BrandPeerless by Tymphany
ModelNE85W-04
Part Number264-1052
UPC844632083877
Unit of MeasureEach
Weight0.5

Product Specifications

Nominal Diameter2-1/2"
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity82.7dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)105Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)8.5
Electromagnetic Q (Qes)0.69
Total Q (Qts)0.64
Compliance Equivalent Volume (Vas)0.03ft³
Mechanical Compliance of Suspension (Cms)1.07mm/N
BL Product (BL)2.75T·m
Diaphragm Mass Inc. Airload (Mms)2.16g
Maximum Linear Excursion (Xmax)1.75mm
Surface Area of Cone (Sd)22.1cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.35"
Baffle Cutout Diameter2.25"
Depth2.02"
# Mounting Holes3

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3131.6Hz
Vented Volume0.06ft³
Vented F381.5Hz
