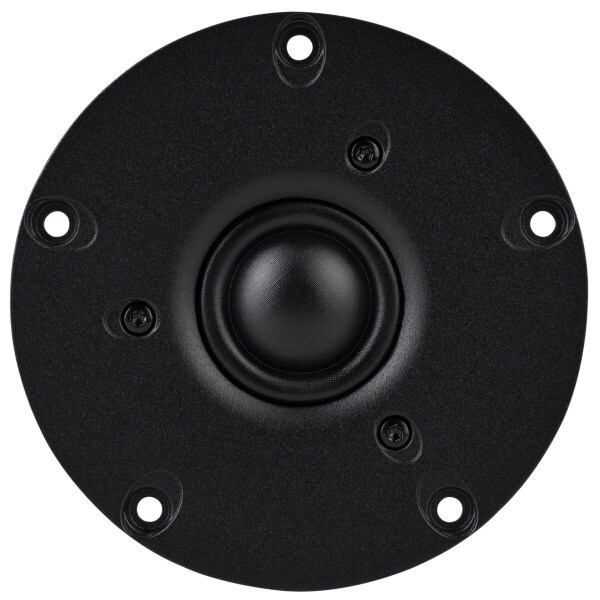

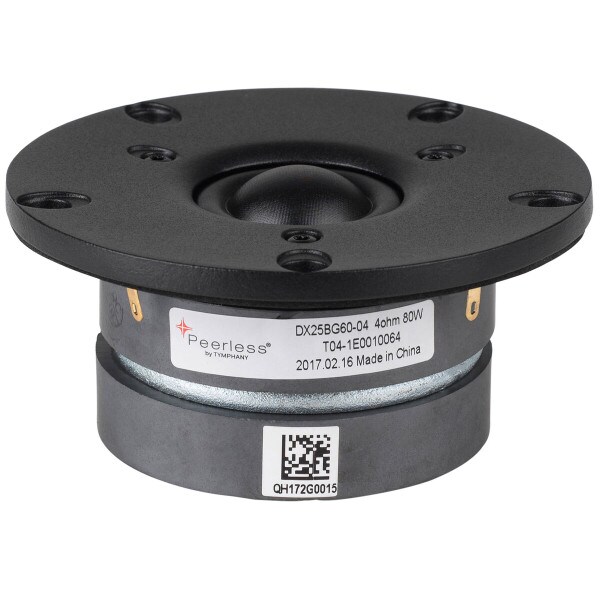

CLEARANCE Peerless DX25BG60-04 1" Silk Dome Tweeter 4 Ohm

CLEARANCE Peerless DX25BG60-04 1" Silk Dome Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1478
Model: DX25BG60-04
With an incredibly low Fs of 415 Hz, high power handling, and smooth response, the Peerless DX25BG60-04 will provide fantastic performance for its price. Capable of handling extremely low crossover points, this tweeter will be right at home in 2-way reference designs.
Key Features
  • Smooth on and off axis response with low Fs simplifies crossover design
  • Ferro fluid and a large ferrite magnet improves heat dissipation for high power handling
  • Thick aluminum faceplate provides a solid, non-resonant mounting structure
  • Bucking magnet concentrates magnetic field on the vice coil for more control

Overview

Peerless DX25BG60-04 1" Silk Dome Tweeter 4 Ohm

For 2-way designs with low crossover frequencies, the Peerless DX25BG60-04 1" soft dome tweeter will deliver exceptional performance. The DX25BG uses a large roll surround, silk dome, and Ferrofluid damping combined with a deep resonant chamber to achieve an extremely low Fs of 415 Hz allowing this tweeter to handle the lowest crossover frequencies. For a rigid, non-resonant mount, this tweeter uses a thick aluminum faceplate.

Product Details

BrandPeerless by Tymphany
ModelDX25BG60-04
Part Number264-1478
UPC848864044989
Unit of MeasureEach
Weight1.7

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter2.83
Tweeter TypeSoft Dome
Power Handling (RMS)80 Watts
Impedance
Frequency Response2,500 to 20,000Hz
Sensitivity93.99dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)415.36Hz
DC Resistance (Re)3.47Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)1.4
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.35

Mounting Information

Overall Outside Diameter4.1"
Depth2.4"
