  • Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

CLEARANCE Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1040

CLEARANCE Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1040
Model: BC25TG15-04
The BC25SG15-04 1" dome tweeter from Tymphany can meet the most demanding requirements for audio excellence.
Key Features
  • Sculpted, recessed-loaded round 4-hole faceplate
  • Smooth, extended response and high efficiency
  • 1" textile dome
  • Ferrofluid cooled voice coil
60 Day No Hassle Return Policy

Overview

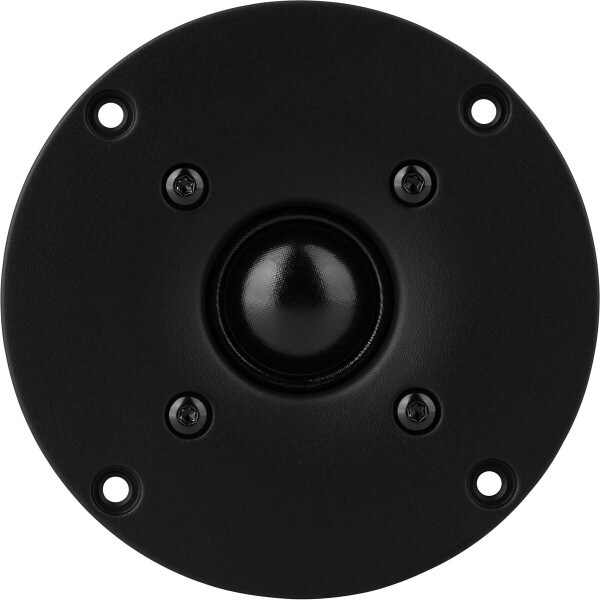

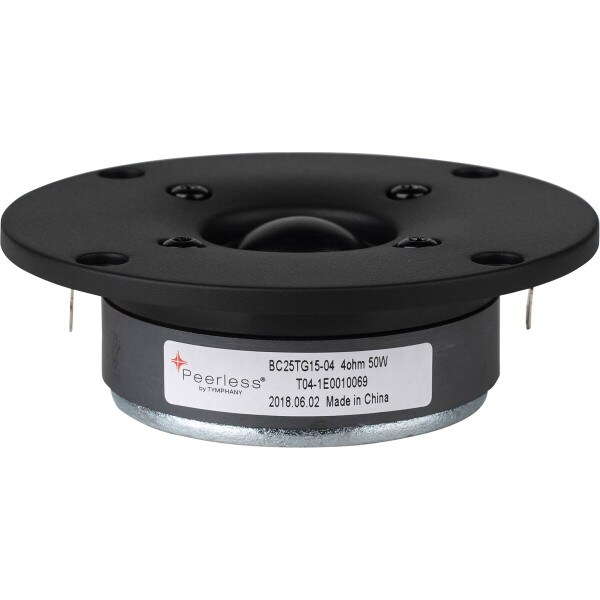

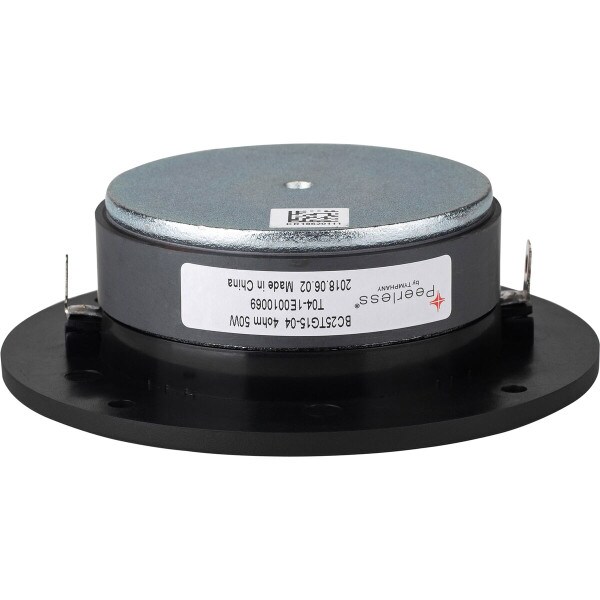

Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

Designed by Tymphany's experienced team of engineers, the BC25TG15-04 1" dome tweeter can meet the most demanding requirements for audio excellence. The tweeter features a textile diaphragm, high-energy ceramic ferrite magnet, and sculpted plastic faceplate. Ferrofluid in the magnetic gap improves driver cooling.

Product Details

BrandPeerless by Tymphany
ModelBC25TG15-04
Part Number264-1040
UPC844632083815
Unit of MeasureEach
Weight1.2

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter3.00
Tweeter TypeSoft Dome
Power Handling (RMS)50 Watts
Impedance4Ω
Frequency Response1,100 to 20,000Hz
Sensitivity93.2dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1128Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)2.54
Electromagnetic Q (Qes)1.26
Total Q (Qts)0.84

Mounting Information

Overall Outside Diameter4.13"
Depth1.25"

Specifications
