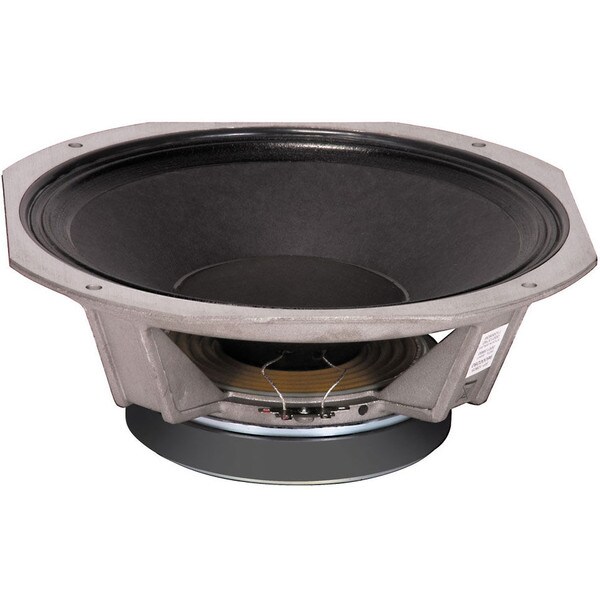

Peavey Scorpion SP-12825 12" Speaker Driver

Name: Peavey Scorpion SP-12825 12" Speaker Driver
Brand: Peavey
SKU: 294-3118
Price: 149.99 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

Read 4 Reviews | 12 Questions, 28 Answers or

Peavey

Part #294-3118

Peavey Scorpion SP-12825 12" Speaker Driver

Peavey

Part #294-3118

Model: SP-12825

Read 4 Reviews | 12 Questions, 28 Answers or

The Scorpion® 12" is a great upgrade from common stamped-frame speakers and features Peavey power and performance, along with their famous replaceable basket design.

See all items in Pro Woofers, Subwoofers & Midrange Speakers

Your Price: $149.99

+ FREE SHIPPING

Bulk Pricing

Back-Ordered

Get Notified When Available

We'll send you an email when Peavey Scorpion SP-12825 12" Speaker Driver is back in stock or available for preorder.

Estimated back in stock 7/17/2024

Alert Me When Available

Qty Quantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Frequently Bought Together

This Product: Peavey Scorpion SP-12825 12" Speaker Driver	$149.99
Audtek 16 AWG OFC Speaker Wire 50 ft.	$18.95
Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller	$48.98
Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material	$14.98

Total Price: $232.90

This Product:Peavey Scorpion SP-12825 12" Speaker Driver$149.99

Audtek 16 AWG OFC Speaker Wire 50 ft.$18.95

Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller$48.98

Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material$14.98

4 ItemsTotal Price: $232.90

Overview

Peavey Scorpion SP-12825 12" Speaker Driver

The Scorpion® 12" is a great upgrade from common stamped-frame speakers and features Peavey power and performance, along with their famous replaceable basket design. This wide-range woofer can be found pumping out the sound in many popular Peavey speaker systems. Peavey item 00013740.

Product Details
Brand	Peavey
Model	SP-12825
Part Number	294-3118
UPC	014367000238
Unit of Measure	Each
Weight	14.35

Product Specifications
Nominal Diameter	12"
Power Handling (RMS)	200 Watts
Power Handling (MAX)	800 Watts
Impedance	8Ω
Frequency Response	60 to 4,000Hz
Sensitivity	98.7dB 2.83V/1m
Voice Coil Diameter	2.5"

Thiele-Small Parameters
Resonant Frequency (Fs)	77.5Hz
DC Resistance (Re)	5.7Ω
Voice Coil Inductance (Le)	0.35mH
Mechanical Q (Qms)	6.58
Electromagnetic Q (Qes)	0.43
Total Q (Qts)	0.4
Compliance Equivalent Volume (Vas)	1.58ft³
Mechanical Compliance of Suspension (Cms)	0.13mm/N
BL Product (BL)	14.66T·m
Diaphragm Mass Inc. Airload (Mms)	33.4g
Maximum Linear Excursion (Xmax)	0.25mm
Surface Area of Cone (Sd)	500cm²

Materials of Construction
Cone Material	Paper / Kevlar
Voice Coil Wire Material	Aluminum
Voice Coil Former	Kapton® / Polyimide
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
# Mounting Holes	4

Parts Express Staff Recommended Enclosure Volume
Vented Volume	1.5ft³
Vented F3	78.3Hz
