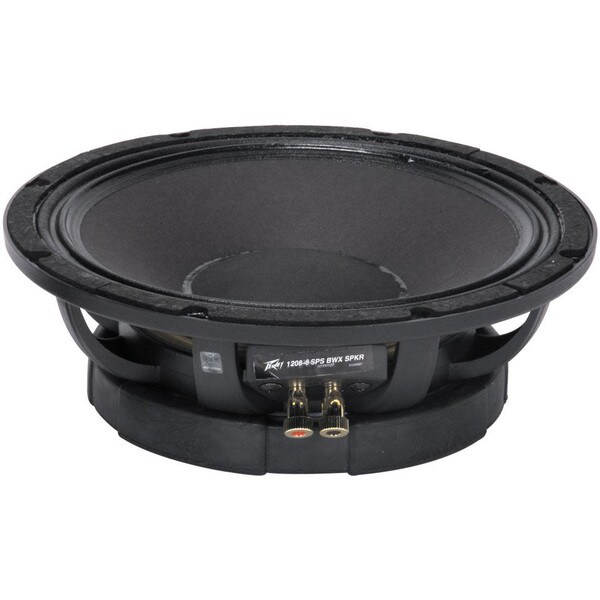

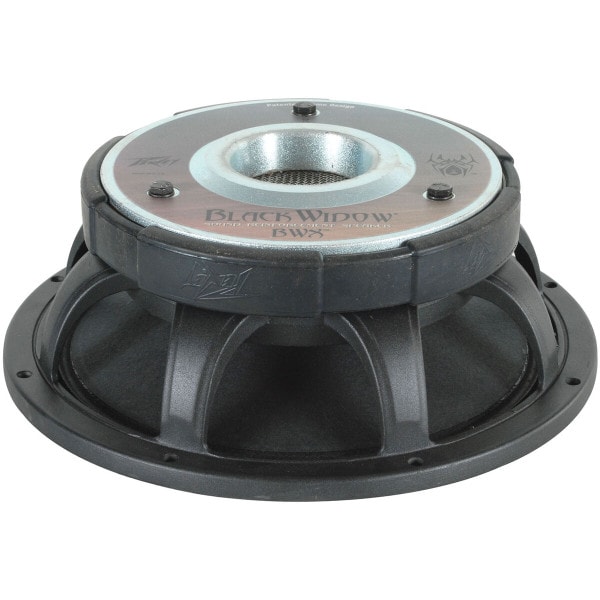

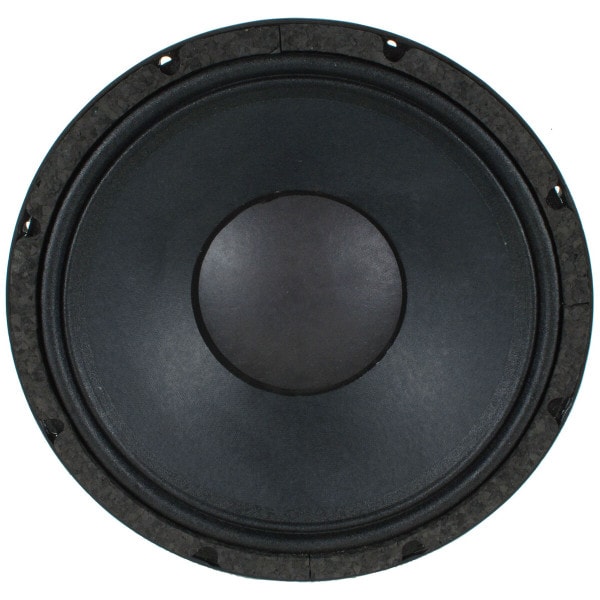

Peavey 1208-8 SPS BWX 12" Woofer

Peavey
Part #294-315

Peavey 1208-8 SPS BWX 12" Woofer

Peavey
Part #294-315
Model: 1208-8 SPS BWX
The 1208-8 SPS BWX™ boasts high excursion capability while still maintaining high efficiency and extended midrange response.
Key Features
  • Field-replaceable basket
  • Kevlar&#174 reinforced cones for increased strength
  • Polyimide-impregnated fiberglass former for higher sensitivity and frequency response
  • Die-cast aluminum frame
  • High power handling
  • 4" diameter edge-wound aluminum ribbon wire voice coil
  • Solderless diffusion welded OFHC copper leads
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $189.99
+ FREE SHIPPING
Bulk Pricing
Order in the next 6 hr 34 min to ship today. Details

Only 4 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peavey 1208-8 SPS BWX 12" Woofer

The 1208-8 SPS BWX™ boasts high excursion capability while still maintaining high efficiency and extended midrange response. Great for compact 2-way applications or as a midbass element in multi-way systems. Peavey item 00560760.

Product Details

BrandPeavey
Model1208-8 SPS BWX
Part Number294-315
Unit of MeasureEach
Weight19

Product Specifications

Nominal Diameter12"
Power Handling (RMS)500 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response50 to 3,500Hz
Sensitivity96.9dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)56.1Hz
DC Resistance (Re)5.43Ω
Voice Coil Inductance (Le)0.36mH
Mechanical Q (Qms)9.51
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)1.93ft³
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)15.13T·m
Maximum Linear Excursion (Xmax)4.7mm
Surface Area of Cone (Sd)520cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.25"
Baffle Cutout Diameter10.94"
Depth3.53"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F3112Hz
Vented Volume1.85ft³
Vented F360Hz
